Coventional Fire Alarm Control Panel Introduction:
1.AW-CFP2166 series conventional fire alarm panel is designed based on EN54
part 2&4 standard.
2.It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3.It has 2 level control mode by a lock
4.It has 24VDC and 5VDC power supply output.
5.It has FIRE and FAULT signal output.
6.It has 2 general sounders output.
7.Each zone has 1 circuit detectors input .
8.Each zone can be disable by a button.
9.It has RESET button to reset the panel.
10. It has SILENCE button to stop BUZZER and SOUNDERS.
11.It has EVACUATE button to start a manual fire alarm immediately.
12.It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
13.It has an optional GSM module for fire alarm by SMS .
14.It is economic, user-friendly and easy maintenance.
| Model | AW-CFP2166 1 to 32zones |
| Mains Voltage | 110VAC or 240VAC |
| Internal power supply | 27.2VDC |
| Batteries | 12V2AH*2 |
| Zone Capacity | 20pcs detector |
| Sounder outputs | 500mA F 20mm |
| Battery fuse | 1.5A F 20mm |
8 zone fire alarm control panel wire drawing detailed show
1.AW-CFP2166 8 zone conventional fire alarm panel for building project wire drawing is for reference . Fire alarm control panels are designed to fulfil the requirements of EN54 parts 2 & 4 as well as being easy to install, operate and maintain. Being of modular construction,
2.the basic fire panel has 1 zone capacity, expandable to 2,4,8,10,12,14,16, 20 , 24 ,28,30 and 32 zones. The Premier M Plus is suitable for surface mounting or semi-flush fitting (with just the door protruding.

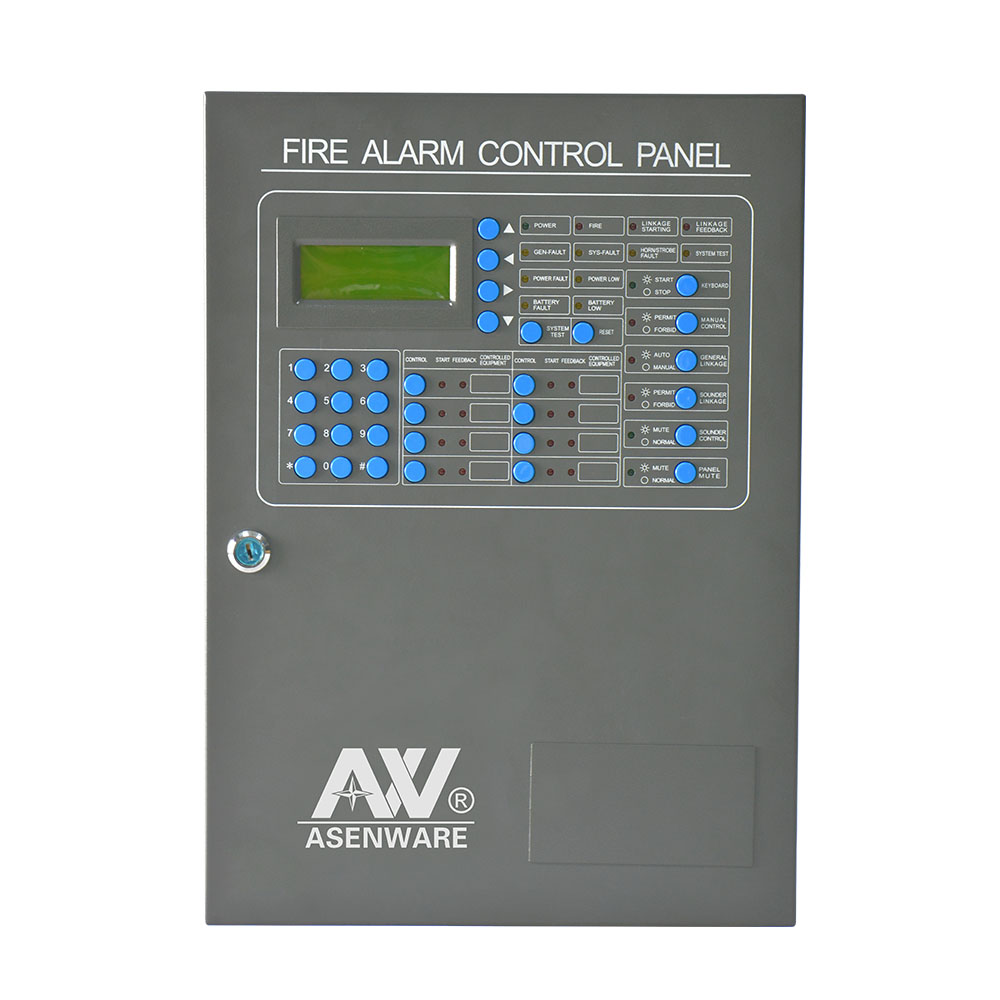

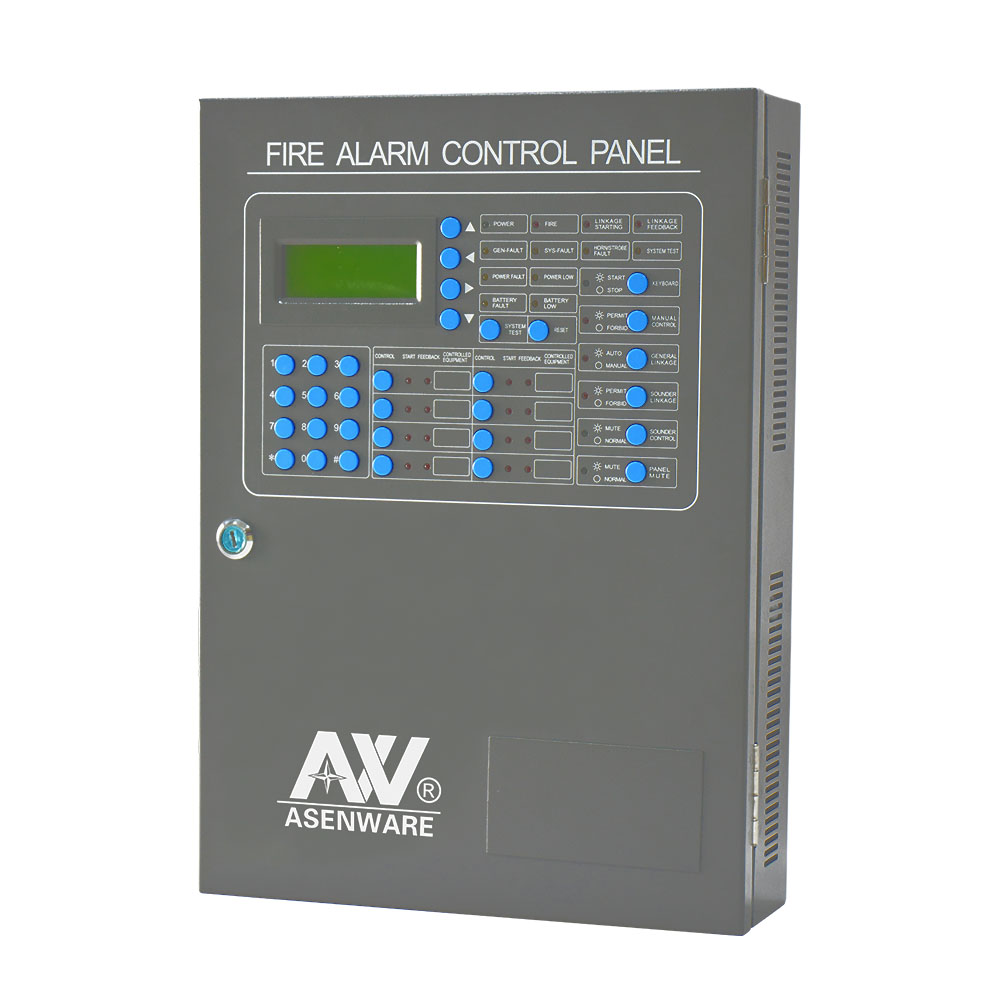

The detail picture conventional fire alarm alarm panel 8 zone detailed show
Conventional system 8 zone fire alarm control panel operate parameters
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) |
| Detector continuity diodes | Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault) |
| Call point resistor value | 470 to 680 Ω, 0.225 or 0.5 watt |
| Maximum number of smoke/heat detectors per zone | 20 (based on a total detector current of 2mA, each detector consuming 100μ A).Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts. |
| Maximum number of manual call points per zone | No limit |
| Line fault monitor for detector | Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor |
| Line fault monitor for open circuit | Yes |
| Line fault monitor for short circuit | Yes |
Fire alarm panel packaging and shipping detail
Packaging : Use carton to pack 8 zone fire alarm control panel well .
Shpping :UPS FEDEX EMS DHL negotiable for shpping fire alarm control panel
Our services
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
1.Asenware was set up in 2006, and is a technology oriented company that devotes to NDT (Non Destructive Test) and BAC (Building Automatic Control) industries
2. We have an experienced R&D team to design special testing items or automatic control products
3. We have two factories: one factory is in Shenzhen for BMS products, and the other one is in Dandong for NDT X-ray products
Fire alarm control panel FAQ
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
