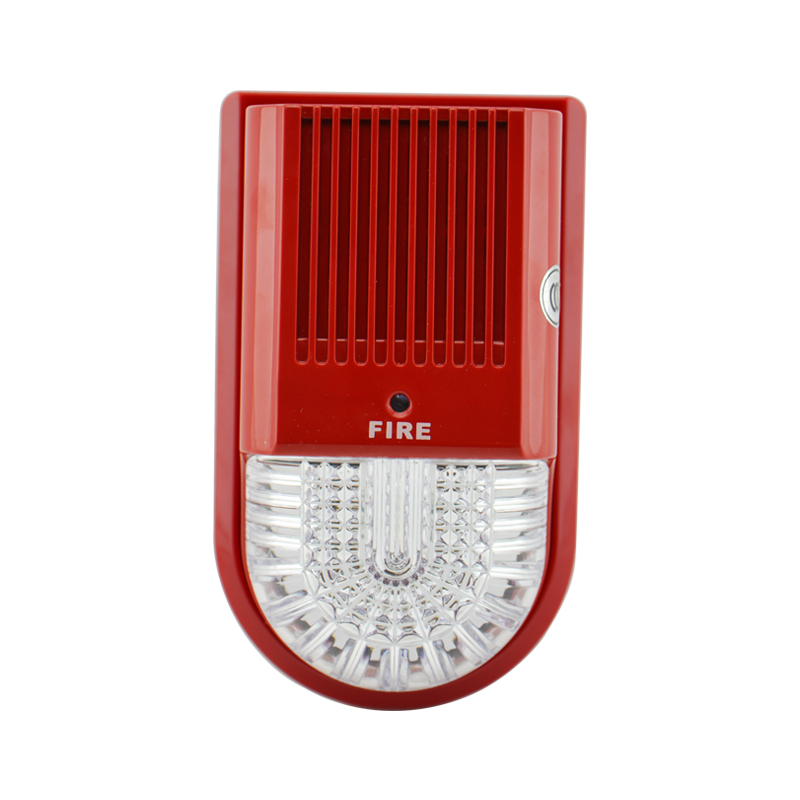

Industrial Fire Alarm Horn 24 V DC
overview
1. The horn strobe is controlled by a microprocessor, the hooter/horn can realize real-time communication with a bus-type fire alarm control unit and receive the control commands sent by it.
2. When in a routine inspection, the red status indicator will blink; after an accident happens, the red status indicator will remain lit and the hooter/horn will give a flashing signal, thus an audible alarm signal to notify the persons on the scene of the accident that a fire has occurred on the site , preventing the fire accident from becoming a major one.
3. The hooter/horn may be restored to the monitoring status after the MUTE or RESET key on the bus-type fire alarm control unit is pressed.
fire alarm system strobe hooter basic introduction | |
Name | Addressable Horn Strobe |
Model | AW-ASS2188 |
Features | 24V. 3 Tone. Alarm colume>85db |
Weight | 170g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
fire alarm system strobe hooter technical parameters
Executive standard: GA385- 2002
Operating voltage: DC24V (pulse modulation)
Operating current: quiescent current: ≤1mA (the current consumed by the bus); alarm current: ≤120mA@DC24V
Operating environment: Temperature: -10°C~+55°C; relative humidity: ≤95% (40°C, without condensation)
Flushing rate: one time/s
Alarm volume: >85dB (measured at a place 3m in front of the hooter/horn)
Coding method: Electronic coding
Wiring method: Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND)wireless horn strobe, fire horn strobe, infrared strobe, alarm siren 100db, led strobe , star strobes, siren strobe, light strobe, strobe alarm hooter, industrial hooters, fire hooter, car hooters, horn hooter, electronic hooter , hooter, mini strobe siren, wireless strobe light siren, led fire strobe siren, strobe light , home alarm system parts, piezo alarm strobe siren, fire alarm strobe siren, fire strobe siren, motor siren, electric siren
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have an experienced R&D team to design special electric product for test and control usage.
Our aim "Try all our best offer our customer satisfied items and service
1)Sample oder is welcomed to test the quality.
2 ) Flexible technicals adjusting as per customer" s special request.
3) Answer your enquiries, questions and emails in 24 hours
4) Direct control on material, testing, quality, leadtime etc.
