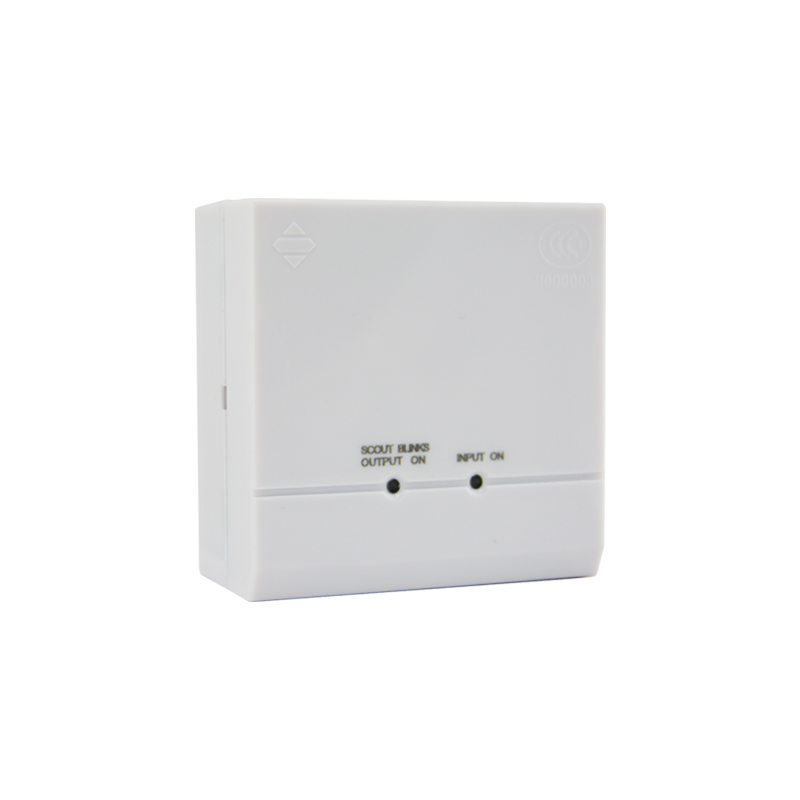

Addressable Input Module Picture:
Addressable Input Module Introduction:
The AW -AIO2188-IN Intelligent input module (AW-AIO2188-IN module for short) is used with AW - AFP2188,a two-bus fire alarm control panel. I t can be connected with a conventional smoke detector, a conventional heat detector, a conventional manual call point, a conventional hooter/horn and some other equipment. After the said equipment starts to operate, the alarm signal output will be sent by the AW-AIO2188-IN module to the fire alarm control panel through a signal bus to give a fire alarm.
Addressable Input Module Featrures:
| Asenware fire addressable input module Features and technical parameters | |
| Mode of operation | Nonpolar two-wire system |
| Quiescent current | <0.6mA (Power-down mode) |
| Action Current | <10mA |
| Executive Standard | GB168 06-2006 |
| External Dimensions | 86x86x40(mm) |
| Weight | 119g |
| Terminal load | 4.7k resistant |
Addressable input module
