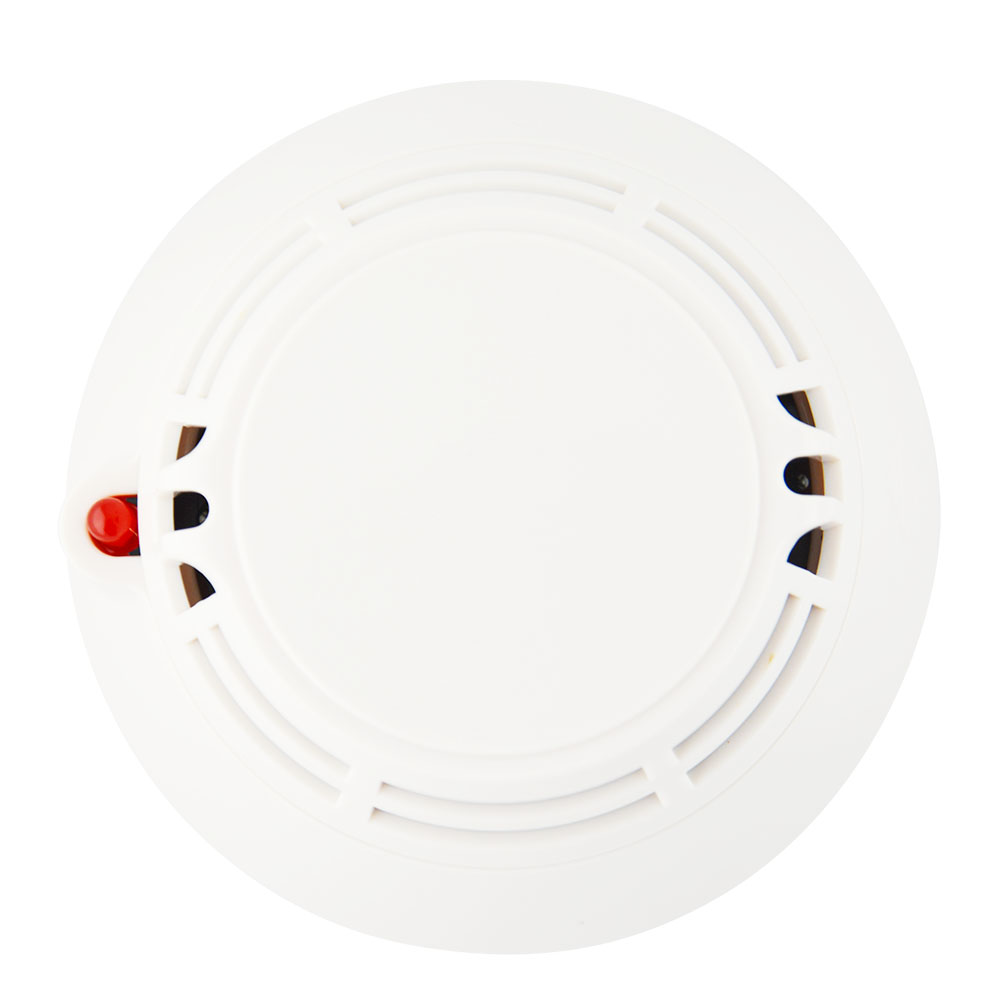

Fire Alarm System Addressable Smoke and Heat Combined Detector
Fire Alarm System Addressable Smoke and Heat Combined Detector Introduction:
AW-ASH2188 addressable smoke and heat combined detector is a multi-complex by the smoke detector sensor and semiconductor temperature sensors from the process structure and together constitute the circuit structure. It not only has a photoelectric smoke detector performance, and both temperature fire detector performance.
This addressable smoke and detector is for the promise of the second bus system, with the company"s 2188 series of alarm controller supporting.
Fire Alarm System Addressable Smoke and Heat Combined Detector Parameter:
| 1. Executive standard | GB 4715-2005,GB4716-2005 |
| 2. Operating voltage | 24V (pulse modulation) |
| 3. Operating current | ≤0.5mA (monitoring status) or |
| 4. Sensing technology | the use of photoelectric sensors and temperature sensors dual sensor technology, thermal type: A2 |
| 5. Weight | about 100g |
| 6. Encoding | Electronic, coding range is 1 to 324 |
| 7. External dimensions | diameter: 100mm, height: 55mm (with the base) |
| 8. Wiring | Promise of wire |
| 9. LED | red, blinking about once every 12 seconds when the patrol, alarm always |
| 10. Operating environment: Indoor, temperature | -10°C~+50°C; relative humidity: ≤95% (40°C±2°C, without condensation) |
| 11. Installation height | ≤8m |
| 12. Shell Material | ABS |
| 13. Protection area | about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System. |
| 14. Matched host machine | fire alarm control panel (such as AW-AFP2188) |
Fire Alarm System Smoke and Heat Combined Detector
