Addressable combined smoke heat detector
Technical parameters:
| Executive standard | GB 4715-2005,GB4716-2005 |
| Operating voltage | 24V (pulse modulation) |
| Operating current | ≤0.5mA (monitoring status) |
| Sensing technology | the use of photoelectric sensors and temperature sensors dual sensor technology, thermal type: A2 |
| Weight | about 100g |
| Encoding | Electronic, coding range is 1 to 324 |
| External dimensions | diameter: 100mm, height: 55mm (with the base) |
| Wiring | Promise of wire |
| LED | red, blinking about once every 12 seconds when the patrol, alarm always |
| Operating environment | Indoor, temperature: - 10 °C ~ +50 °C ; relative humidity: ≤95% (40°C±2°C, without condensation) |
| Installation height | ≤8m |
| Shell Material | ABS |
| Protection area | About 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System. |
| Matched host machine | fire alarm control panel (such as AW-AFP2188) |
Packaging : PP Bag per Set to protect/Carton Box outside
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .

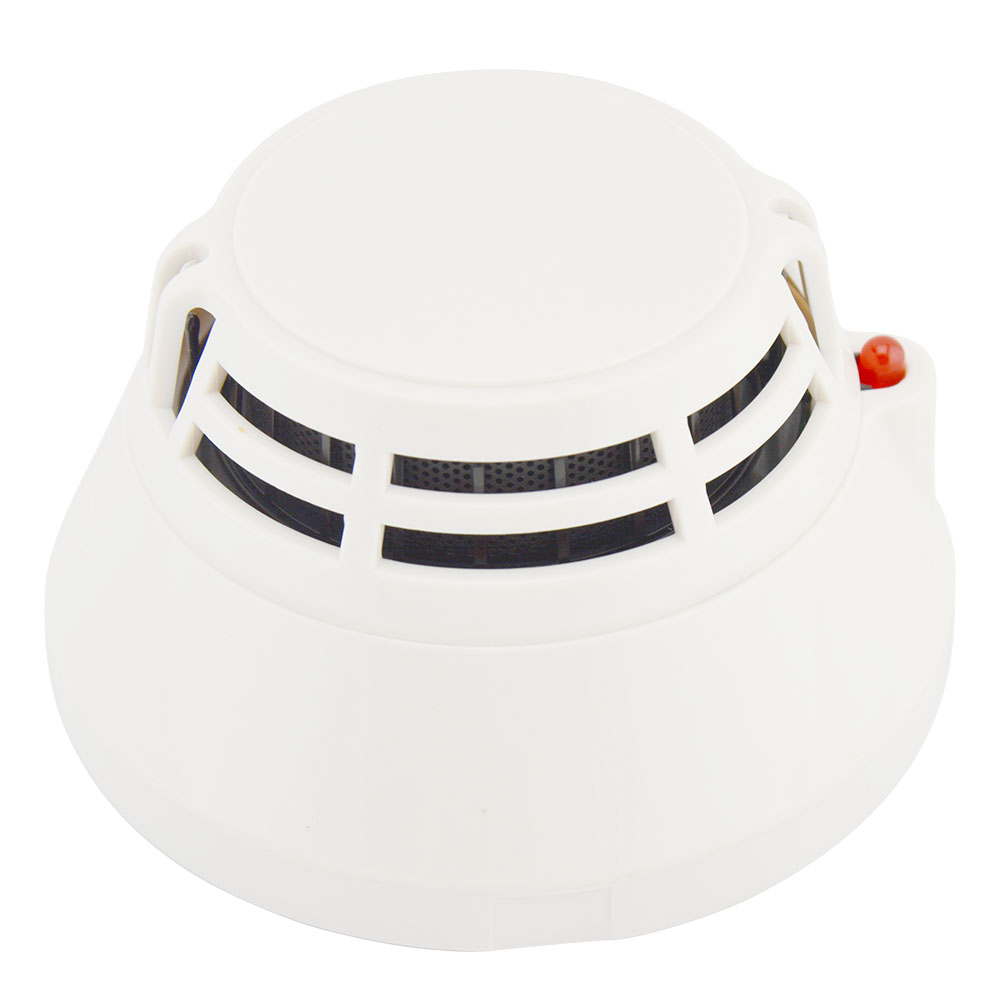

As the pics shows:
Product overview:
AW-ASH2188 addressable point type hybrid smoke and heat combined detector (Detector
hereunder) is a multi-complex by the smoke detector sensor and semiconductor
temperature sensors from the process structure and together constitute the circuit
structure. It not only has a photoelectric smoke detector performance, and both
temperature fire detector performance.
This detector is for the promise of the second bus system, with the company"s 2188 series
of alarm controller supporting.
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
