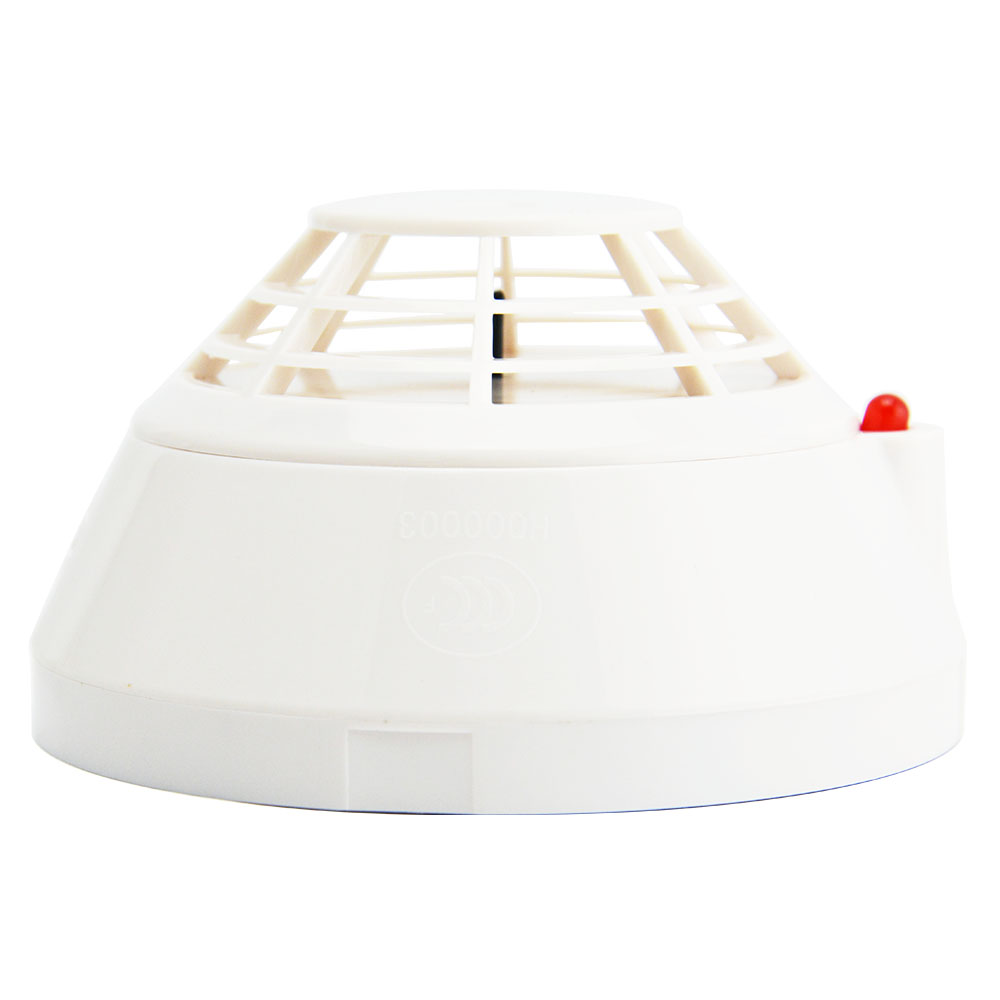

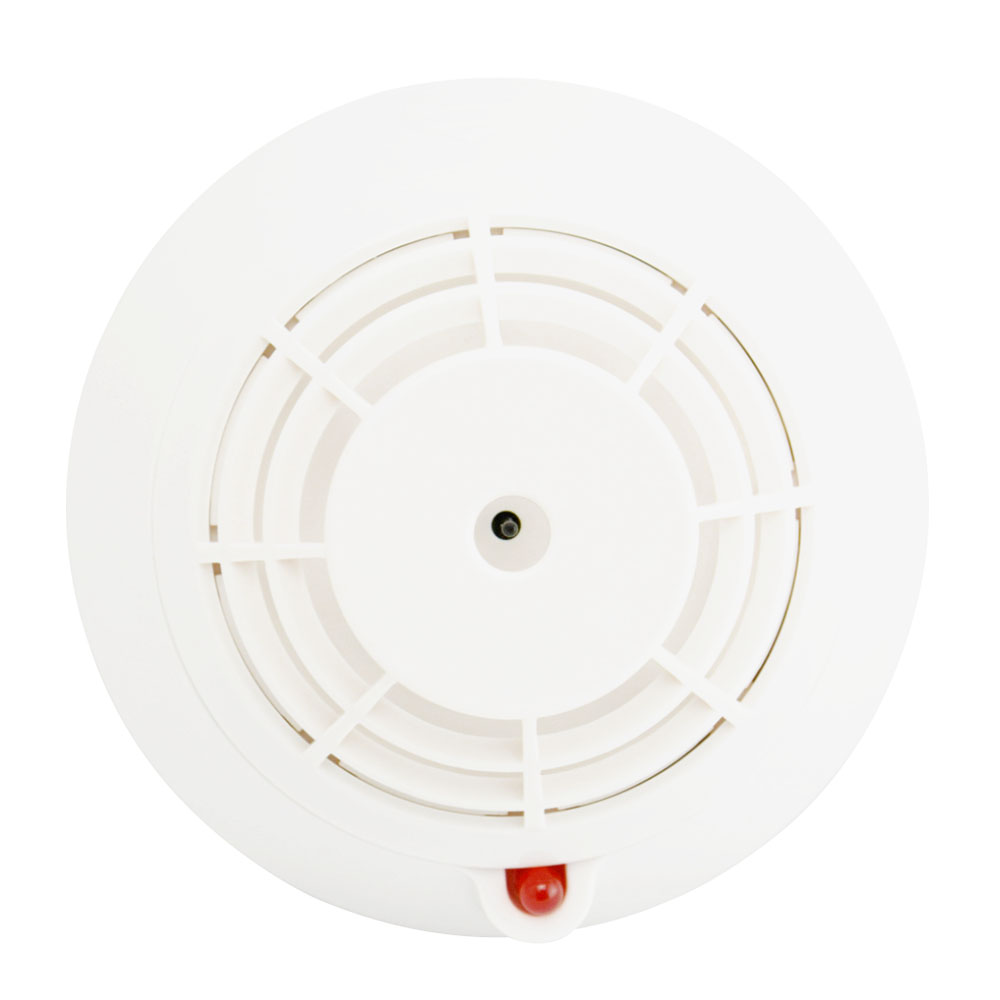

2-Wire Combined Smoke and Heat Detector with Relay Output Function
Specification for Heat Detector with Relay Output Function
1.Addressable heat detector is a mated product of the 9000 series fire alarm control panels.It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding.
2.The detector realizes real-time acquisition of the in situ smoke concentration data .And sends back the data to a fire alarm control panel.
3.It can also receive and execute the control commands given by a fire alarm control panel.
Addressable Heat Detector/Sensor/Alarm | ||
| Name | Addressable Fixed Temperature Heat Detector |
Model | AW-ATD2188 | |
External Specification | Diameter 100mm Height 56mm (With Base) | |
Weight | 47G | |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 | |
Installation height | ≤8m | |
Heat Detector with Relay Output Function Technical Parameters
1.Executive standard: GB4716-2005
2.Operating voltage: 24V (pulse modulation)
3.Operating current: <300uA (monitoring status) or <1.5mA (alarm status)
4.Product class: A2
5.Wiring method: non-polarity two-bus system (L1, L2)
6.Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.
7.Operating environment: Indoor, temperature: -10°C~+50°C; relative humidity: ≤95% (40°C±2°C, without condensation)
8.Protection area: about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System.
9.Work indication: The red indicator will blink in the monitoring status or remain lit in the alarm status.
Heat Detector with Relay Output Function Features and Benefits
1.It can realize electronic coding and rewrite the address via coder in situ. Within a single-chip microcomputer, |
2.It has a temperature compensation function and a sensor fault detection function (fault reporting to fire alarm control panel). |
3.Non-polarity, two-bus connection that ensures convenient installation and maintenance. |
4.Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently. |
Heat Detector with Relay Output Function
Heat Detector with Relay Output Function
Heat Detector with Relay Output Function
