8-100m fire beam detector for building project description
1. AW-BK801 fire beam detector is a Long-interval reflection line infrared beam smoke detector, which must be used together with a reflector. In case of smoke on the light path of the detector, the signal arriving at the receiver is reduced; when the light reduction rate reaches the preset threshold, the detector will produce the alarm signal; when the light beam is completely blocked, the detector will produce the fault signal to prevent the false alarm caused by non-fire blockage. Thanks to the built-in uniprocessor with excellent performance.
Parameters of the fire beam detector
Model: AW- AW-BK801 | Monitor Range 0~40M |
Monitor Range 40~70M | |
Monitor Range 70~100M | |
Operating Voltage: | DC16V~DC32V |
Adjusting Angle: | -6 DEG ~+6 DEG |
External Dimensions: | 206mm×95mm×95 mm |
Operating Current: | monitoring current ≤12 mA, alarm current ≤22mA, debugging current≤20mA |
Fire alarm, fault contact output: fire alarm relay | —rating of contacts 24V/1A, open during normality and normally closed in case of fire alarm |
Fault relay | —rating of contacts 24V/1A, normally closed during normality and normally open,in case of fault |
Working Environment | Warehouses, large-scale storage areas, shopping plazas, body-building centers, gymnasiums, exhibition halls, hotel halls, printing works, costume plants, museums, prisons, etc, as well as space with light smoke dust. |

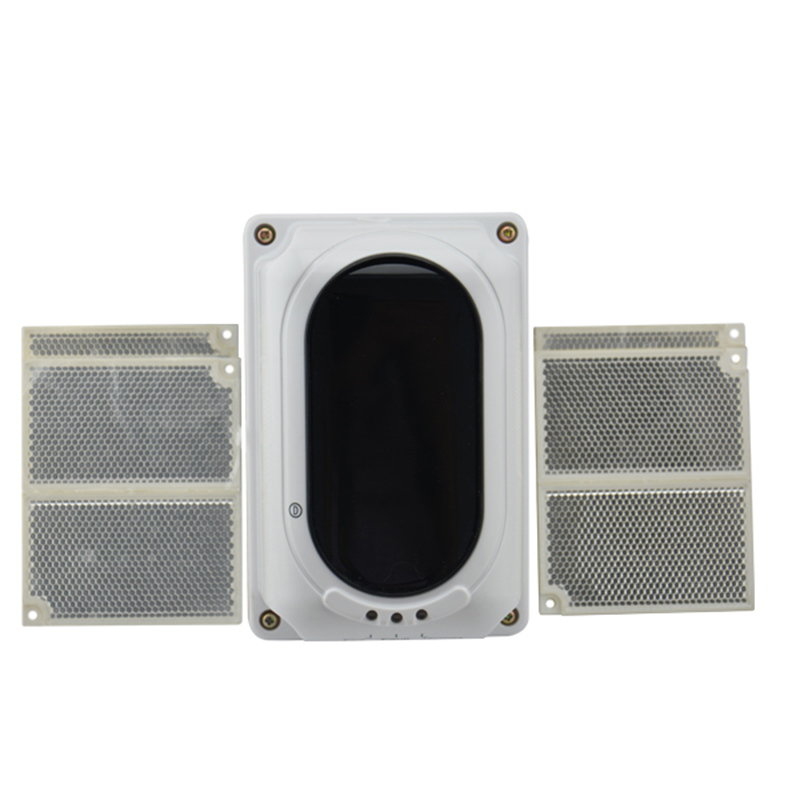

Fire infrared 8-100m beam detector detailed show
the Asenware fire beam detector has a powerful analysis and judgment capability and can automatically complete the systematic debug, the compensation for external environmental parameter variation, and the judgment of fire alarm and fault, and also can give status indication through the indicator lamp and the signal output terminal. The detector adopting a brand-new and reasonable structural design is sensitive in adjustment, correct in positioning, easy in installation, and simple and convenient in debugging method. The detector contains a group of alarm passive normally open contacts and a group of fault alarm normally closed contacts as well as 4-20mA standard signal output to be conveniently connected with the fire alarm system and DCS system of plants of fire fighting equipment.
Beam smoke detector packaging and shipping
Our services
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made
1.Asenware was set up in 2006, and is a technology oriented company that devotes to NDT (Non Destructive Test) and BAC (Building Automatic Control) industries
2. We have an experienced R&D team to design special testing items or automatic control products
3. We have two factories: one factory is in Shenzhen for BMS products, and the other one is in Dandong for NDT X-ray products
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
