| Name | Addressable Fix Temperature Heat Detector |
| Mode No. | AW-ASD2188 |
| Operating Voltage | 24V (Pulse Modulation) |
| Wiring Method | Non-polarity Two-bus System (L1, L2) |
| Operating Current | <300μA (Monitoring Status) or <1.5mA (Alarm Status) |
| Operating Environment | Temperature: -10℃~+50℃;Relative Humidity: ≤95% (40℃±2℃, without Condensation) |
| Protection area | 60m² |
| Installation Height | ≤12m |
| Size (with Base) | Diameter:100mm, Height: 55mm |
| Weight (with Base) | about 70g |

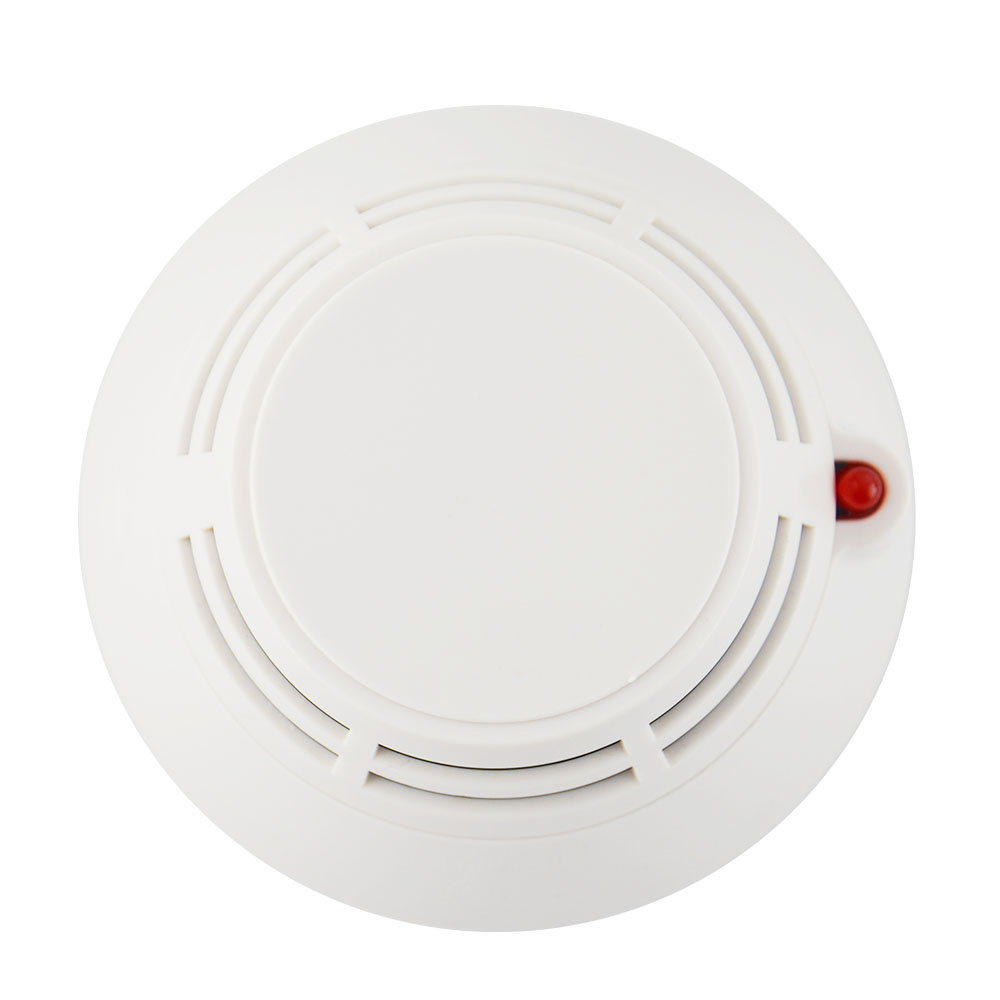

Fire Alarm System Addressable Fixed Temperature Detector
Fire Alarm System Addressable Fixed Temperature Heat Detector Introduction:
1.Addressable heat detector is a mated product of the 9000 series fire alarm control panels.
It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding.
2.The detector realizes real-time acquisition of the in situ smoke concentration data and sends back the data to a fire alarm
ontrol panel.
3.It can also receive and execute the control commands given by a fire alarm control panel.
Name | Addressable Fixed Temperature Heat Detector |
Model | AW-ATD2188 |
External Specification | Diameter 100mm Height 56mm (With Base) |
Weight | 47G |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Installation height | ≤8m |
Fire Alarm System Addressable Fixed Temperature Heat Detector parameters:
1.Executive standard: GB4716-2005
2.Operating voltage: 24V (pulse modulation)
3.Operating current: <300uA (monitoring status) or <1.5mA (alarm status)
4.Product class: A2
5.Wiring method: non-polarity two-bus system (L1, L2)
6.Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.
Fire Alarm System Fixed Temperature Heat Detector
