Analog 2-wire smoke detector price
Smoke Detector Basic Introduction
1.--Addressable smoke detector is a kind of photoelectric smoke detector. With an internal microprocessor.
it supports electronic coding and is accessed through a compatible fire alarm control panel via a two-wire bus.
2.--The detector realizes real-time acquisition of the in situ smoke concentration data
And sends back the data to a fire alarm control panel.
3.--It can also receive and execute the control commands given by a fire alarm control panel.
Addressable Smoke Detector/Sensor/Alarm | |
Name | Addressable photoelectric smoke detector |
Model | AW-ASD2188 |
External Specification | Diameter 100mm Height 55mm (With Base) |
Weight | 70G |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Installation height | ≤12m |
Smoke Detector/Alarms Technical Parameters
1. Executive standard: GB4715-2005
2. Operating voltage: 24V (pulse modulation)
3. Operating current: <300uA (monitoring status) or <1.5mA (alarm status
4. Wiring method: non-polarity two-bus system (L1, L2)
5. Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.
6. Protection area: about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System
7. Operating environment: Indoor, temperature: -10°C~+55°C;
Relative humidity: ≤95% (40°C±2°C, without condensation)
Work indication: The red indicator will blink in the monitoring status or remain lit in the alarm status.
Packaging : PP Bag per Set to protect/Carton Box outside
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .

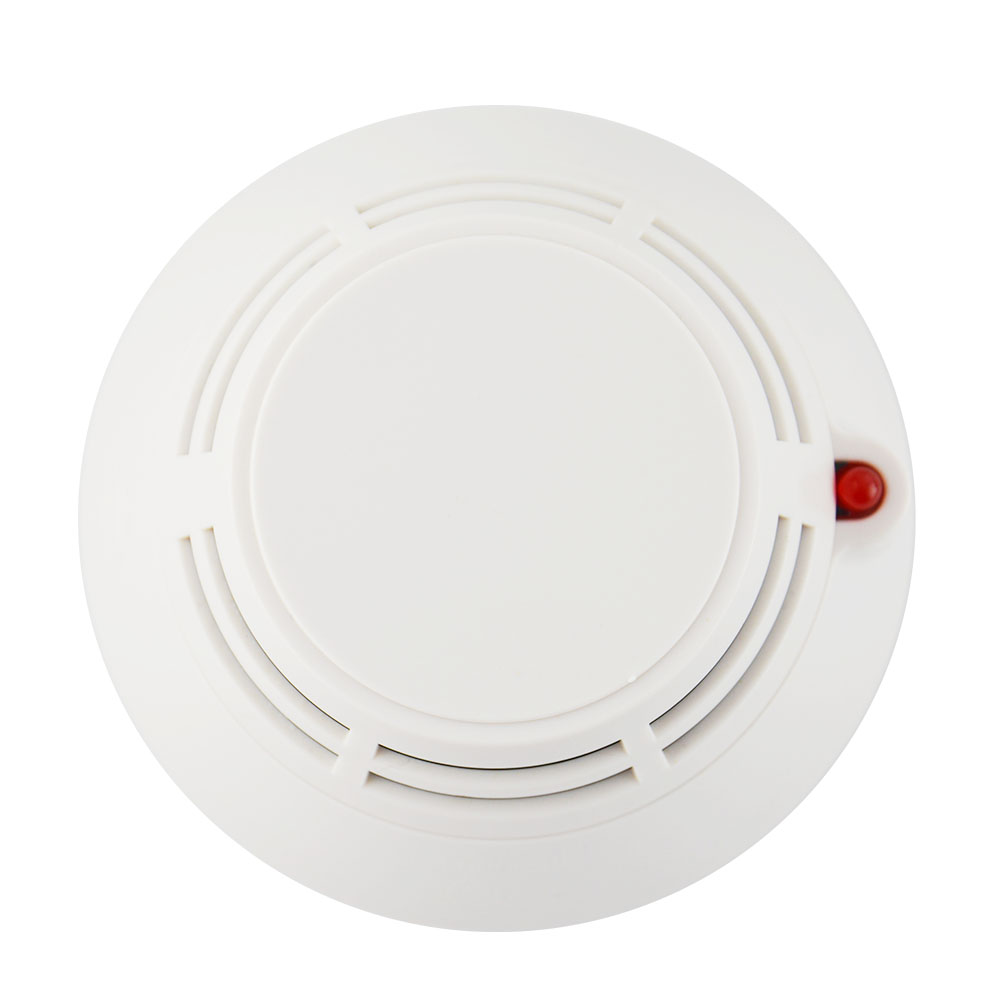

As the pics shows:
Smoke Detector Features and Benefit
1.--It can realize electronic coding and rewrite the address via coder in situ.Within a single-chip microcomputer, |
2.--It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel). |
3.--Non-polarity, two-bus connection that ensures convenient installation and maintenance. |
4.--Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently. |
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Addressable fire alarm FAQ
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
