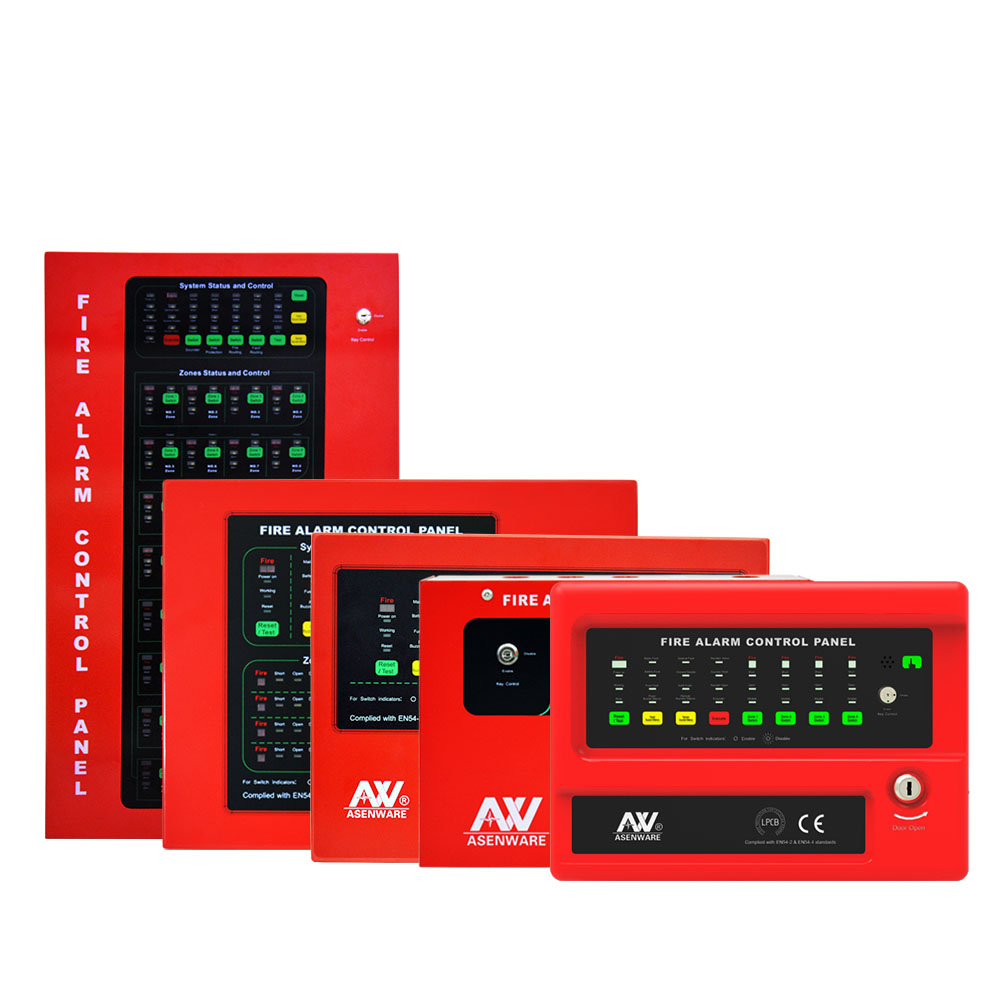

Asenware AW-CFP2166-8, 8 Loop 8 Zone Conventional Fire Alarm System Control Panel
Introduction:
The AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.
1. AW-CFP2166 series conventional fire alarm panel is designed based on
EN54 part 2&4 standard.
2. It is modularized design, the panel can expand from 1 zone to 32
zones easily.
3. It has 2 level control mode by a lock.
4. It has 24VDC power supply output.
5. It has FIRE and FAULT signal output.
6. It has 2 general sounders output.
7. Each zone has 1 circuit detectors input.
8. Each zone can be disable by a button.
9. It has RESET button to reset the panel.
10. It has SILENCE button to stop BUZZER and SOUNDERS.
11. It has EVACUATE button to start a manual fire alarm immediately.
12. It has an optional GSM module for fire alarm by SMS.
13. It is economic, user-friendly and easy maintenance.
| Mains supply voltage | 110VAC or 220VAC |
| Internal power supply | 27.2VDC |
| Total output current limited | 3A @ 220VAC |
| Batteries (default configuration) | 12V2.3AH*2 |
| Number of circuit | 4-8 |
| End of Line device | 6.8k Ω,5% tolerance, 0.5-1W (colour code-blue,grey,red,gold) |
| Call point resistor value | 470 to 680 Ω, 0.5 or 1 watt |
| Number of general circuits | 2 |
| Outputs fused AT | 600mA |
| Maximum number of bells @ 50mA of each Sounder output | 30 |
| Battery fuse | 1.85A resettable fuse |
| Sounder outputs | 750mA resettable fuse |
| Output type | NC and NO relay |
| Maximum current | 100mA |
| Largest acceptable conductor size | 2.5mm2 |
| Smallest acceptable conductor size | 0.75mm2 |
| Dimensions(mm) | 430X390X140 |
| Weight (with batteries) | 9kg |
