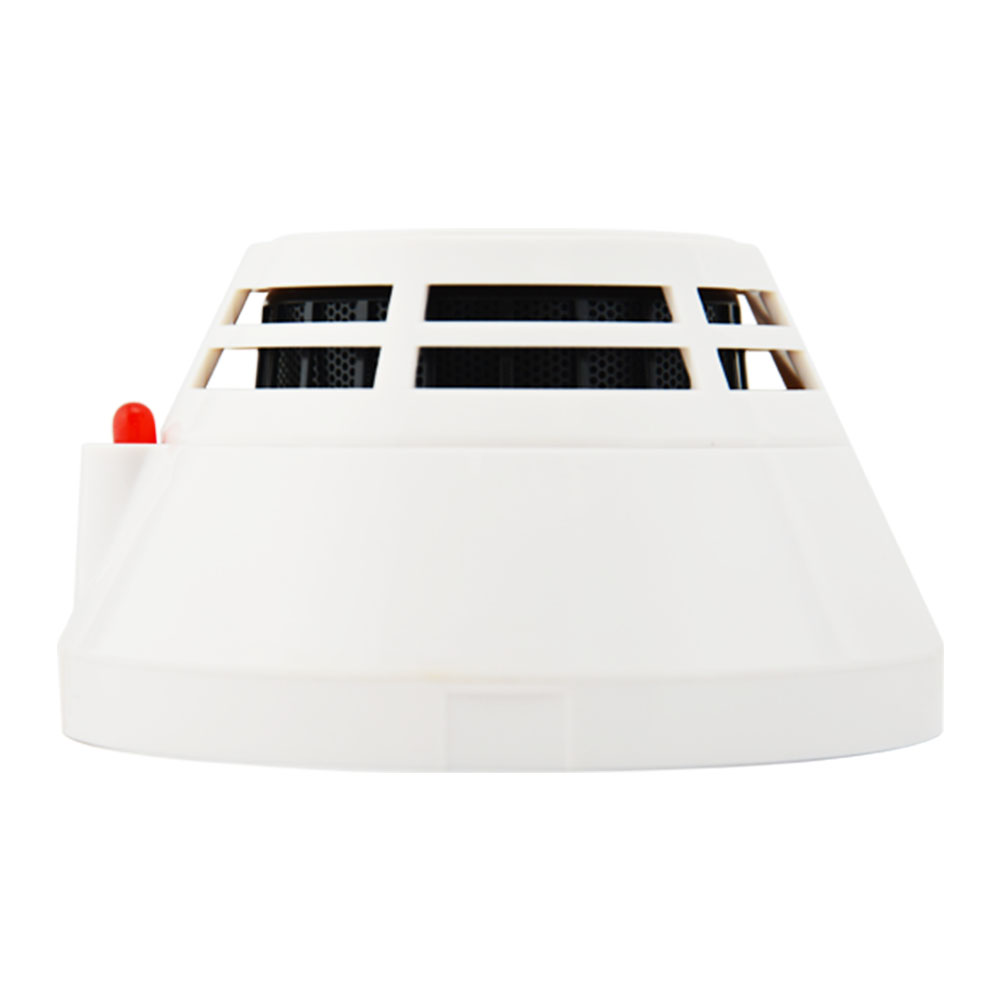

Addresses Fire Alarm Smoke Sensor
Specification
It can realize electronic coding and rewrite the address via coder in situ.
Within a single-chip microcomputer, it can process the sampling data in real-time,save the latest 144 historical data and realize a curve tracing for the field situation.
It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
Non-polarity, two-bus connection that ensures convenient installation and maintenance.
Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
Parameters
Addressable Smoke Detector/Sensor/Alarm | |
Name | Addressable photoelectric smoke detector |
Model | AW-ASD2188 |
External Specification | Diameter 100mm Height 55mm (With Base) |
Weight | 70G |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Installation height | ≤12m |
Wiring method | non-polarity two-bus system (L1, L2) |
Operating voltage | 24V (pulse modulation) |
Operating current | <300uA (monitoring status) or <1.5mA (alarm status) |
Advantage of our factory and services
1) ISO certified factory with 8 years professional experience and alibity to accept and
fulfill ODM/OEM orders.
Includes:
The initial design service of appearance, structure and electronic parts
Mould opening
Sampling
Semi-products testing and supply
Mass Production for formal orders
We also can quote very quickly as customer provided samples for OEM service.
2) Flexible technicals adjusting and technical support as per customer" s special request.
3) Answer your enquiries, questions and emails in 24 hours
4) Direct control on material, testing, quality, leadtime etc.
