Wireless fire alarm for building project features
| Model | AW-CFP2166 1 to 32zones |
| Mains Voltage | 110VAC or 240VAC |
| Internal power supply | 27.2VDC |
| Batteries | 12V2AH*2 |
| Zone Capacity | 20pcs detector |
| Sounder outputs | 500mA F 20mm |
| Battery fuse | 1.5A F 20mm |
Detail picture of wire drawing wireless fire alarm
1.AW-CFP2166 Fire alarm system wire drawing is for reference . Fire alarm control panels are designed to fulfil the requirements of EN54 parts 2 & 4 as well as being easy to install, operate and maintain. Being of modular construction,
2.the basic fire panel has 1 zone capacity, expandable to 2,4,8,10,12,14,16, 20 , 24 ,28,30 and 32 zones. The Premier M Plus is suitable for surface mounting or semi-flush fitting (with just the door protruding.

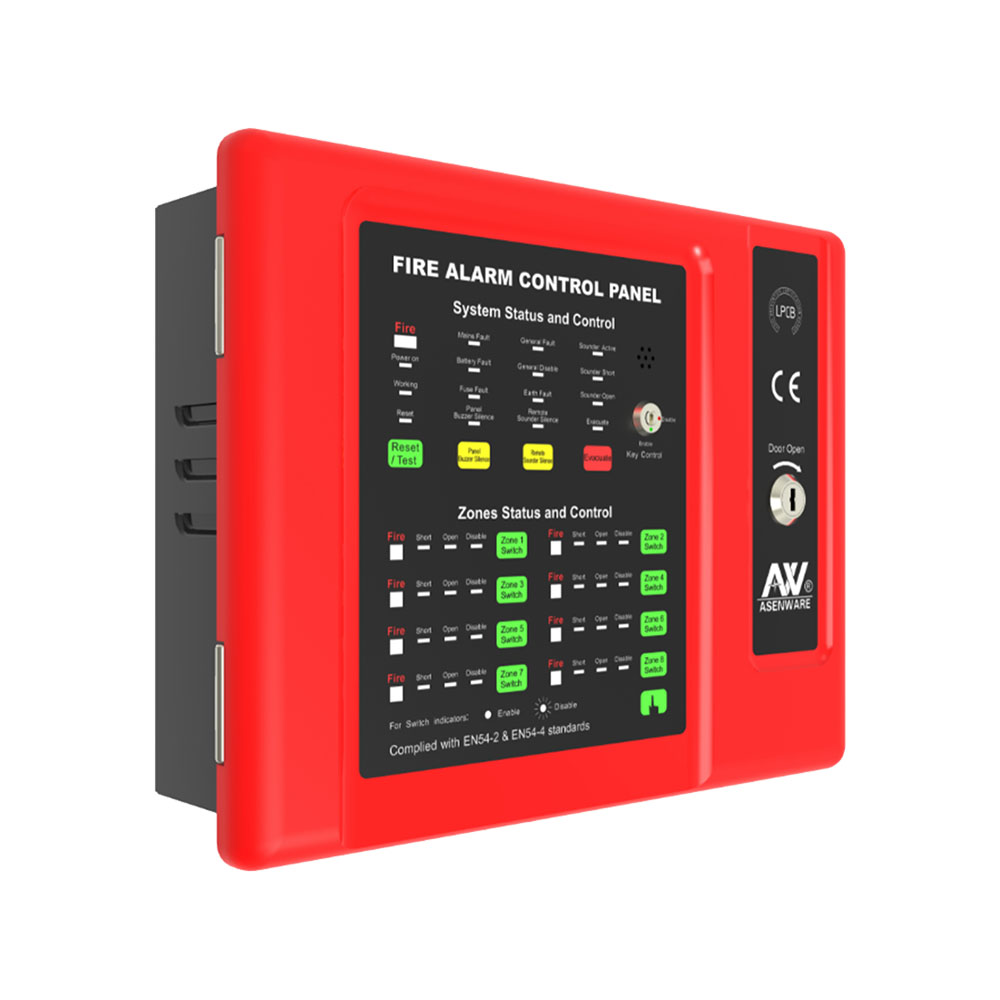

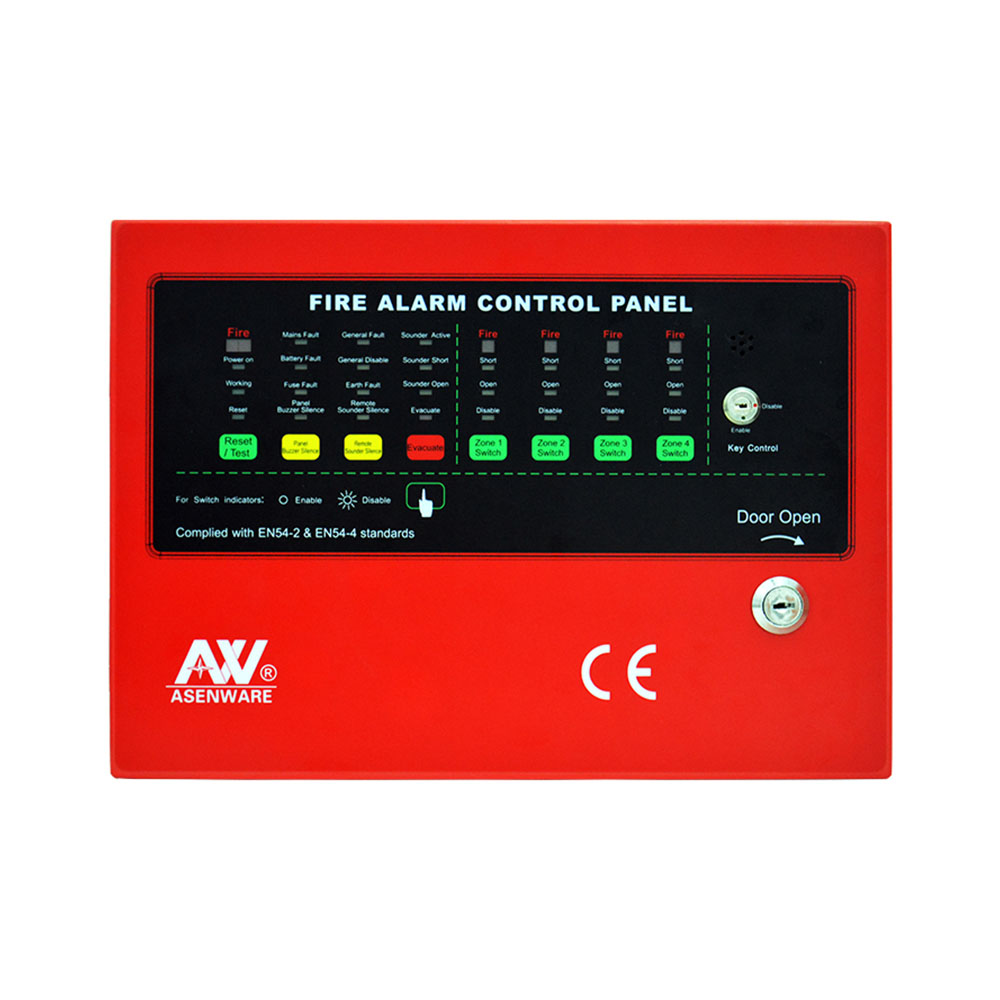

The detail picture conventional fire detection control panel show
1.Fire alarm control panel has 24VDC and 5VDC power supply output. Each zone has 1 circuit detectors
input . Each zone can be disable by a button .fire alarm panel has RESET button to reset the panel .
2.Fire alarm panel 2 general sounders output, any zone fire alarm will let the 2 general sounders be
active. Each zone can be ENABLE/DISABLE.
Fire alarm control panel packaging and shipping detail
Packaging : Use carton to pack 8 zone fire alarm control panel well .
Shpping :UPS FEDEX EMS DHL negotiable for shpping fire alarm control panel
Our services
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
1.Asenware was set up in 2006, and is a technology oriented company that devotes to NDT (Non Destructive Test) and BAC (Building Automatic Control) industries
2. We have an experienced R&D team to design special testing items or automatic control products
3. We have two factories: one factory is in Shenzhen for BMS products, and the other one is in Dandong for NDT X-ray products
Fire alarm control panel FAQ
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
