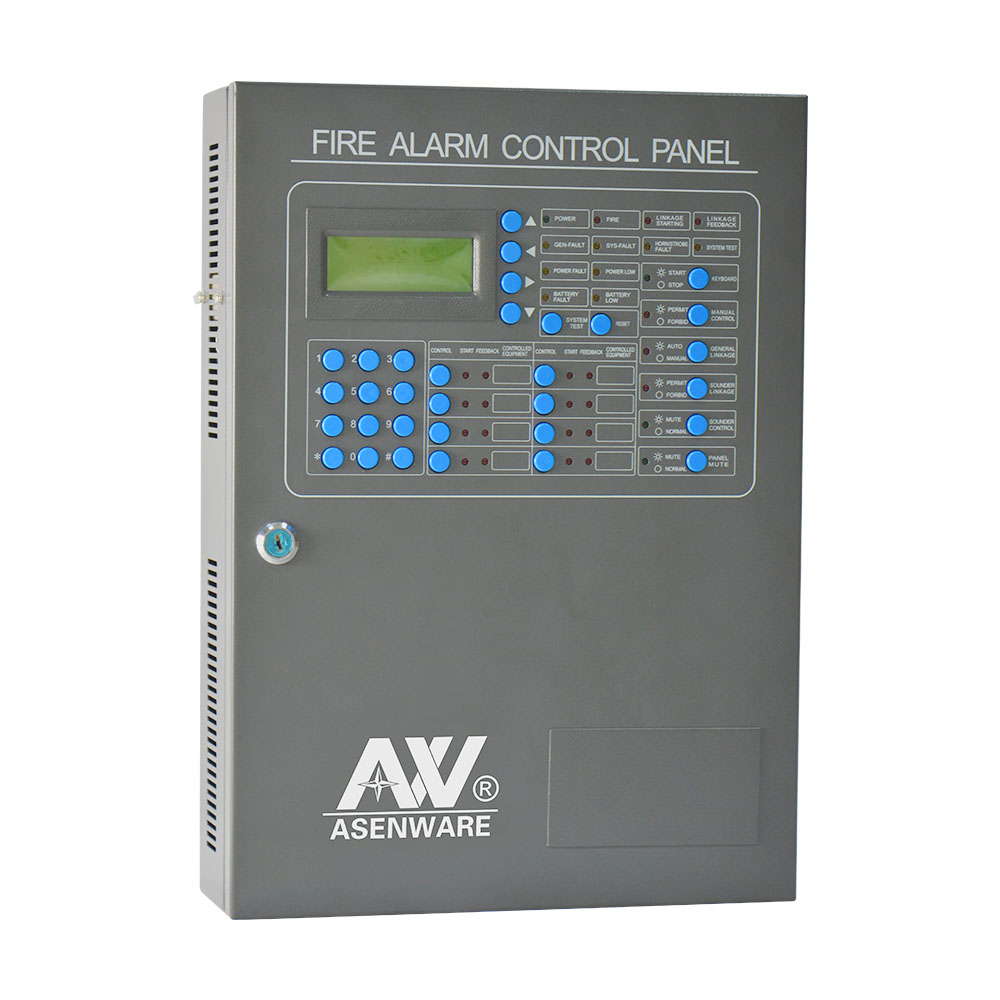

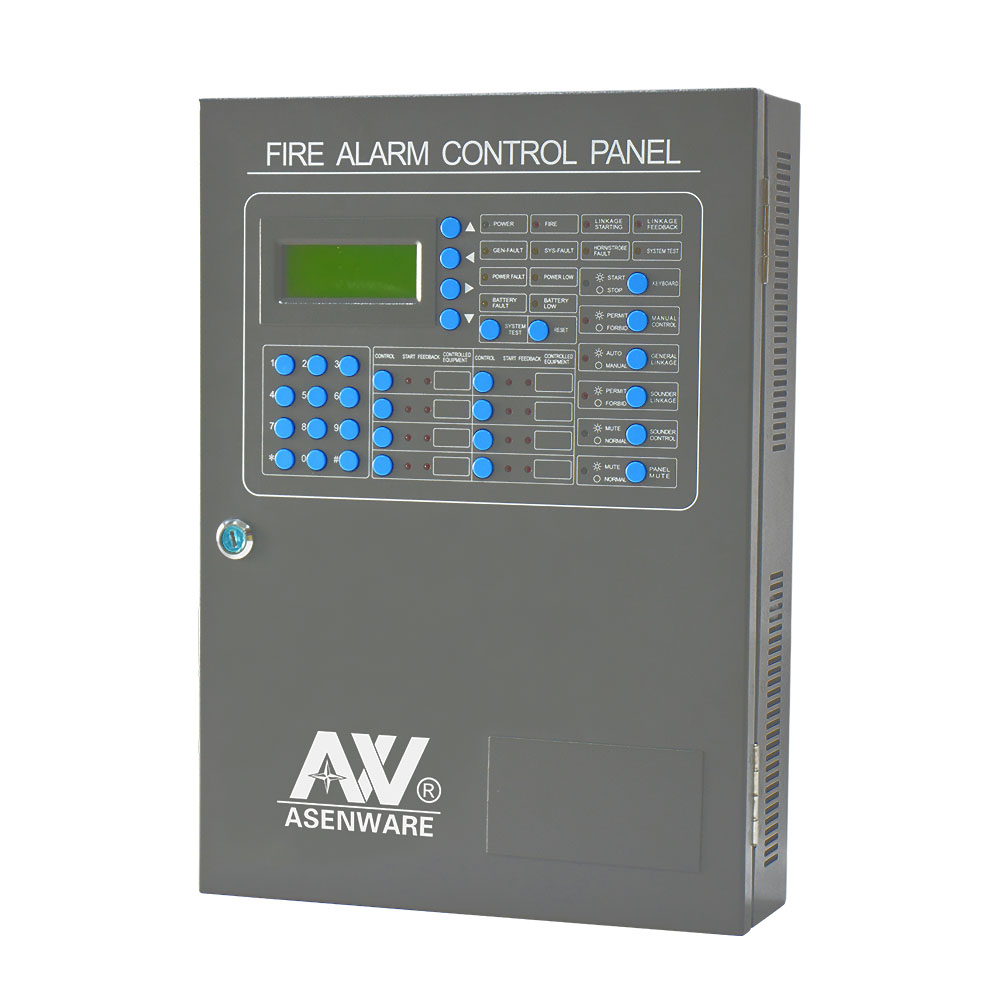

LCD display good quality addressable system
addressable system 2188 series features
| Model | 1. AW-AFP2188-100: 100 addressable system 3. AW-AFP2188-324: 324 addressable system |
| 2188 series match detectors and accessories | addressable optical smoke detector /addressable heat detector/addressable call point/addressable sounder/output module/input module |
| loop | one loop |
100/200/324 capacity good quality addressable sytem wire drawing
LCD display Addressable system working condition
| Temperature | -10°C~+50°C |
| Humidity | ≤95% |
| Power supply | AC 220V 50HZ DC 24V 6A |
| Output contact capacity | AC 220V 1A DC 27.6V 3A |
AW-AFP2188 LCD display addressable system features
The AW-AFP2188 is a new type of analog fire alarm control panel which has 324 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
