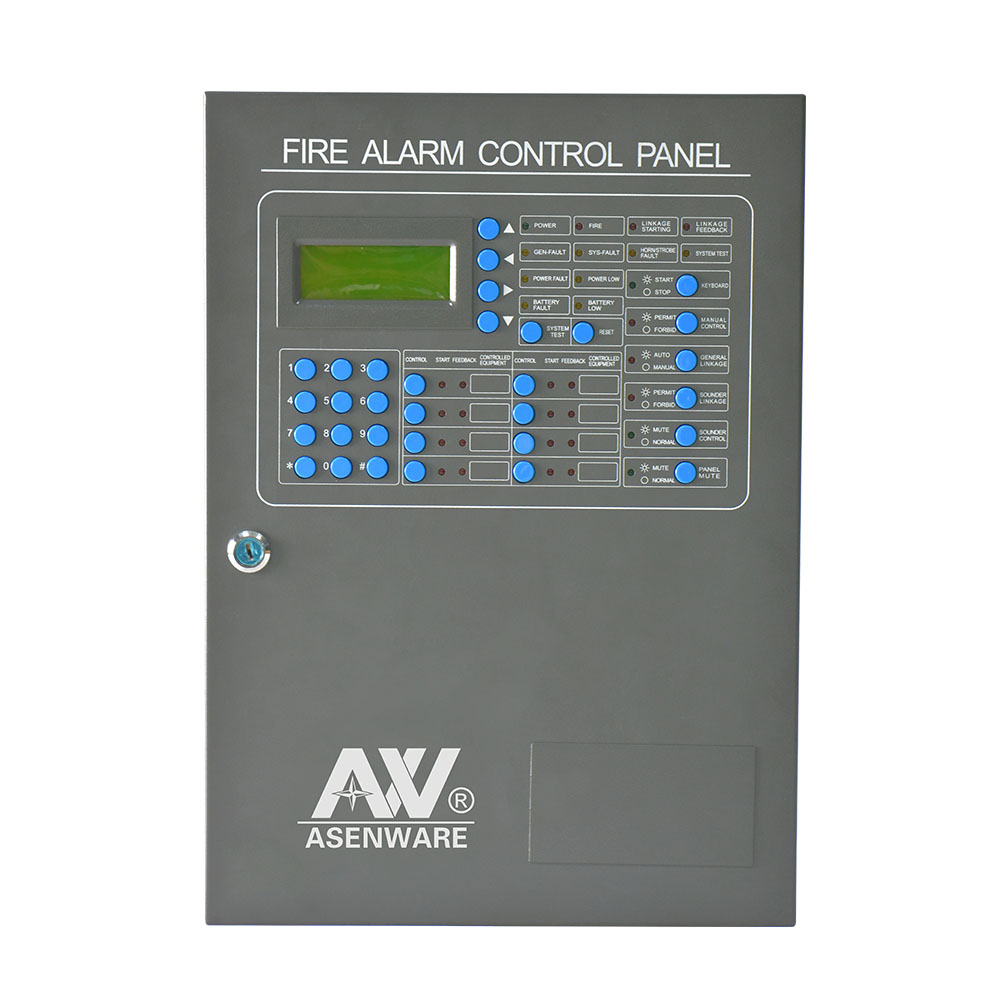

4 loops analogue addressable fire alarm panel

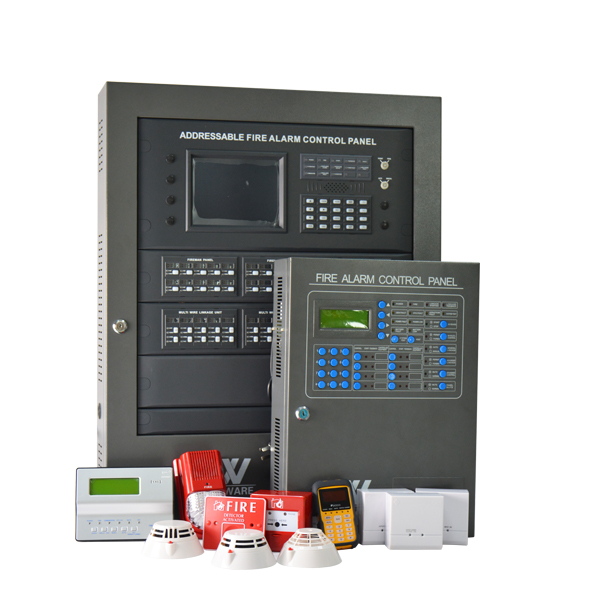

Addressable fire alarm panel field device
| optical smoke detecctor | optical heat detector |
| optical-heat combined detectors | beam smoke detector |
| addressable call point | addressable sounder |
| beam detector | output/input module |
| addressable 4 loop fire alarm panel features | |
| Length | ≤1500m |
AC input voltage | AC 220V±20% 50Hz |
AC input power | 120w |
DC power | DC24V 5.0AH |
AW-AFP2100 system capacity
| 648 points .biggest capacity is 1992 points |
System working conditions | 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A |
Addressable system network
addressable fire alarm panel general description
the new 4 loop analogue Alarm Systems. It is available in 2/ 4/6 loop versions Following on from the popularity of our Simplicity & Premier AD range of panels, the Premier Quatro includes more advanced cause & effect programming, and also includes a larger LCD display
