I. Product overview

AW-ASH2188 addressable point type hybrid smoke and heat combined detector (Detector hereunder) is a multi-complex by the smoke detector sensor and semiconductor temperature sensors from the process structure and together constitute the circuit structure. It not only has a photoelectric smoke detector performance, and both temperature fire detector performance.

This detector is for the promise of the second bus system, with the company"s 2188 series of alarm controller supporting.

II. Product features

ü Electronic coding, project commissioning simple and reliable;

ü The Promise of wire bus;

ü With the key components of self-diagnostic function;

ü With drift compensation function and the accumulation of dust pollution reporting functions.

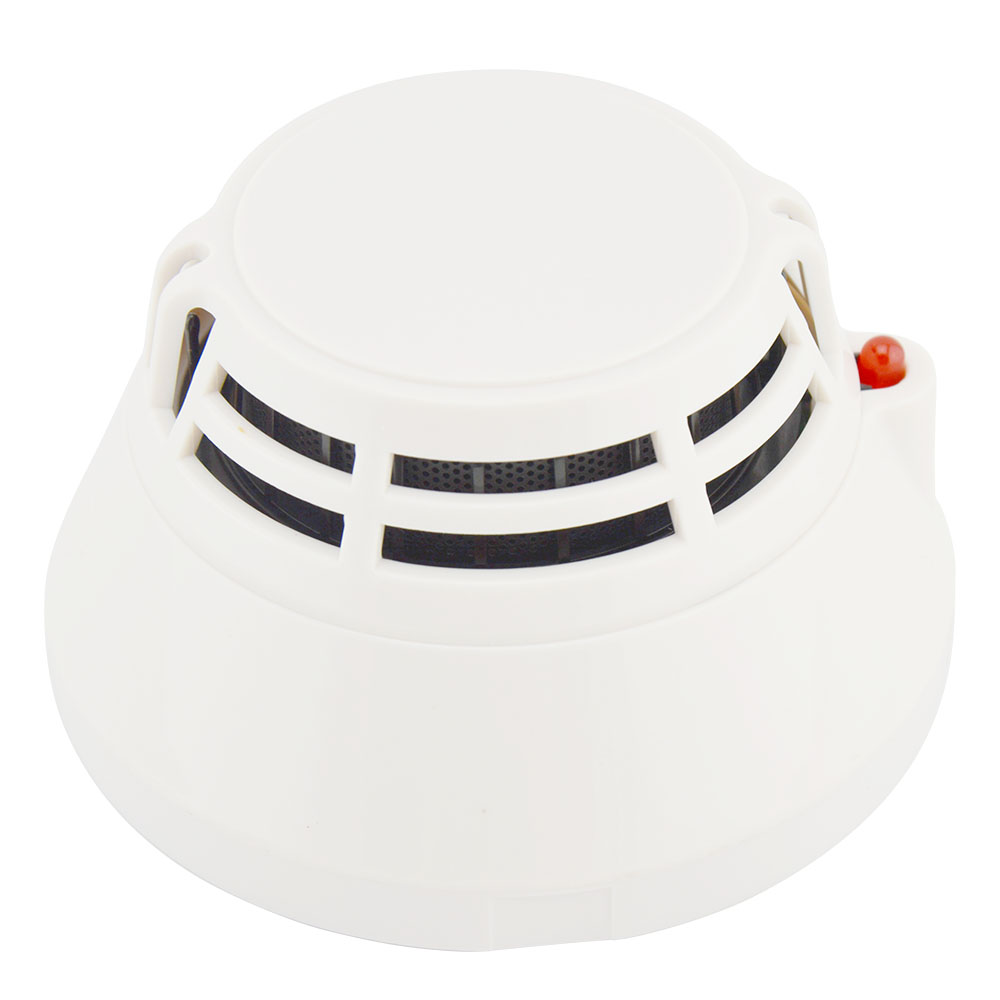

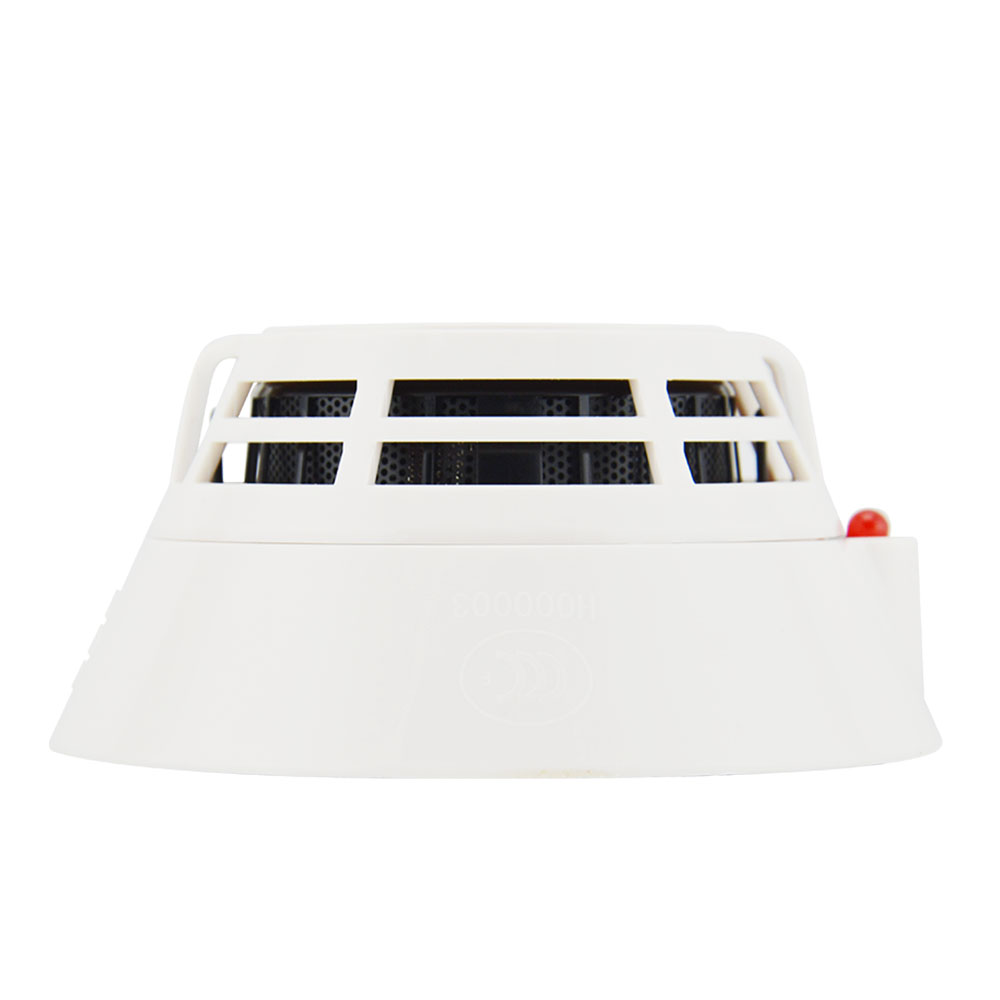

III.  Picture of addressable point type hybrid smoke and heat combined detector

IV.Technical parameters

1. Executive standard: GB 4715-2005,GB4716-2005
2. Operating voltage: 24V (pulse modulation)
3. Operating current: ≤0.5mA (monitoring status) or <1.5mA (alarm status)
4. Sensing technology: the use of photoelectric sensors and temperature sensors dual sensor technology, thermal type: A2
5. Weight: about 100g
6. Encoding: Electronic, coding range is 1 to 324
7. External dimensions: diameter: 100mm, height: 55mm (with the base)
8. Wiring: Promise of wire
9. LED: red, blinking about once every 12 seconds when the patrol, alarm always
10. Operating environment: Indoor, temperature: -10°C~+50°C; relative humidity: ≤95% (40°C±2°C, without condensation)
11. Installation height: ≤8m
12. Shell Material: ABS
13. Protection area: about 60m². For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System.
14. Matched host machine:fire alarm control panel (such as AW-AFP2188)

IV.System diagram of the addressable fire alarm panel

5.The Whole Fire Alarm Control Panel System

The addressable fire alarm control system 2188 series matched the below detectors and accessories:

1) AW-ASD2188:addressable photoelectric smoke detector

2) AW-ATD2188:addressable fixed temperature heat detector

3) AW-AST2188: addressable combined heat and smoke detector

4) AW-ASS2188:addressable hooter/horn

5) AW-AIO2188-IN:addressable input module

6) AW-AIO2188-OUT:addressable out module

7) AW-AMC2188:addressable manual call point

8) AW-CODER2188:coder for setting address.

          Fire Alarm Addressable Photoelectric Smoke Detector AW-ASD2188
