Safety beam motion detector alarm
New beam detector Brief introduction
Beam motion detector alarm AW-BK801 consists of a set of normally open passive contacts for alarm output and normally closed contacts for fault alarms as well as standard 0 ~ 20mA signal output, which can conveniently connect with the fire alarm system produced by various fire-fighting manufacturers
beam alarm infrared detector charactrics
The detector is characteristic of smart design of the optical path, stronganti-jamming capability, seal design and reliable anti-corrosion and water-proof.

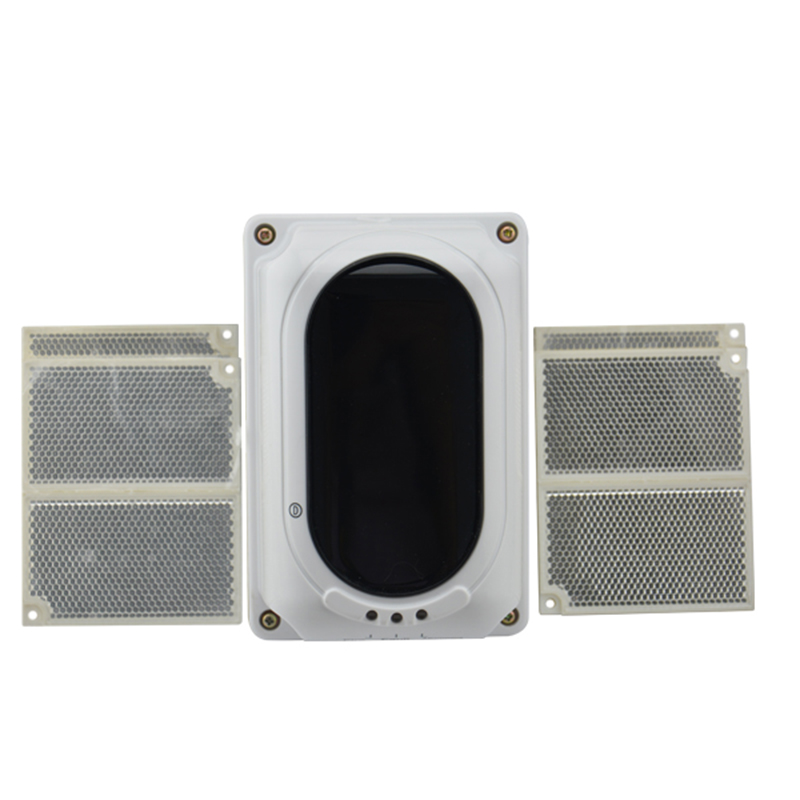

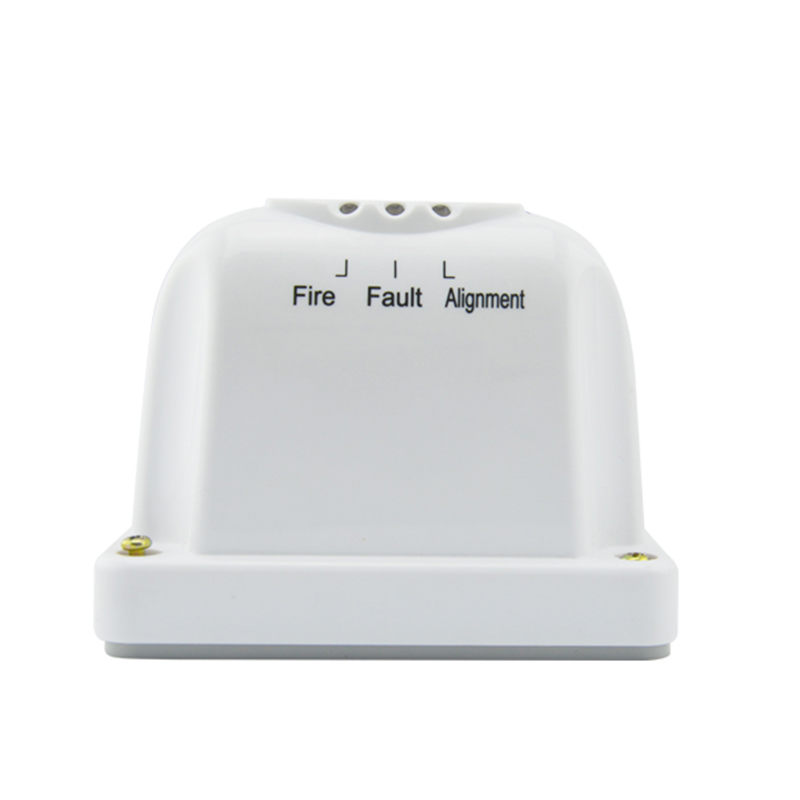

Safety beam motion detector alarm picture
photoelectric beam alarm for conventional system
safety beam alarm detector detail Parameters
| Beam alarm distance | 40m/70m/100m |
| working enviroment beam smoke detector | Warehouse goverment building school hospital comercial building |
| operating voltage | DC16V~DC32V |
External dimension | 206mm×95mm×95 mm |
| Weight | 450g |
| Operating Current |
monitoring current ≤12 mA,
alarm current ≤22mA,
debugging current ≤20mA
|
| Operating Environment | temperature -10°C~+50°C relative humidity ≤95% without condensation |
Certificate of liner 100m beam motion detector alarm
