Outdoor 100m beam alarm infrared detector
infrared detector Brief introduction
Infrared detector AW-BK801 consists of a set of normally open passive contacts for alarm output and normally closed contacts for fault alarms as well as standard 0 ~ 20mA signal output, which can conveniently connect with the fire alarm system produced by various fire-fighting manufacturers
100m beam alarm infrared detector charactrics
The detector is characteristic of smart design of the optical path, stronganti-jamming capability, seal design and reliable anti-corrosion and water-proof.

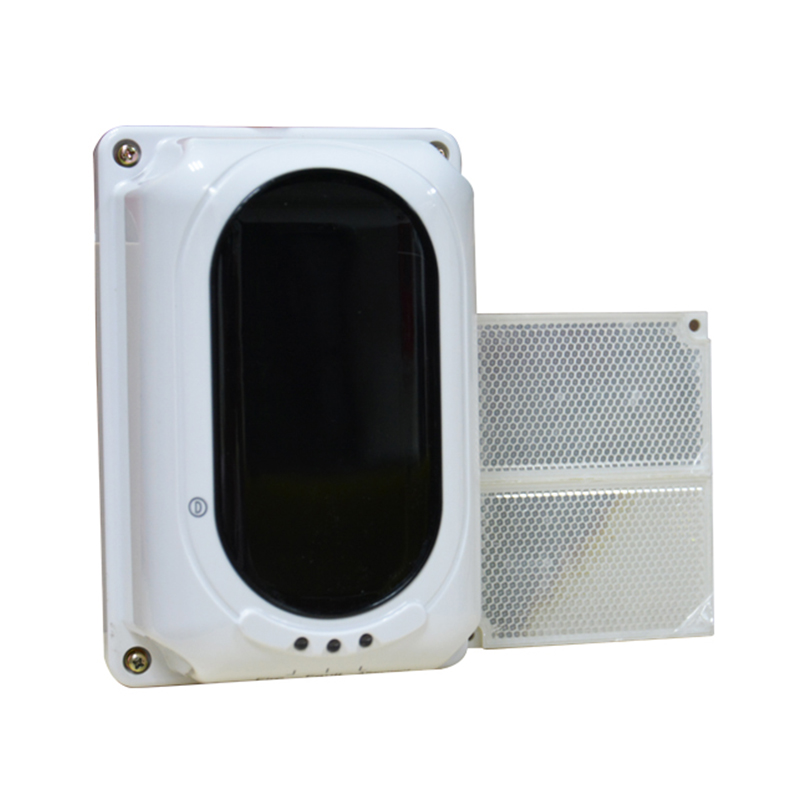

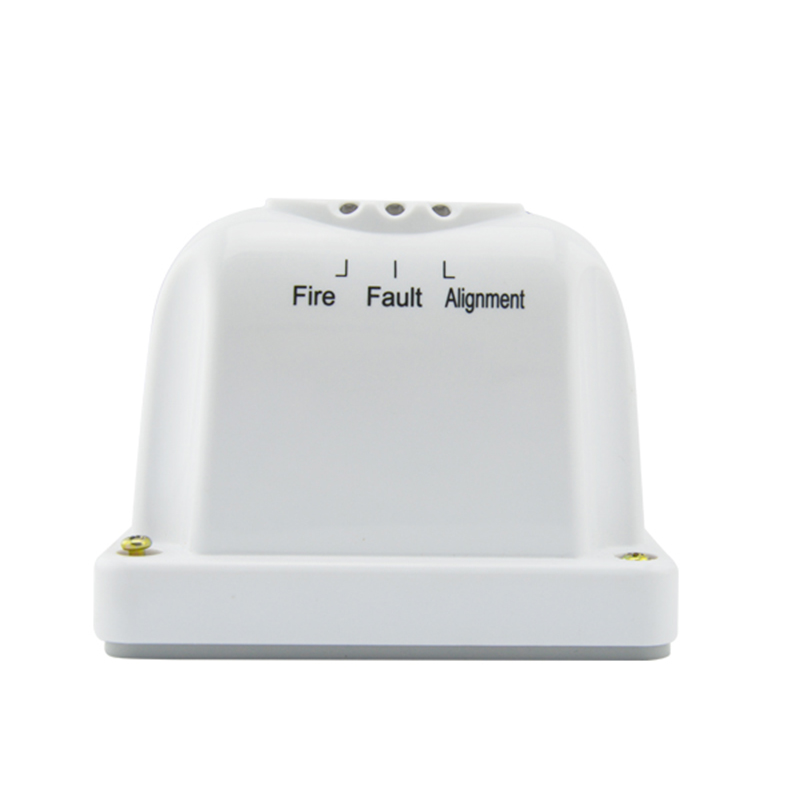

outdoor infrared detector picture
photoelectric beam alarm for conventional system
Outdoor 100m beam alarm infrared detector detail Parameters
| Beam alarm distance | 40m/70m/100m |
| working enviroment beam smoke detector | Warehouse goverment building school hospital comercial building |
| operating voltage | DC16V~DC32V |
External dimension | 206mm×95mm×95 mm |
| Weight | 450g |
| Operating Current |
monitoring current ≤12 mA,
alarm current ≤22mA,
debugging current ≤20mA
|
| Operating Environment | temperature -10°C~+50°C relative humidity ≤95% without condensation |
Certificate of liner 100m beam alarm
