LPCB Approval 1-32 zones conventional firealarm control panel

Click on the image to view the original image

Product：	views：8LPCB Approval 1-32 zones conventional firealarm control panel
Branch：	ASENWARE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 03:20

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ASENWARE

Model Number:: AW-CFP2166

Mode:: AW-CFP2166

Circuits/zones:: 1-32

Voltage:: 110VAC or 240VAC

Internal power supply:: 27.2VDC

Main supply monitor for fault:: Yes

Installation:: Wall hanging

Certificates:: CE.ISO9001

Design principle:: Based on EN54 part 2&4 standard

Company type:: Fire Alarm Manufactor

Produce:: Addressable and conventional fire alarm system

Supply Ability

Supply Ability:: 3000 Unit/Units per Month 14-years fire alarm manufactor

Packaging & Delivery

Packaging Details: PP Bag per Set to protect/Carton Box outside

Port: Zhongshan

1.The conventional fire alarm panel general description:

-- The AW-CFP2166is atranditional type of fire alarm control paneldesigned based on EN54 part 2&4 standard.

--It is steady and widely used to work with other brands fire alarm detectors/sensors like manual call point/break glass, smoke detector, heat detector, combined smoke and heat detector, strobe with sounder, flash light, fire bell, etc.

-- It is modularized design, the panel can extend from 1 zone to 32 zones easily.

2.Details of the conventional fire alarm control unit :

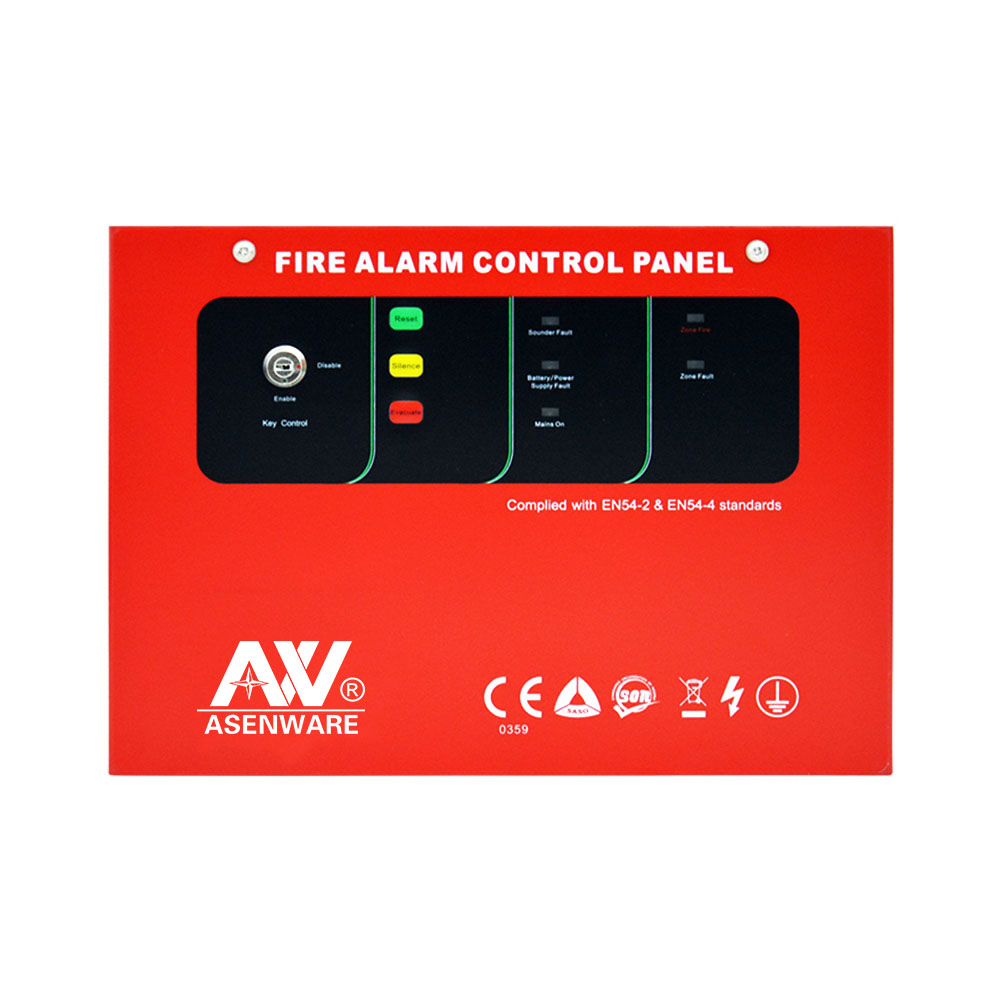

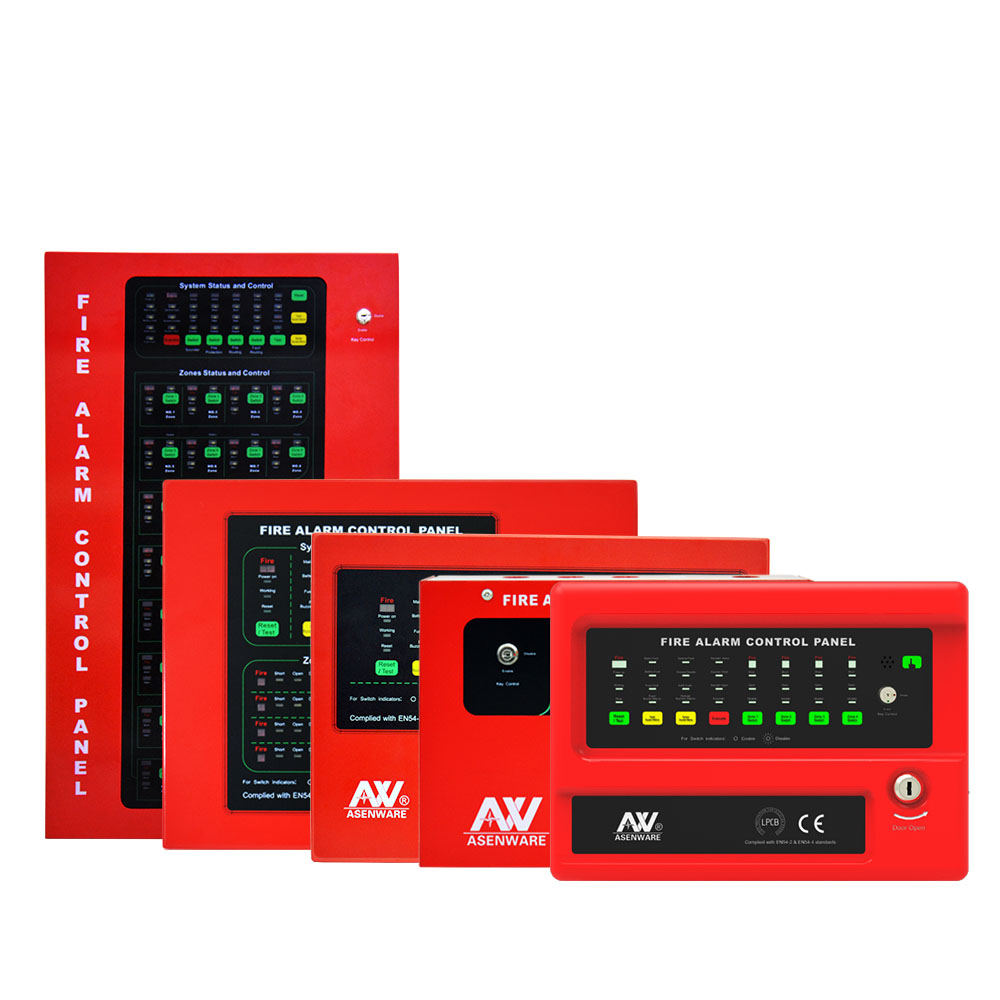

1) The outlook of the conventional fire alarm control panel:

2).The characteristics of the conventional fire alarm control panels:

Model	AW-CFP2166 , 1 to 32 zones
Design principle	The series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
control mode	2 level control mode by a lock
power supply output	27VDC
signal output	Has FIRE PROTECTION, FIRE ROUTING and FAULT signal output; the output can be configured to dry relay type or wet sources type.
sounders output	Has 2 channel general sounders output.
Special function	Each zone has 1 circuit detectors input . Each zone can be disable by a button. It has RESET button to reset the panel. It has SILENCE button to stop BUZZER and SOUNDERS. It has EVACUATE button to start a manual fire alarm immediately. It has TEST button to test all LEDs orderly. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on. It has an optional GSM module for fire alarm by SMS .
Service Environment	industrial and civil buildings factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc.
Advantage	Efficient feedback, steady and easy to work with other brands fire products,Humanization setting, Economic, User friendly,etc.

3. Main technical parameters of AW-CFP2166 fire alarm control panel:

ITEM	1 Zone panel	2 Zone panel	4-8 Zone panel	4-32 Zonepanel
Model No.	AW-CFP2166-01	AW-CFP2166-02	AW-CFP2166-04-16	AW-CFP2166-04-32
Power specification
Mains supply voltage	110VAC or 240VAC
Internal power supply	27.2VDC
Total output current limited	500mA @ 240VAC	500mA @ 240VAC	3A @ 240VAC	3A @ 240VAC
Main supply monitor for fault	Yes
Battery protection for low voltage	Yes
Batteries (default configuration)	12V2AH*2
Detector circuit specification
Number of circuit	1	2	4-16	4-32
Maximum number of smoke/heat detectors per zone	20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts.
Maximum number of manual call points per zone	No limit
Sounder circuit specification
Number of general circuits	2
End of line resistor value	6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold)
Line fault monitor for open circuit	Yes
Line fault monitor for short circuit	Yes
Outputs fused AT	400mA
Maximum number of bells @ 20mA of each sounder output	20
Fuses
27VDC fuse	3A F 20mm
Fire and fault output
Output type	Dry relay output :NC and NO relay; wet source output
Maximum current	100mA
Size and weight
Dimensions(mm)	27220070mm	32023190mm	395X502X124	362X565X124
Weight (without batteries)	4kg	5kg	7kg	8kg
Weight (with batteries)	5.8kg	6.8kg	9.6kg	12.5kg

4. System diagram of the conventional fire alarm panel

5.The Whole Fire Alarm Control Panel System

The conventional fire alarm control system 2166 series matchedthe below detectors and accessories:

1) AW-CSD311:conventional photoelectric smoke detector

2) AW-CTD805: conventional fixed temperature heat detector

3) AW-CSH202:conventional smoke and heat combind detector

4) AW-CMC2166-1, AW-CMC2166-5: conventional manual call point/break glass

5) AW-CSS2166-2: conventional hooter/horn

6) AW-CBL2166-A: conventional fire bell

7) AW-CBL2166: conventional flash light
