Conventional fire alarm fire security system
Specification of Conventional fire alarm fire security system
| Main supply voltage | 110VAC or 240VAC |
| Dimension | 320*231*90mm |
| Weight | 5.66kg |
| Maximun number of smoke/heat detector | 20pcs |
| Maximun number of bells | 20pcs |
| Maximun number of call points | no limited |
| Item | 2 zone |
| Fire security system fire alarm panel manufacture accessories :fire bell/smoke detector/heat detector/fire strobe/call point | |

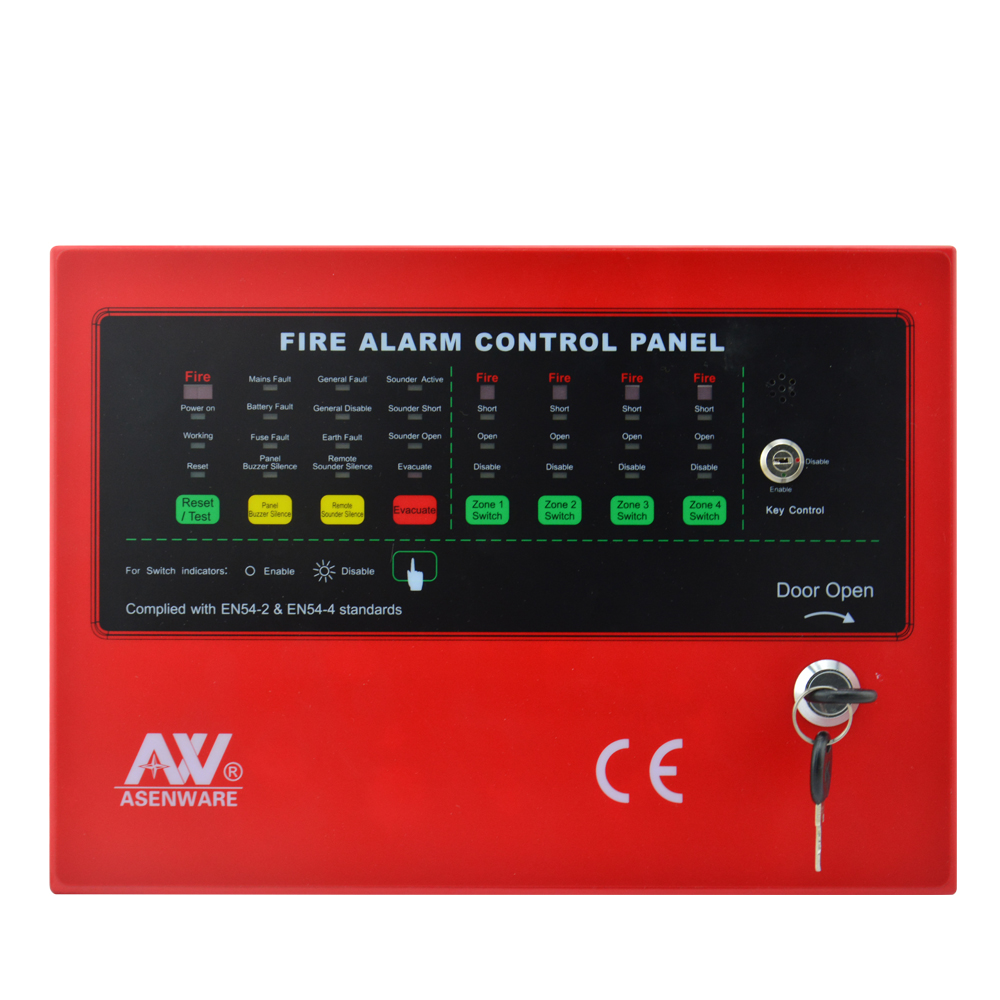

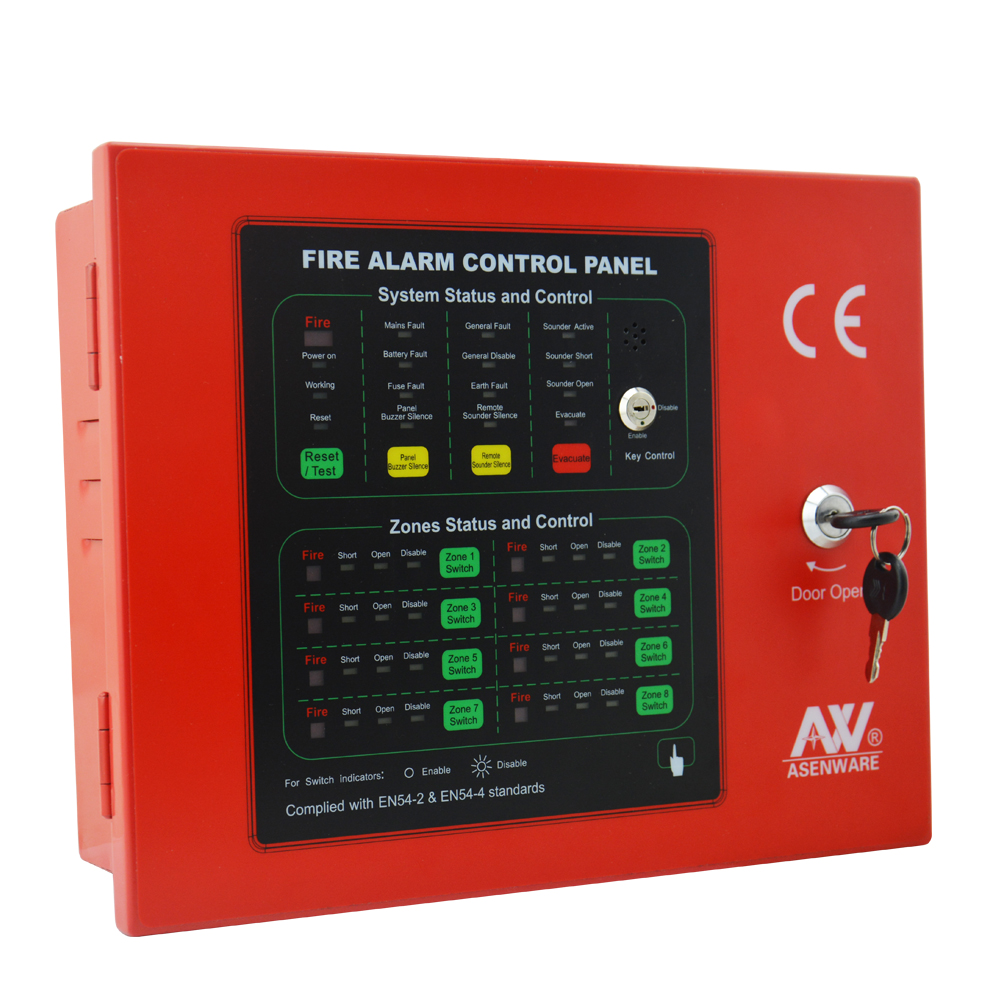

Detail Show of Conventional fire alarm fire security system
Features and Characters of Conventional fire alarm fire security system
1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2. It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3. It has 2 level control mode by a lock
4. It has 24VDC and 5VDC power supply output.
5. It has FIRE and FAULT signal output.
6. It has 2 general sounders output.
7. Each zone has 1 circuit detectors input .
8. Each zone can be disable by a button.
9. It has RESET button to reset the panel.
10. It has SILENCE button to stop BUZZER and SOUNDERS.
11. It has EVACUATE button to start a manual fire alarm immediately.
12. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically
until the mains power is on.
13. It has an optional GSM module for fire alarm by SMS .
14. It is economic, user-friendly and easy maintenance
