1.The addressable fire alarm panel general description:
-- The AW-AFP2189 is a new type of analog fire alarm control panel with the newest non-polarity system and has 324 alarm control points.
-- The intelligent detectors and modules which are characterized by fully mixed coding, non-polarity and two buses.
-- It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
2.The Addressable Fire Alarm Control Panel Details:

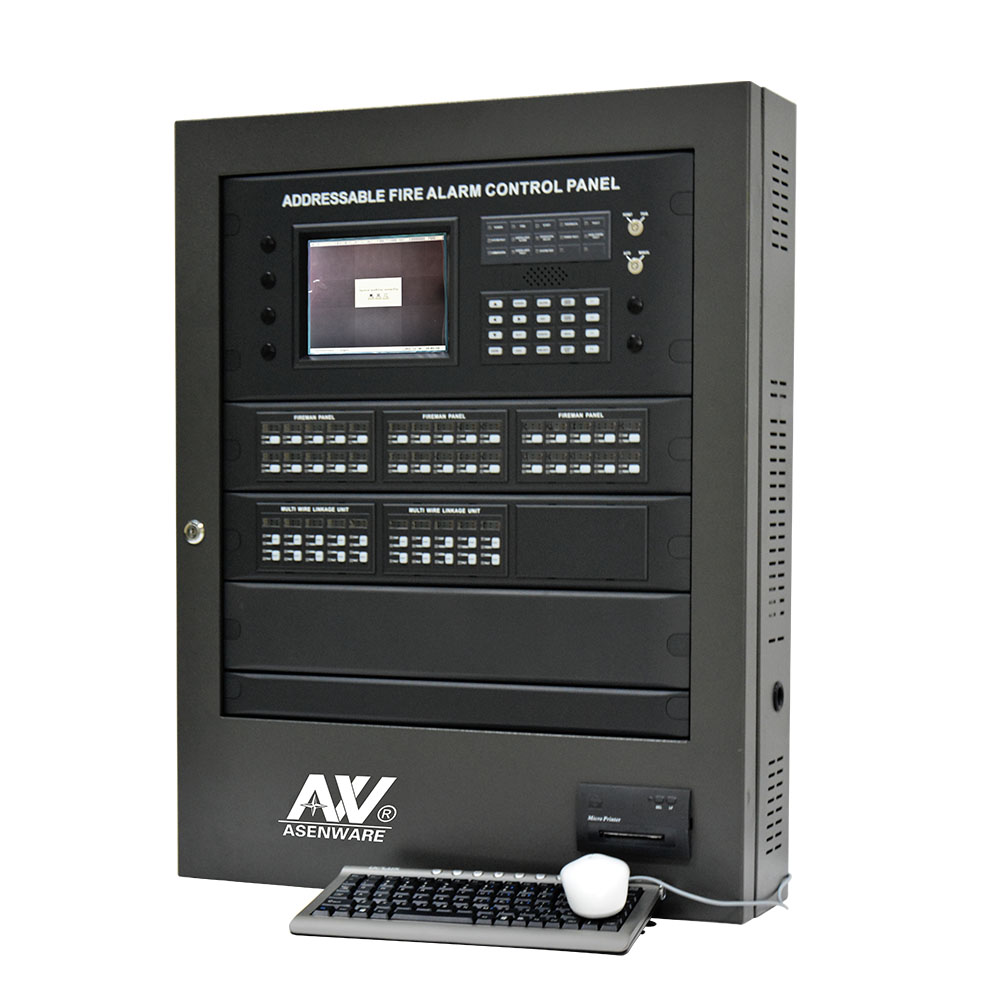

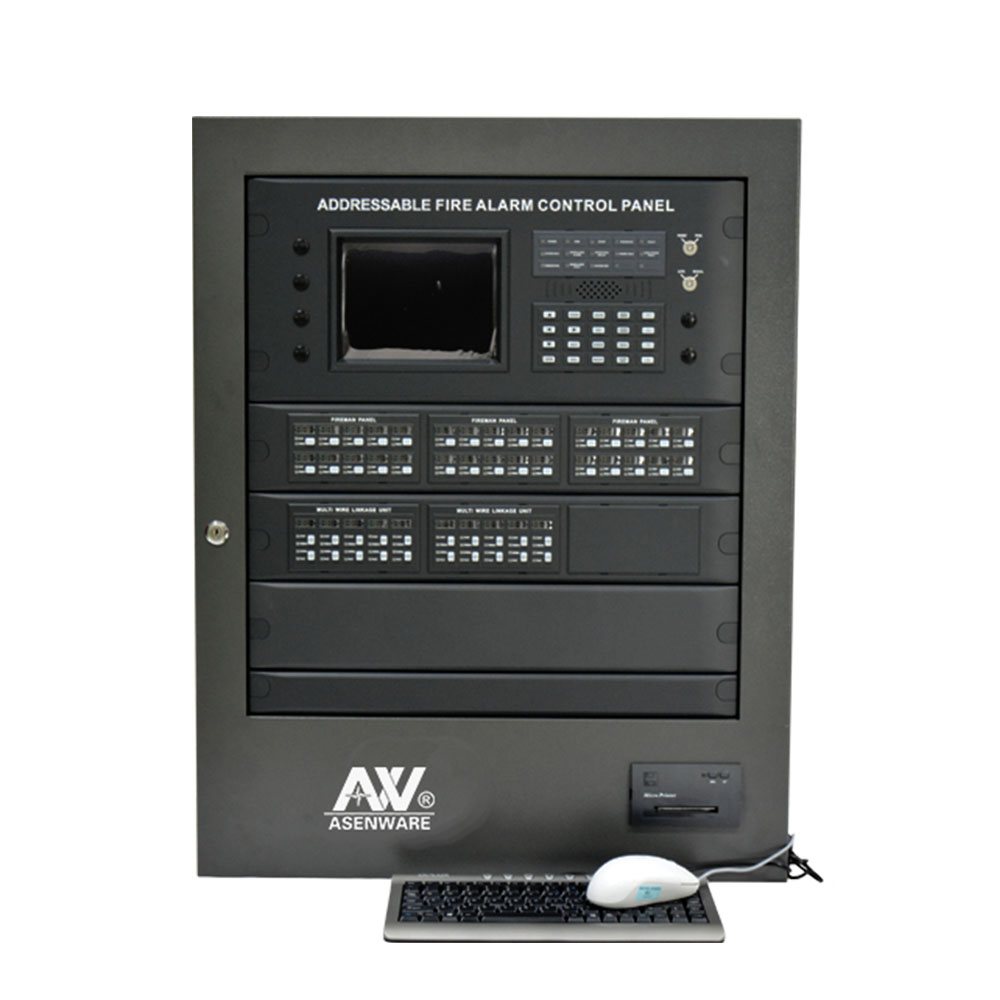

1) The Screen of the addressable fire alarm control panel:
2).The characteristics of the addressable fire alarm control panels:
Model | AW-AFP2189-324 |
Data processing | Collect data:through the internal microprocessors in the intelligent detectors and modulesto realize digital filtering and auto-compensation functions; Carry out data: based on fuzzy control theory and modern fire alarm theory to carry out data processing |
Power supply system | an AC-DC master-standby power supply system |
| can be connected to a special mini-printer |
| can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment. |
For the users | be equipped with eight bus manual control points, which makes it very easy for the user to control related equipment. |
industrial and civil buildings factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc. | |
Advantage | Accurate and efficient feedback, Humanization setting, Economic, User friendly,etc. |
3. Main technical parameters
Main technical parameters of AW-AFP2189 fire alarm control panel: | |
AW-AFP2188 system capacity | 324 points (non-polarity, two wire bus, fully mixed coding) |
AC input voltage | AC 220V±20% 50Hz |
DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
AC input power | 120W |
Circuit bus | two-wire system |
Total length | ≤1500m |
Voltage UL of the circuit bus | +20V≤UL≤+26V(when the DC power is operating) +24V≤UL≤+26V(when the AC power is operating) |
System working conditions
| 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A |
4. System diagram of the addressable fire alarm panel
5.The Whole Fire Alarm Control Panel System
The addressable fire alarm control system 2188 series matchedthe below detectors and accessories:
1) AW-ASD2188:addressable photoelectric smoke detector
2) AW-ATD2188:addressable fixed temperature heat detector
3) AW-AMC2188:addressable manual call point
4) AW-ASS2188:addressable hooter/horn
5) AW-AIO2188-IN:addressable input module
6) AW-AIO2188-OUT:addressable out module
7) AW-CODER2188:coder for setting address.
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
Feel free to contact for more details!
Contact : Vita Liu
Tel:008613632518608
