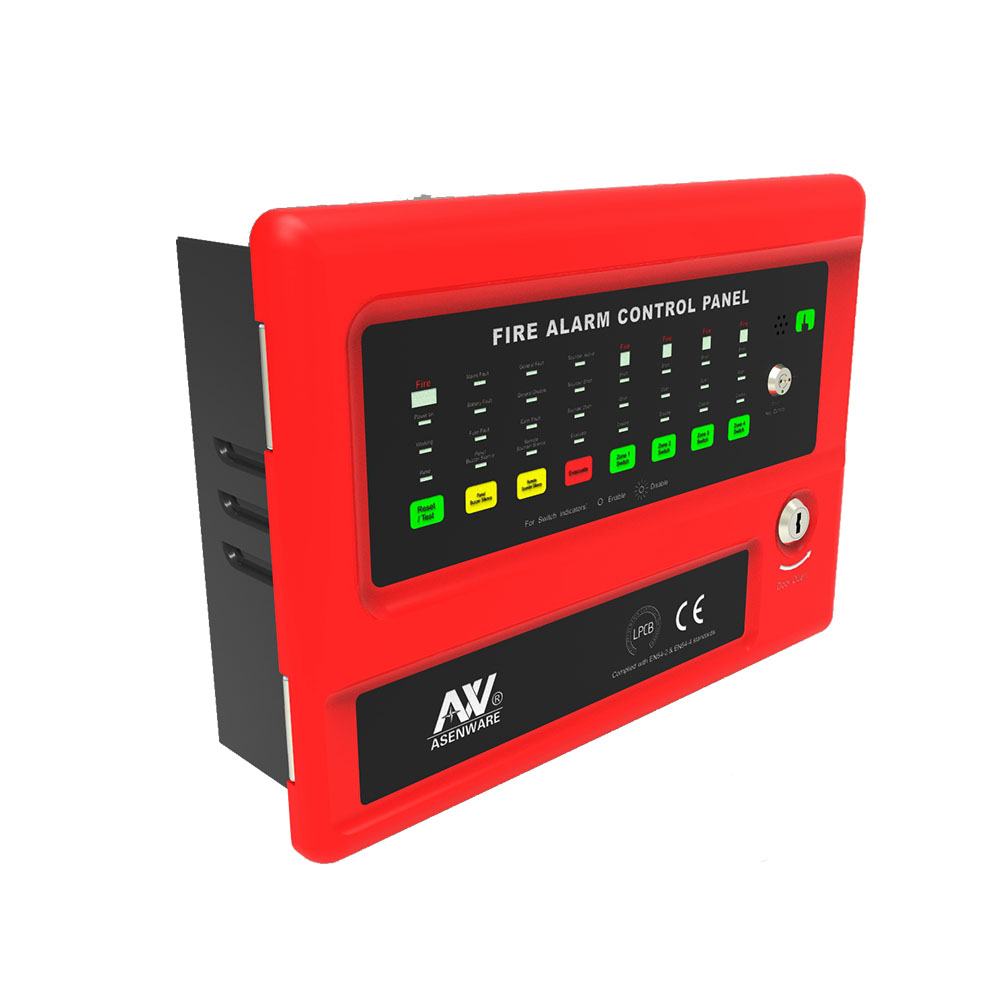

Customized Conventional Fire Alarm Control Panel AFP2166
Basic Introduction of Conventional Fire Alarm Control Panel Manufacturers
Model | Conventional Fire Alarm Panel AW-CFP2166 (1-32 Zone)
|
Matched | Conventional Smoke Detector/Heat Detector/Manual Call Point Fire alarm bell/Strobe horn/Flash light
|
Working Environment | industrial and civil buildingsrestaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms,
|
Benefits | wiring your building into different zones, economical
|
Conventional Fire Control Alarm Panel system Detailed Show
Factory Conventional Fire Control Alarm Panel system Parameters.
ITEM | 1Zone panel | 2Zone panel | 4-8 Zone panel | 12-32 Zone panel |
Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-8 | AW-CFP2166-12-32 |
Power specification | ||||
Mains supply voltage | 110VAC or 240VAC | |||
Internal power supply | 27.2VDC | |||
Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
Main supply monitor for fault | Yes | |||
Battery protection for low voltage | Yes | |||
Batteries (default configuration) | 12V2AH*2 | |||
Detector circuit specification | ||||
Number of circuit | 1 | 2 | 4-16 | 4-32 |
Line fault monitor for open circuit | Yes | |||
Line fault monitor for short circuit | Yes | |||
Line fault monitor for detector removal | Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor | |||
End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
Detector continuity diodes | Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault) | |||
Call point resistor value | 470 to 680 Ω, 0.225 or 0.5 watt | |||
Maximum number of smoke/ | 20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts. | |||
Maximum number of manual call points per zone | No limit | |||
Sounder circuit specification | ||||
Number of general circuits | 2 | |||
End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
Line fault monitor for open circuit | Yes | |||
Line fault monitor for short circuit | Yes | |||
Outputs fused AT | 400mA | |||
Maximum number of bells @ 20mA of each sounder output | 20 | |||
Size and weight | ||||
Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395X502X124 | 362X565X124 |
Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg | 12.5kg |
The Whole Conventional Fire Control Alarm Panel system Overview
Features and Characters of Conventional Fire Control Alarm Panel system AW-CFP21662188
1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard. It is modularized design;
the panel can extend from 1 zone to 32 zones easily.
2. Each zone has 1 circuit detectors input. Each zone can be disabled by a button.
3. It has RESET button to reset the panel. It has SILENCE button to stop BUZZER and SOUNDERS.It has EVACUATE button
to start a manual fire alarm immediately. It has battery low protection function, when battery voltage lower than 21VDC,
battery will be cut off automatically until the mains power is on.
4. It has an optional GSM module for fire alarm by SMS .it is economic, user-friendly and easy maintenance.
