Sensitive Gent Fire Alarm System Rohs AFP2100
Basic Introduction of the Addressable Fire Alarm Control Panel
1. The addressable fire alarm control panel is a dual wire analog bus system, it can replace the conventional fire alarm control system to save 50% or more cables. 2. Each detector, module, manual call point, horn, strobe ,hydrant has its own independent address, the fireman or the guard can find the exact fire alarm address instead of a wide area in conventional system. 3. The JB-QBL-2100 series addressable fire alarm control panel is an advanced, perfect and reliable system, it has been used in many countries. 4. 2-wire intelligent fire alarm control panel is compatible with listed intelligent detector, intelligent module , intelligent call point, intelligent horn/strobe etc. |

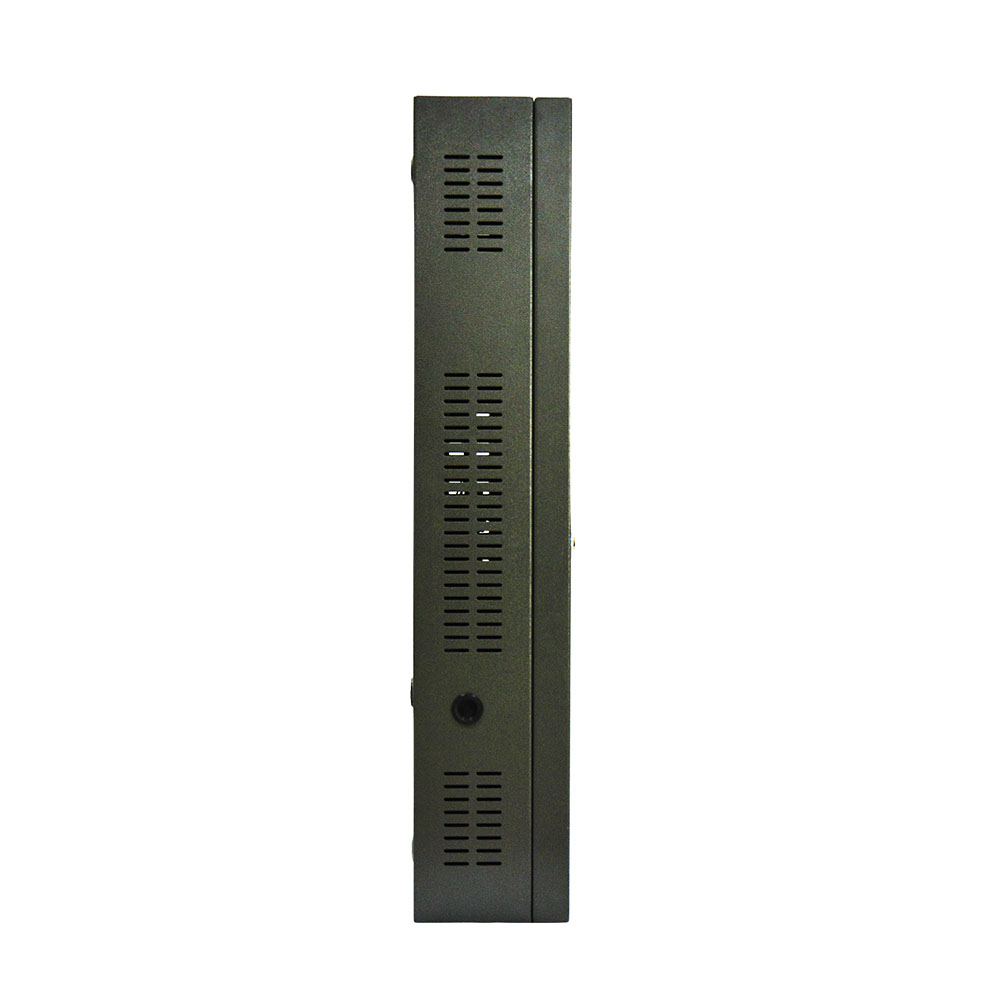

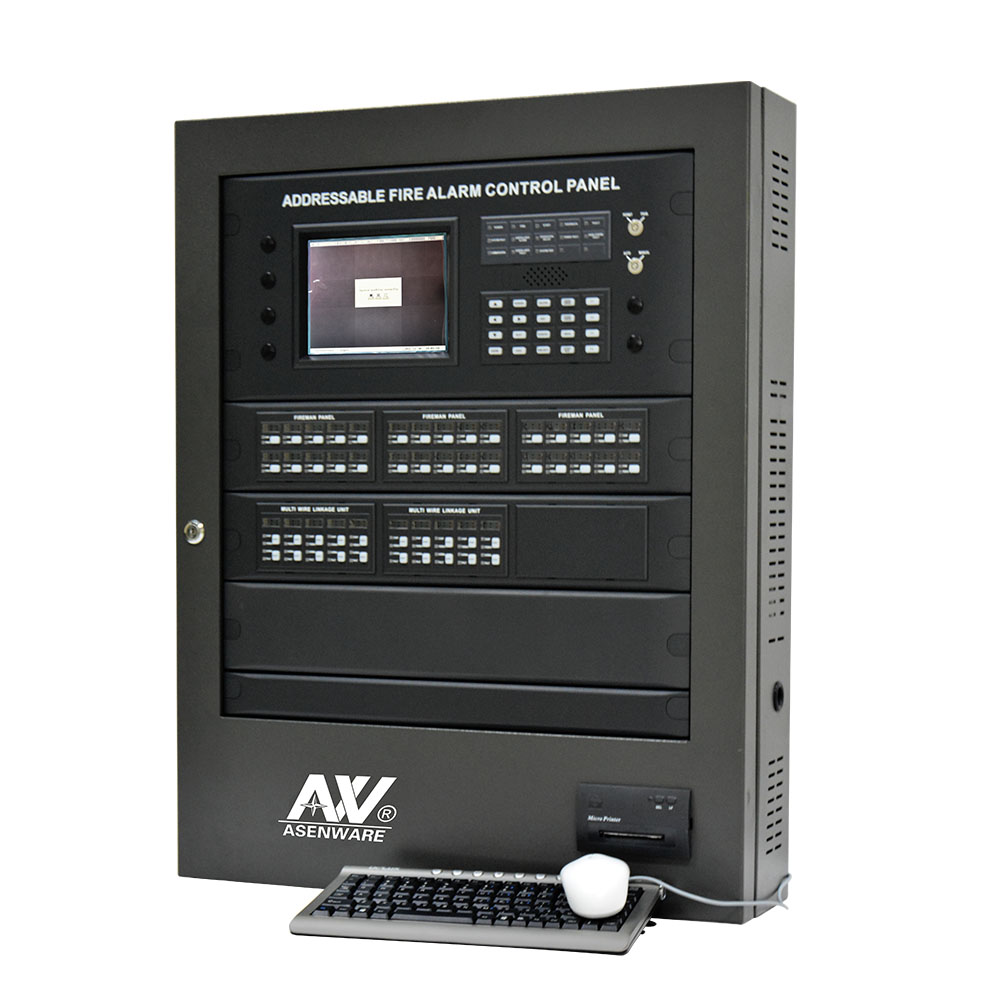

Detailed Addressable Fire Panel Picture.
Overview of the Addressable Fire Alarm Control Panels
Model | 2 Loops Fire Alarm Control Panel AW-AFP2100 |
Matched Detector&Accessories | Smoke Detector/Heat Detector/Manual Call Point Hooter/Input-Output Module. Coder |
Working Environment | industrial and civil buildings restaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, |
Benefits | Point reporting/Addressable sensor and module/ Communicate with PC via USB |
Whole Series Addressable Fire Panel Working Picture
Fire Alarm Panel Functional characteristics
-- The fire alarm panel has 2 type
wall mounted type can have maximum 3 loop cards, total 324*2*3=1944 points
the cabinet type can have maximum 40 loop cards ,total 324*2*40=25920 points.
Maximum 20 panels can connect to each other in a network
-- 2-wire communication between detector/module
-- Each detector sensitivity adjustable
-- Field-programmable with PS/2 standard PC keypad and mouse
-- CF card duplicate or reset system setup file and history file to facilitate maintenance
-- Communicate with PC via USB
-- Zone, building or floor display
-- CRT visually display the location of fire and trouble
-- Eleven users each with a password and selectable access levels
