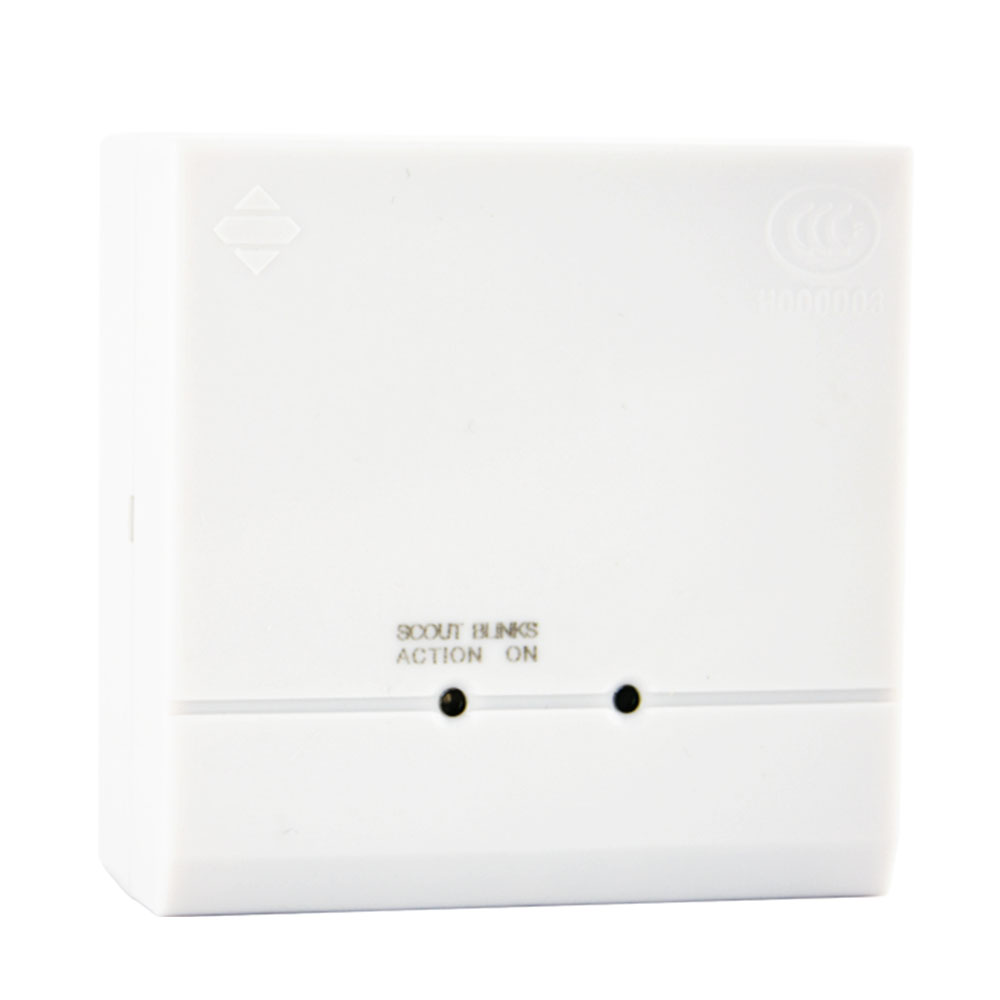

Intelligent Addressable Input Module for Alarm System
Click on the image to view the original image
Product： views：4Intelligent Addressable Input Module for Alarm System
Branch： Asenware
Type： Voltage Regulator
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 03:20
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-AIO2188-IN
Operating Temperature:
-10~50℃
Dissipation Power:
4.7K resistance
Type:
Voltage Regulator
Application:
Alarm
Supply Voltage:
24V
Design:
OEM/ODM
Circus Bus:
2 bus system
Voltage:
24V
Dimension:
86*86*40(mm)
Certificates:
CE.ISO9001
Supply Ability
Supply Ability:
50000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fire Alarm Input Module: Suitable Carton Box with Foam to keep items safe
Port
Shenzhen

Intelligent Addressable Input Module for Alarm System

Addressable Fire Alarm input module Overview



1.  The AW-AIO2188-IN Intelligent input module is used with AW-AFP2188,a two-bus fire alarm control panel.

2.   It can be connected with a conventional smoke detector, a conventional heat detector, a conventional manual call point,

 a conventional hooter/horn and some other equipment.

3.   After the said equipment starts to operate, the alarm signal output will be sent by the AW-AIO2188-IN module to the fire alarm control panel through a signal bus to give a fire alarm.



Fire Alarm Input Module Detailed pic







Addressable Fire Alarm Addressable Input Module Basic introduction

Name

Addressable input module

Model

AW-AIO2188-IN

Features

DC24V

Weight

130g

Matched

Host Machine

Addressable Fire Alarm Control Panel AW-AFP2188



















The Whole Fire Alarm Control Panel with Detectors and Modules



Addressable Input Module for Fire Alarm Panel Technical Parameters

1. Mode of operation: Nonpolar two-wire system
2. Quiescent current: <0.5mA (bus); <6mA (power line)
3. Action current: <2mA (bus); <15mA (power line)
4. Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status.
5. Operating environment: Temperature: -10°C~50°C; relative humidity: ≤95% (40°C±2°C, without condensation)
6. Terminal load: 4.7K resistance
7. External dimensions: 86×86×40(mm)
8. Weight: about 119g
9. Executive standard: GB16806-2006
