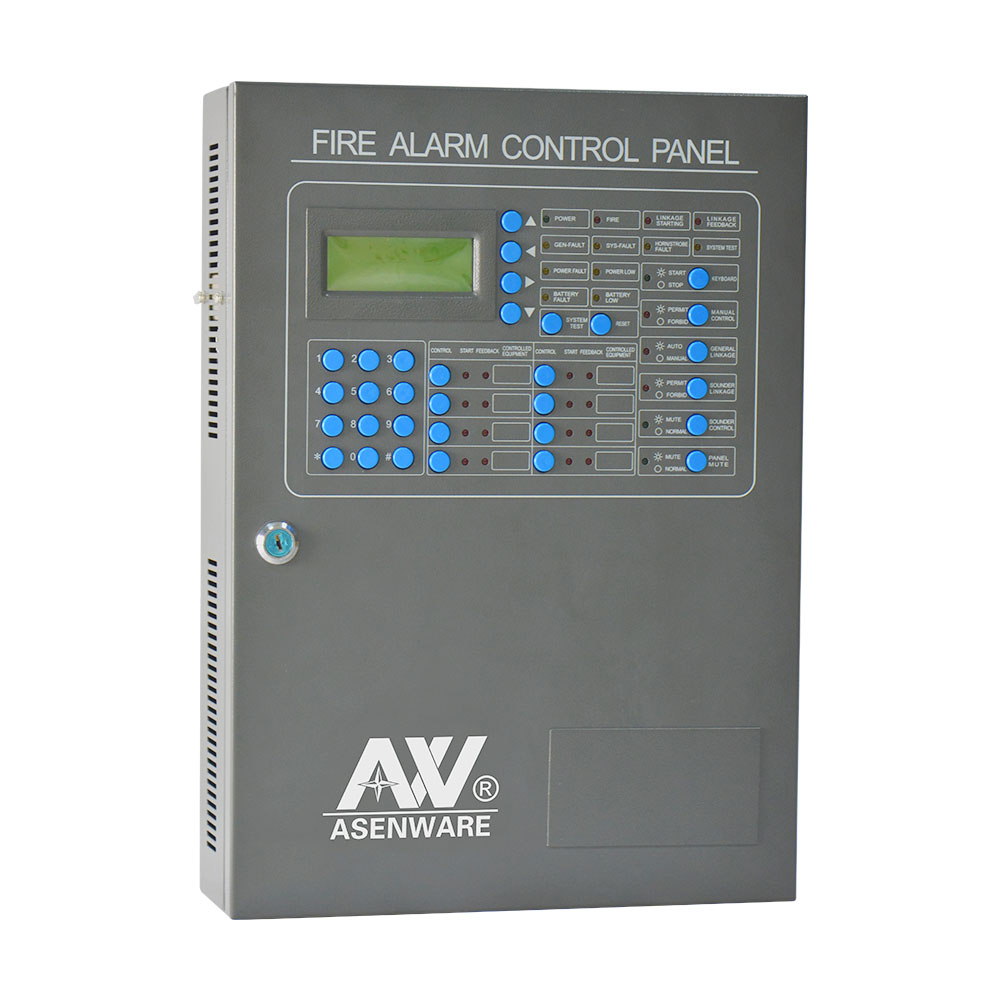

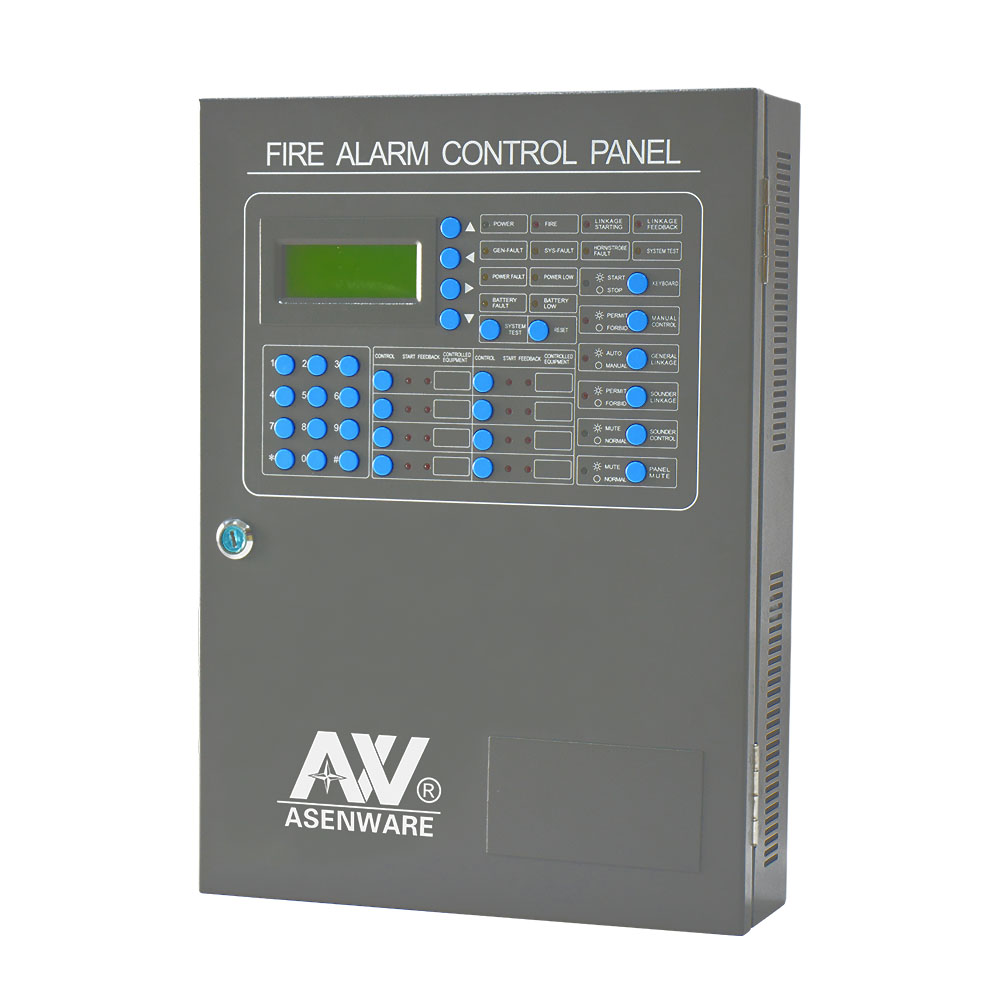

FACP Asenware Fire Alarm Panels AFP2188
Basic Introduction of the addressabl fire alarm panels
Model | AW-AFP2188-100: 100 addresses panel |
AW-AFP2188-200: 200 addresses panel | |
AW-AFP2188-324: 324 addresses panel | |
Matched Detector&Accessories | Smoke Detector/Heat Detector/Manual Call Point Hooter/Input-Output Module. Coder |
Working Environment | industrial and civil buildings restaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, |
Benefits | Point reporting/Addressable sensor and module |
Addressable Fire Alarm Control Panel Detailed Show
1.--The AW-AFP2188 is a new type of analog fire alarm control panel which has 324 alarm control points
2.--Detectors and modules which are characterized by fully mixed coding, non-polarity and two buses.
3.--It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System
for Fire Protection (GB16806-2006).
The main parameters of addressable fire alarm panels as follow: | |
AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |
AC input voltage: | AC 220V±20% 50Hz |
AC input power: | 120W |
System working conditions
| 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A |
The Whole Fire Alarm Control Panel with Detectors and Modules
Features and Characters of Addressable Fire Alarm Panel AW-AFP2188
1.--The intelligent detectors and the intelligent modules have internal microprocessors to realize digital filtering and
auto-compensation functions;
2.--the data collection is true and reliable; the AW-AFP2188 control panel can carry out data processing based on
fuzzy control theory and modern fire alarm theory,
in order to fundamentally avoid missing alarms and to reduce false alarms, so as to improve reliability.
3.--The detectors have a sensitivity setup function and can adjust the alarm sensitivity according to the specific
environment and their influences.
4.--The detecting bus and the control bus share a two-wire structure and have non-polarity and fully mixed coding of the detectors and modules, and they can be directly connected to them, which greatly simplifies the system wiring,
engineering installation and circuit maintenance.
5.--The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing.
