Asenware Red Manual Call Point EN54 AMC2188

Addressable Manual Call Point Product Overview

1.  The AW-AMC2188 addressable manual call point is mainly designed to be used with an intelligent two-bus control panel.

2.  If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control panel which will,

after receiving the alarm signal, display the coded address and the equipment status of the manual call point.

3.   When the manual call point is operating normally, the red indicator will blink; when there is a fire alarm,

 it will remain lit.

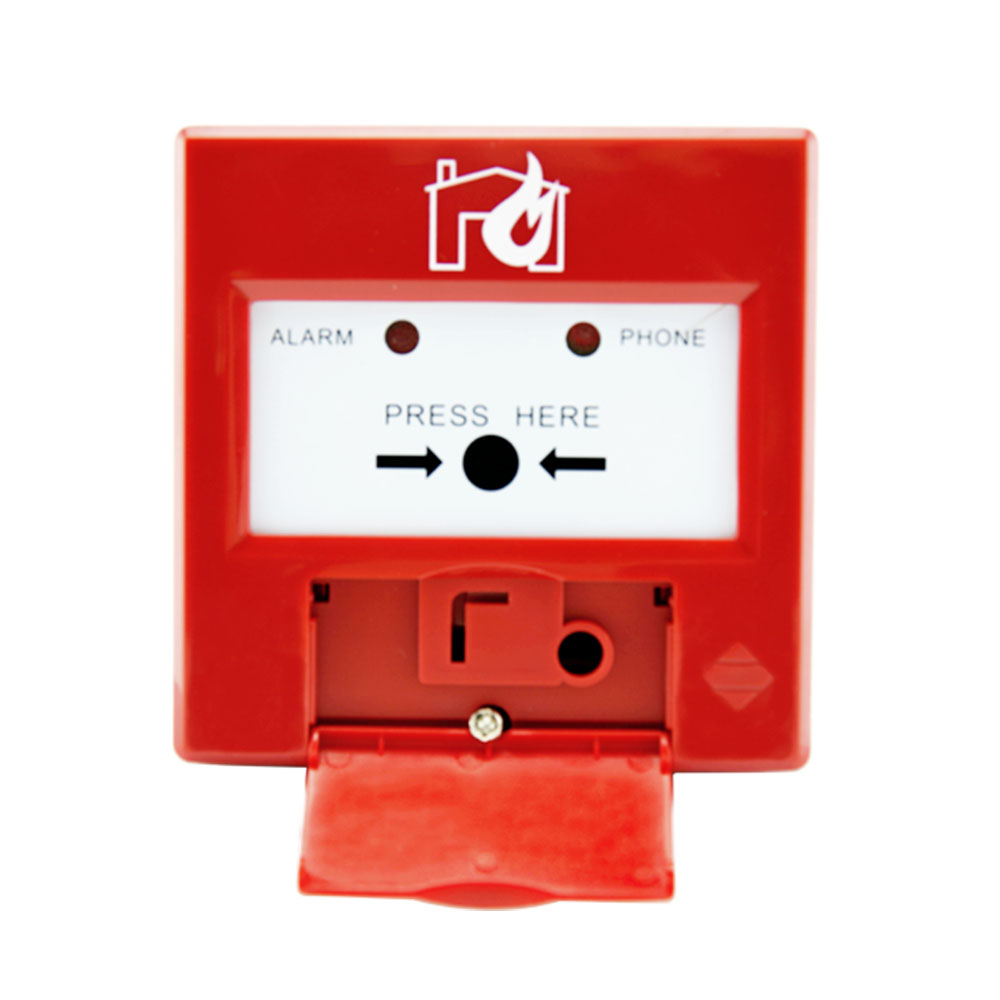

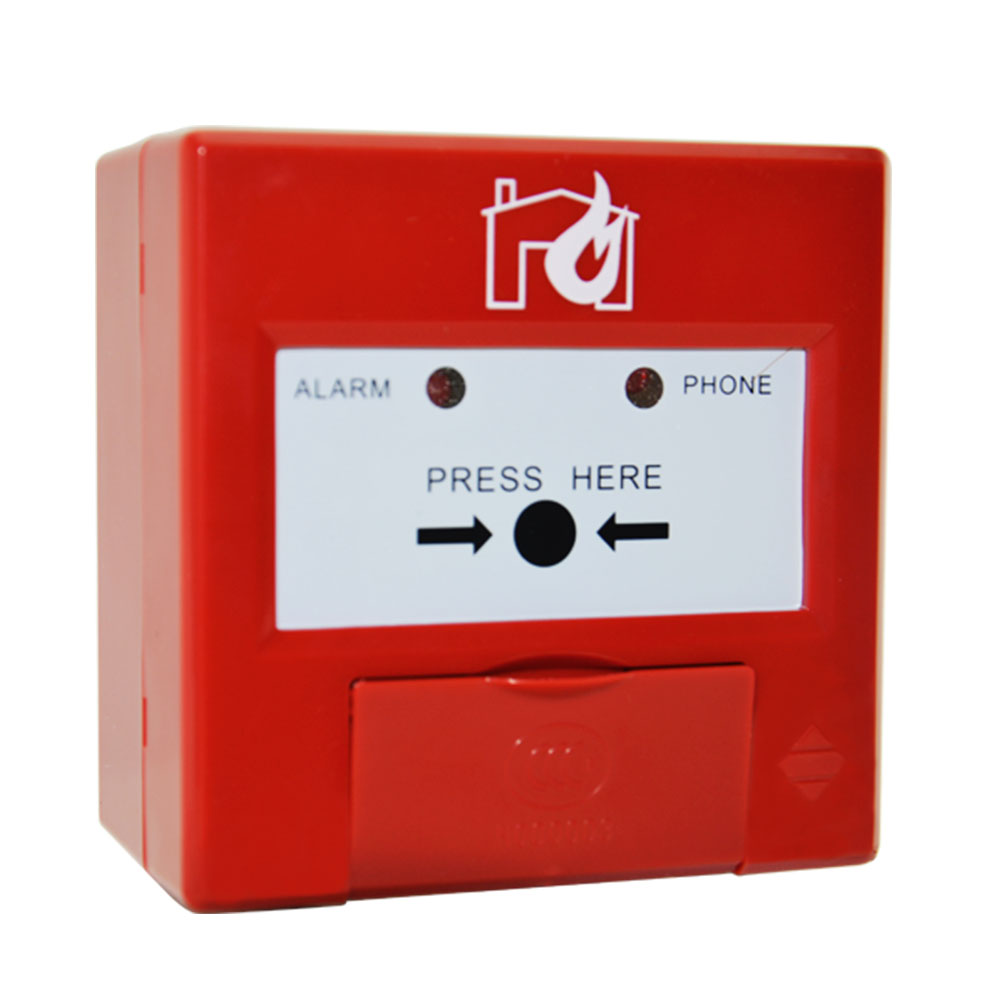

 Detailed Picture of Addressable Manual Call Point

Manual Call Point Technical Parameters

Executive standard:  GB19880-2005
Operating voltage:  24V (pulse modulation)
Operating current:  <300uA (in the monitoring status); <2mA (in the action status)
Output contact: Normally open contact; capacity: 0.1A/30VDC
Wiring method:  nonpolar two-bus system (L1, L2)

Operating environment:  Indoor, temperature: -10°C~+50°C; relative humidity: ≤95% (40°C±2°C, without condensation)
Telephone jack:  Two-wire fire telephone jack (equipped with a standard 6.3 single-track audio connector).
Starting part:  A plastic pressing sheet that may be used repeatedly. It can be manually reset with a special tool after being pressed.
Starting mode:  Press the pressing sheet manually.
Indicator: The red ALARM indicator will blink in the inspection status or remain lit in the alarm status; the PHONE indicator will blink when a fire telephone loop is connected, otherwise it will be out.
