Fire Alarms Addressable Wireless Heat Detector ATD2188
Heat Detector Basic Introduction
1.--addressable heat detector is a mated product of the 9000 series fire alarm control panels.
It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding.
2.--The detector realizes real-time acquisition of the in situ smoke concentration data
And sends back the data to a fire alarm control panel.
3.--It can also receive and execute the control commands given by a fire alarm control panel.
Addressable Heat Detector/Sensor/Alarm | |
Name | Addressable Fixed Temperature Heat Detector |
Model | AW-ATD2188 |
External Specification | Diameter 100mm Height 56mm (With Base) |
Weight | 47G |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Installation height | ≤8m |

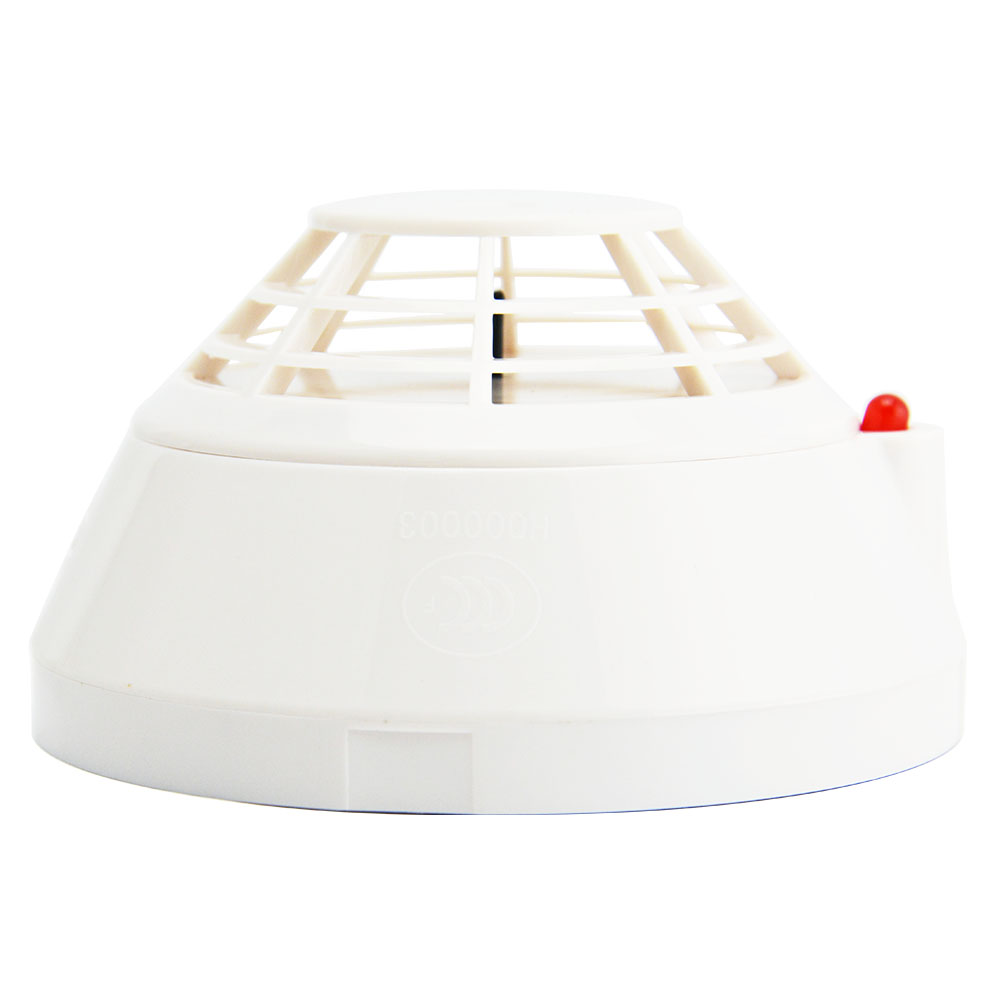

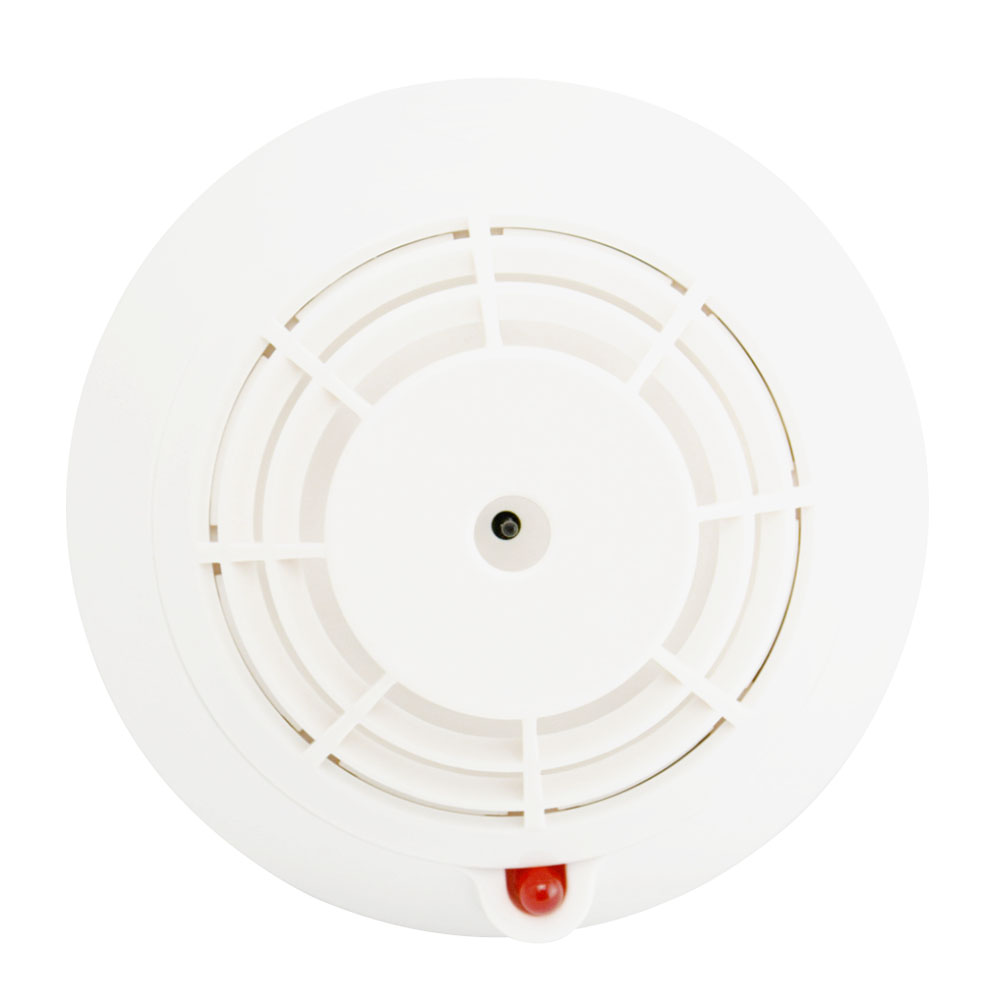

Detailed Picture of the Heat Sensor
Temperature Heat Detector/Alarms Technical Parameters
1.Executive standard: GB4716-2005
2.Operating voltage: 24V (pulse modulation)
3.Operating current: <300uA (monitoring status) or <1.5mA (alarm status)
4.Product class: A2
5.Wiring method: non-polarity two-bus system (L1, L2)
6.Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.
Heat Detector Features and Benefits
1.--It can realize electronic coding and rewrite the address via coder in situ. Within a single-chip microcomputer, |
2.-- It has a temperature compensation function and a sensor fault detection function (fault reporting to fire alarm control panel). |
3.--Non-polarity, two-bus connection that ensures convenient installation and maintenance. |
4.--Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently. |
