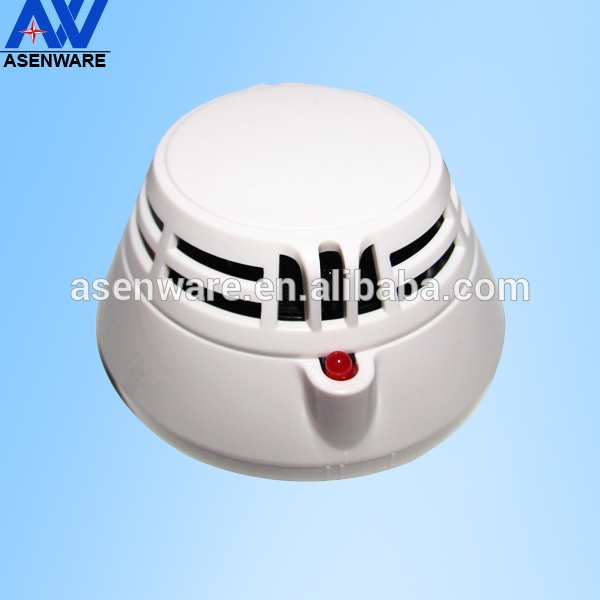

Addressable fixed fire alarm temperature and heat detector
Features andTechnical parameters
1. Executive standard: GB4716-2005
2. Operating voltage: 24V (pulse modulation)
3. Operating current: <300uA (monitoring status) or <1.5mA (alarm status)
4. Work indication: The red indicator will blink in the monitoring status or remain lit in the alarm status.
5. Weight: about 47g
6. Product class: A2
7. External dimensions: diameter: 100mm, height: 56mm (with the base)
8. Wiring method: non-polarity two-bus system (L1, L2)
9. Operating environment: Indoor, temperature: -10°C~+50°C; relative humidity: ≤95% (40°C±2°C,
without condensation)
10. Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.
11. Installation height: ≤8m
12. Protection area: about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic
Fire Alarm System.

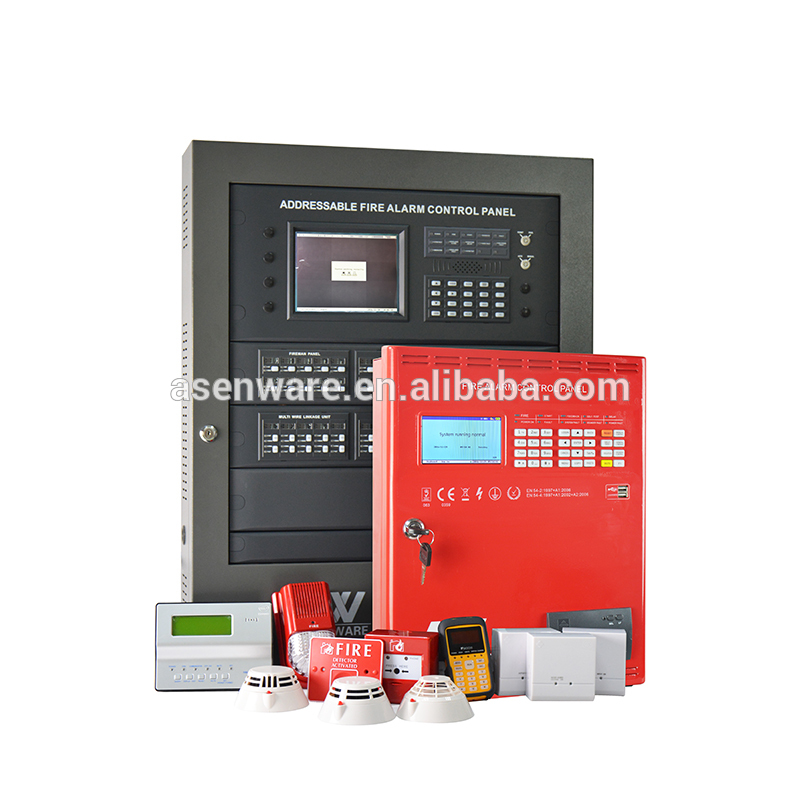

13. Matched host machine: fire alarm control panel (such as AW-AFP2188)
As the pics shows:
1. It can realize electronic coding and rewrite the address via coder in situ.
2. Within a single-chip microcomputer, it can realize real-time data acquisition and
processing, realize a curve tracing for the field situation.
3. It has a temperature compensation function and a sensor fault detection function
(fault reporting to fire alarm control panel).
4. Non-polarity, two-bus connection that ensures convenient installation and
maintenance.
5. Designed with an upper cover and a lower cover and installed on an independent
base, it can be installed, debugged and maintained conveniently.
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
