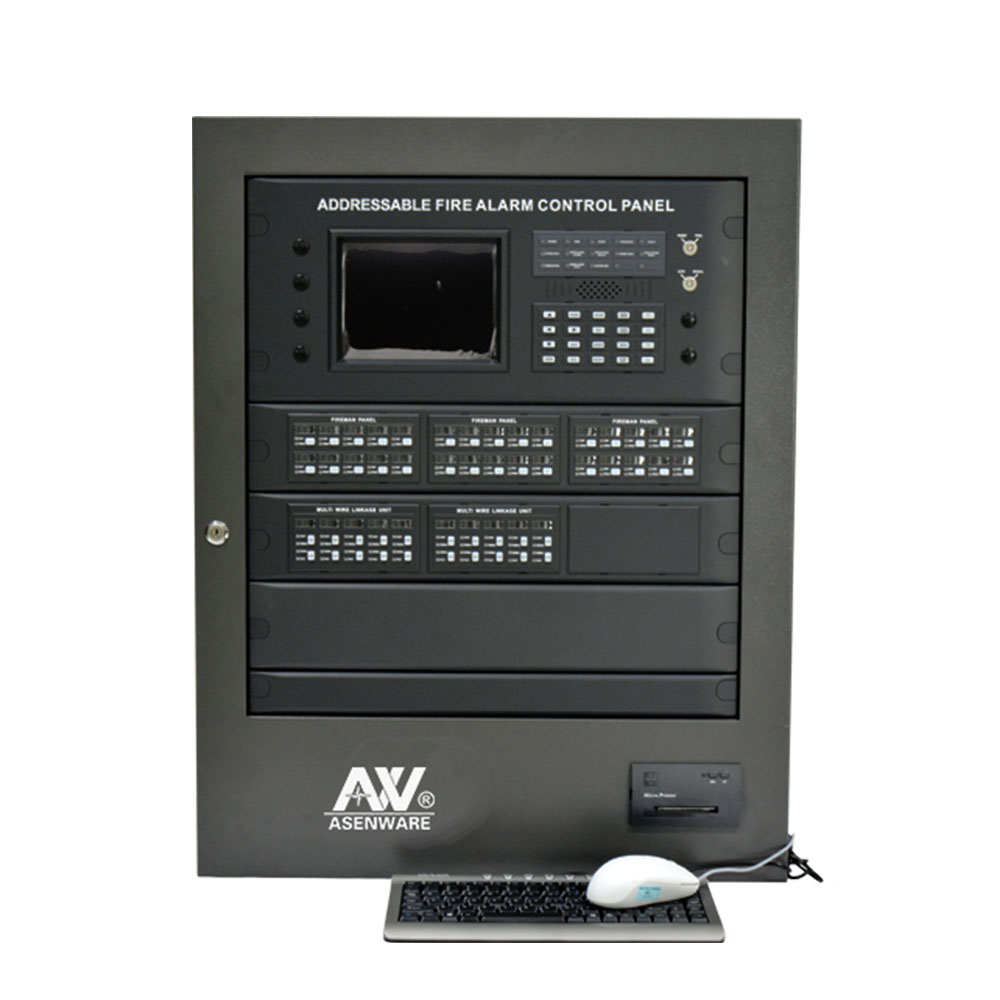

Addressable fire alarm control panel pictures
Addressable fire alarm control panel specification:
| Addressable fire alarm control panel | |
| Working Environment: | In door temperature:-10°C to +55°C |
| RH:≤95%(40°C±2°C without condensation) | |
| System Capacity: | 648, 1298, 1944 alarm points |
| Working voltage: | AC 220V/50Hz |
| Bus linkage: | 30 points |
| Multi-wire linkage: | 10 points |
| Printer: | Standard |
| Stand powder: | DC24V/7Ah |
Addressable fire alarm control panel characters:
1.It adopts new generation high-speed microprocessor technology that has a data processing speed and a data storage capacity 100 times and 1000 times higher than that of conventional technology respectively.
2.Its operating interfaces simulate the menus and interfaces of Windows and therefore ensure operation habits similar to that of computers, making it easy to learn.
3.It uses standard a PS/2 computer keyboard and mouse as on-site programming devices with flexible and convenient control and free Chinese input through a Pinyin method.
4.It can copy or restore both setting files and historical files through a CF intelligent storage card (optional), making system maintenance convenient.
5.It adopts the non-polarity two-bus intelligent alarm linkage mode and has at most 324 intelligent detectors or modules for a single circuit. The addresses of the intelligent detectors or modules may be totally hashed.
6.It is equipped with multiple high-speed CAN-bus interfaces, ensuring quick and reliable data transmission.
7.It may be connected with a multi-line linkage control unit with a maximum capacity of 4,000 points and a bus manual control panel.
8.It has 2 type : the wall mounted type can have maximum 3 loop cards, total 324*2*3=1944 points;
the cabinet type can have maximum 40 loop cards, total 324*2*40=25920 points. Maximum 20 panels can connect to each other in a network.
Addressable fire alarm control system accessoreis
1. AW-ASD2188: addressable photoelectric smoke detector
2. AW-ATD2188: addressable heat detector
3. AW-ASH2188: addressable smoke and heat combined detector
4. AW-AMC2188: addressable manual call point
5. AW-ASS2188: addressable hooter/horn
6. AW-AIO2188-IN: addressable input module
7. AW-AIO2188-OUT: addressable out module
8. AW-AIO2188: isolated model
9. AW-GSM100: GSM module
10. AW-CODERF900E: coder for setting address
11. AW-RP2188: repeater
Packing:
1) Wrapped by PP bag
2) Cartons
3) Pallets or plywood case for sea shipping
Shipping
1.Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
2.Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service.
3.In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Company
Exihibtion room
Factory
Certificate
Service
1.Addressable fire alarm control panel technical support: Yes
2.Addressable fire alarm control panel after sale service: Yes
3.Addressable fire alarm control panel OEM/ODM: Yes
4.Addressable fire alarm control panel wanrrantyt: 1 year
FAQ
| 1.MOQ: 1 pcs |
| 2.Delievry time :generally 2 to 7 days .Mass product will be more. |
| 3.Payment terms :T/T L/C or Western union. |
4.Payment: T/T or Western Union |
| 5.Contain Battery: No. If you need battery,pls tell me. |
