AWSENWARE 1-32 zone conventional fire alarm panel
Conventional fire alarm panel specification
Model NO.: | AW-CFP2166- 01 | AW-CFP2166- 02 | AW-CFP2166- 04-8 | AW-CFP2166- 12-32 | ||
Number of circuit | 1 | 2 | 4-16 | 4-32 | ||
Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC | ||
Mains supply voltage | 110VAC or 240VAC | |||||
Internal power supply | 27.2VDC | |||||
Dimensions (mm) | 272*200*70mm | 320*231*90mm | 395*502*124mm | 362*565*124 mm | ||
Weight (without batteries) | 4kg | 5kg | 7kg | 8kg | ||
Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg | 12.5kg | ||
Conventional fire alarm panel feture
1.AW-CFP2166 series conventional fire alarm control panel is designed based on EN54 part 2&4 standard.
2.It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3.It has 2 level control mode by a lock
4.It has 24VDC and 5VDC power supply output.
5.It has FIRE and FAULT signal output.
6.It has 2 general sounders output.
7.Each zone has 1 circuit detectors input .
8.Each zone can be disable by a button.
9.It has reset button to reset the panel.
10. It has SILENCE button to stop BUZZER and SOUNDERS.
11.It has EVACUATE button to start a manual fire alarm immediately.
12.It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically
until the mains power is on.
13.It has an optional GSM module for fire alarm by SMS .
14.It is economic, user-friendly and easy maintenance.
Conventional fire alarm system accessories:
You can choose you wanted accessories or we will provide professional advise according your project
1.Conventional photoelectric smoke detector
2.Conventional heat detector
3.Conventional heat and smoke combind detector
4.Manual call point
5.Fire alarm bell
6.Conventional strobe horn/hooter
7.Flash light
8.Conventional gas detector
9.Beam smoke detector
10.Fire detector

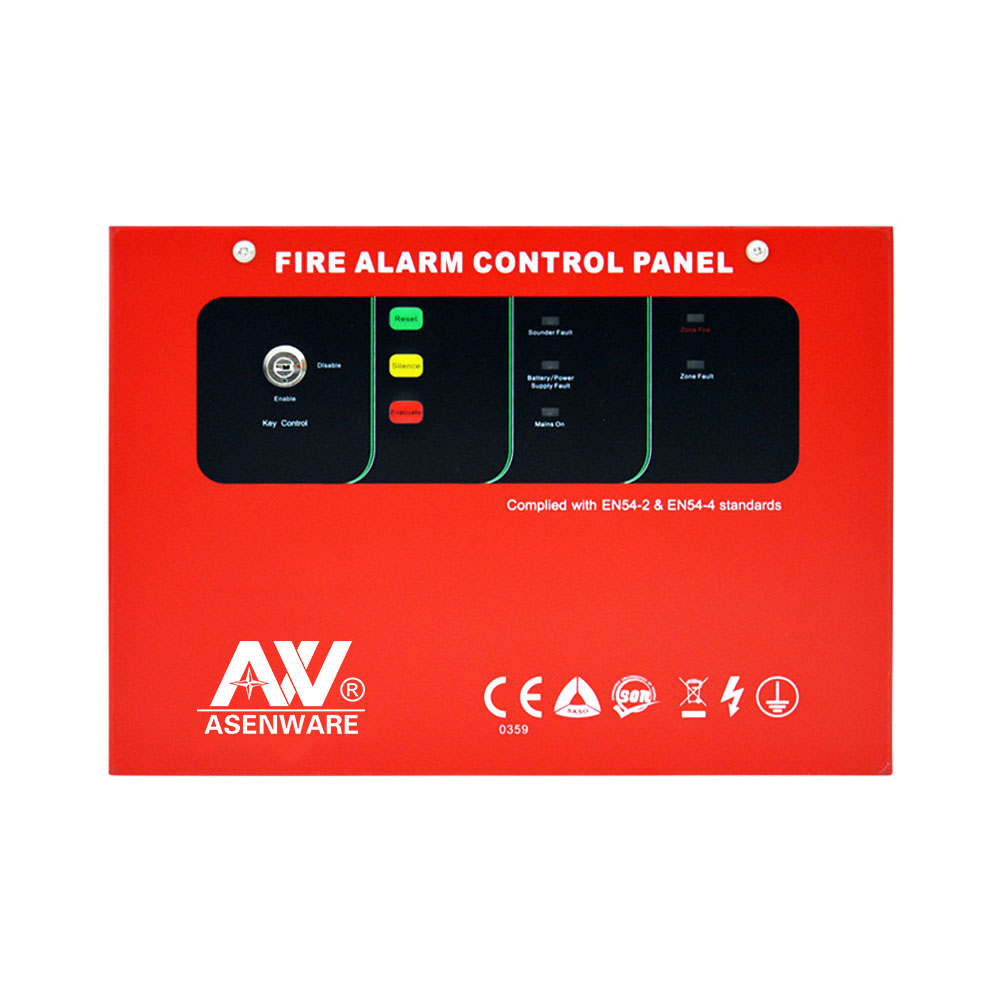

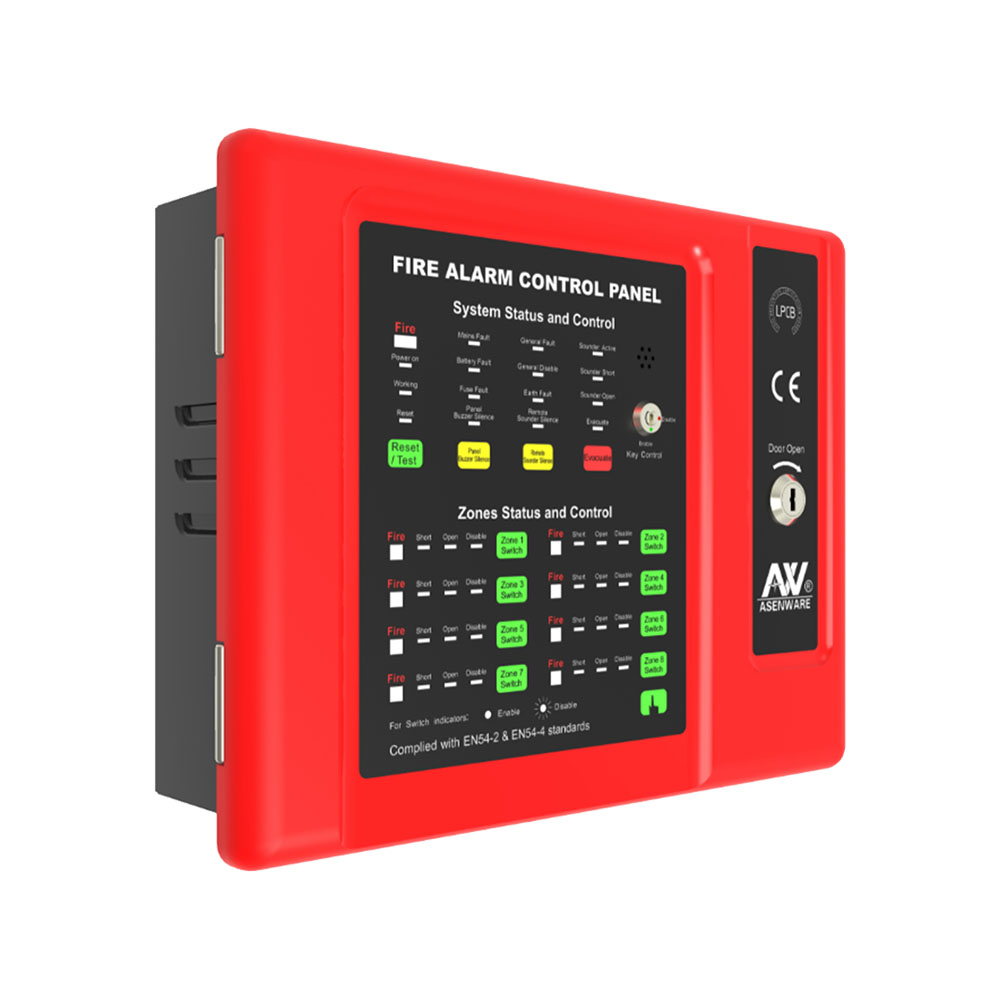

Conventional fire alarm panel picture
1.Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
2.Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service.
3.In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Company
Certificate
Exhibition room
Factory
one Conventional Fire Alarm System Control Pane
Packing
| 1) PP Bag |
| 2) Cartons |
| 3) Pallets or plywood case for sea shipping |
Shipping
ional fire alarm panel, alarm system c
Our service
FAQ
| 1.MOQ: 1 pcs |
| 2.Delievry time :generally 2 to 7 days .Mass product will be more. |
| 3.Payment terms :T/T L/C or Western union. |
4.Payment: T/T or Western Union |
| 5.Contain Battery: No. If you need battery,pls tell me. |
