Home > Products > 12 Zone the newest Conventional fire alarm system,control panel,fire alarm panel battery

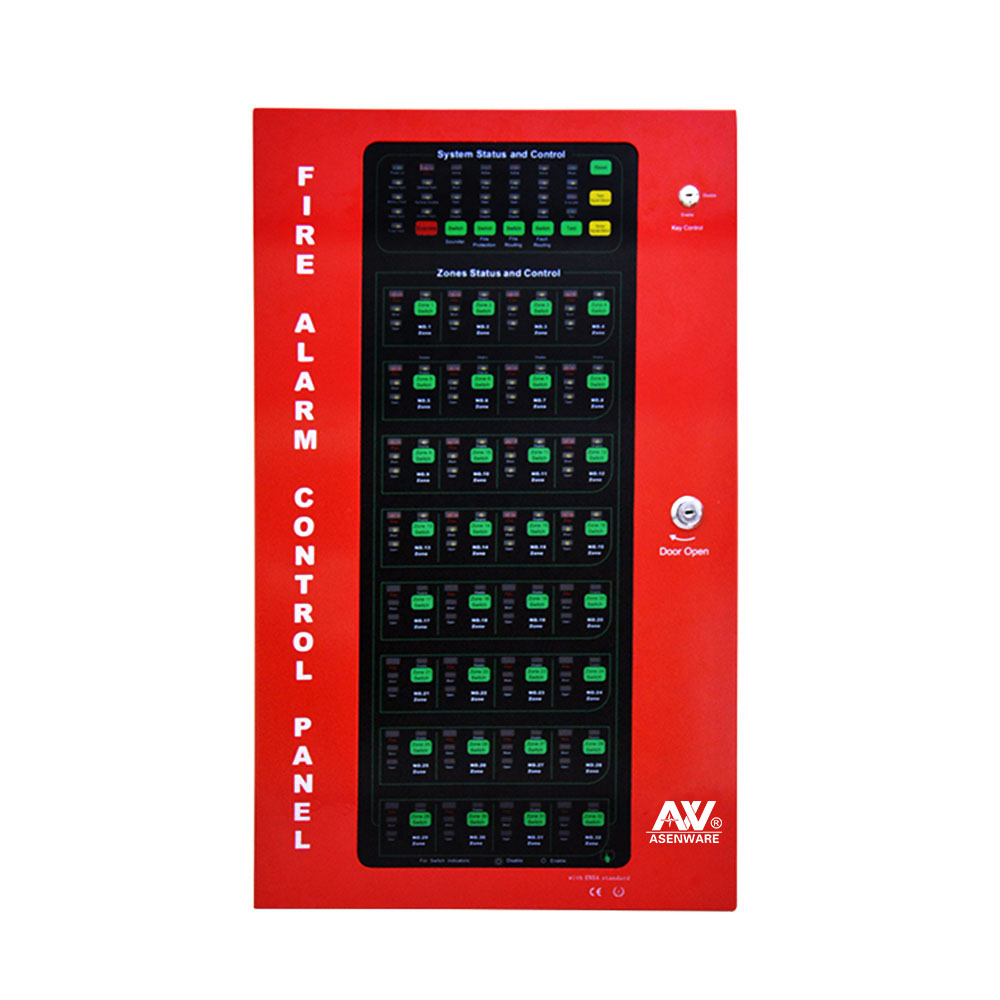

12 Zone the newest Conventional fire alarm system,control panel,fire alarm panel battery
Click on the image to view the original image
Product： views：1112 Zone the newest Conventional fire alarm system,control panel,fire alarm panel battery
Branch： ASENWARE
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 03:21
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ASENWARE
Model Number:
AW-CFP2166-12
Mains supply voltage:
110VAC or 240VAC
Internal power supply:
27.2VDC
Total output current limited:
3A @ 240VAC
Main supply monitor for fault:
yes
Battery protection for low voltage:
yes
Batteries (default configuration):
12V2AH*2
Number of circuit:
12
Line fault monitor for open circuit:
yes
Line fault monitor for short circuit:
yes
Number of general circuits:
2

12  Zone Conventional Fire Alarm System Conventional Fire Alarm Panel   AW-AFP2166-12





Introduction:

  1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
  2. It is modularized design, the panel can extend from 1 zone to 32 zones easily.
  3. It has 2 level control mode by a lock
  4. It has 24VDC and 5VDC power supply output.
  5. It has FIRE and FAULT signal output.
  6. It has 2 general sounders output.
  7. Each zone has 1 circuit detectors input .
  8. Each zone can be disable by a button.
  9. It has RESET button to reset the panel.
  10. It has SILENCE button to stop BUZZER and SOUNDERS.
  11. It has EVACUATE button to start a manual fire alarm immediately.
  12. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
  13. It has an optional GSM module for fire alarm by SMS .
  14. It is economic, user-friendly and easy maintenance.

Parameters:
