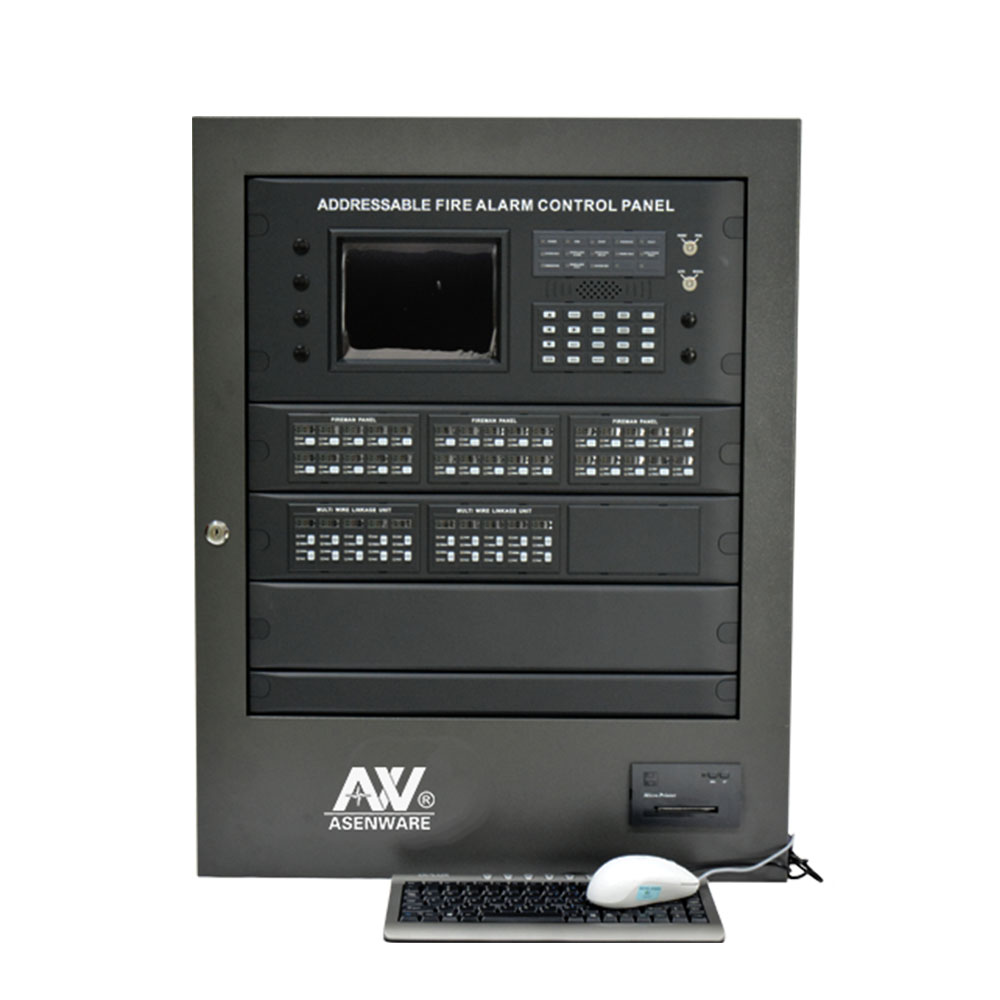

Addressable analog fire protection panel for applications in large fire alarm control systems
Description of Addressable Fire Alarm Control Panel System
- 32-bit MCU
- Non-polarity analog 2 –wire addressable bus
- Each detector sensitivity adjustable
- Field-programmable with PS/2 standard PC keypad and mouse
- 7.4’ LCD back-light display
- Windows menu and interface
- English interface and panel display
- CF card duplicate or reset system setup fire and history fire to facilitate maintenance
- Single point start/stop of module(menu operation)
- Single point test of detector/ module
- Zone, building or floor integration and display
- Graphic monitor system visually display the location of fire and trouble
- Eleven user each with a password and selectable access level
- Field software upgrade
- AW-AFP2100 peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module
- Flexible collocation by modularized combination
Technical Parameters of Addressable Fire Alarm Control Panel
Addresss: 648, 648*2, 648*3, 648*n
Each loop card has 2 loops, with 324addresses as alarm /control points of each loop, the capacity of each loop card is 324*2=648(addresses)
Each wall mounted AW-AFP2100 panel can be installed maximum 3 loop card, the maximum capacity is 648*3=1,994 (addresses). Over 1994 addresses, use the cabinet panel. The cabinet panel can be installed maximum 40 loop cards, the maxim capacity is 648*40=25,920(addresses)
Peer-to peer with max. 20 AW-AFP2100 panels, the maximum system capacity:25,920*20=518,400 (addresses)
Operating environment:
Temperature: -10~+55
Relative humidity:95%(40, non-condensing)
AC power:220VAC,50Hz, 3A
DC power: 24 VDC,7.0Ah
addressable fire alarm control panel"s picture display
Addressable Fire Alarm System Optional Accessories:
Related products:
There are 3 addressable fire alarm control panels:
1. AW-AFP2188-100: 100 addresses
2. AW-AFP2188-200: 200 addresses
3. AW-AFP2188-324: 324 addresses
The 2188 series have the below detectors and accessories:
1. AW-ASD2188: addressable photoelectric smoke detector
2. AW-ATD2188: addressable fixed temperature heat detector
3. AW-ASH2188: addressable smoke and heat combined detector
4. AW-AMC2188: addressable manual call point
5. AW-ASS2188: addressable hooter/horn
6. AW-AIO2188-IN: addressable input module
7. AW-AIO2188-OUT: addressable out module
8. AW-CODERF900E: coder for setting address
9. AW-RP2188: repeater
analog fire alarm control panel "s picture display
Asenware Test and Control Technology Co., Ltd, founded in 2005, is distinguished by the experience and expertise of more than 11 years as one of the largest manufacturers and suppliers of China’s fire and security alarm products. Asenware is also a trusted brand of fire system solutions for all customers from all over the world.
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
Certificates of intelligent addressable fire alarm control panel
Exhibition hallof addressable fire detection panel
industrial addressable fire alarm control panel show room:
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Packaging Details: Plastic, Cartons, plywood case
Shipping:deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: one week.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
Please contact me freely to get more information about addressable fire alarm control panel.
