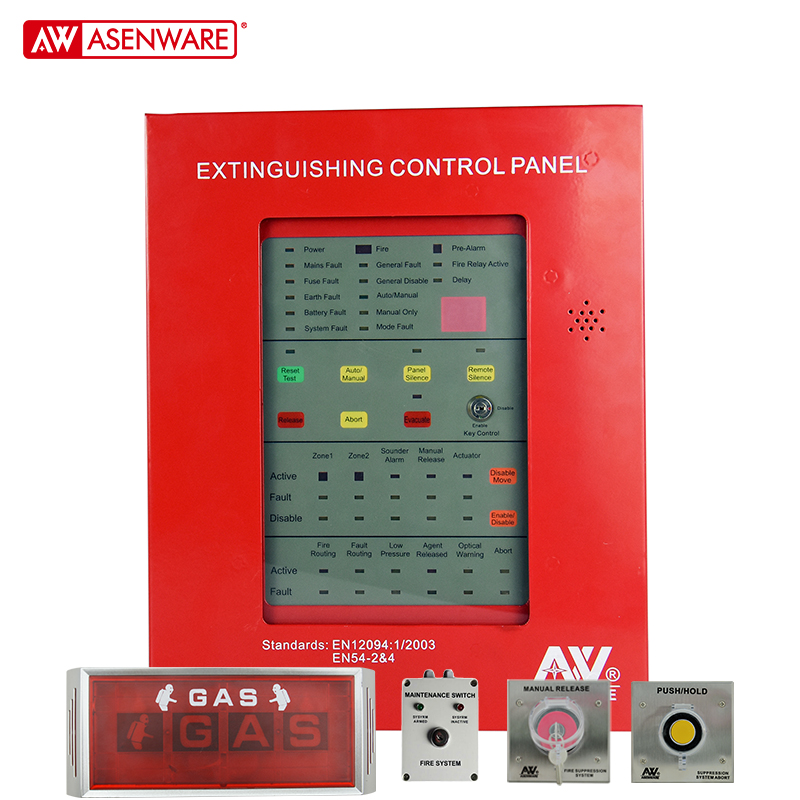

Fire Suppression System Intelligent 2 Zone Fire Alarm Control Panel
Technical specification
AC INPUT | 220VAC 50HZ | +10% |
|
| -15% |
DC OUTPUT at Power Board | 24VDC (19V-28V) and 5VDC (4.9V-5.1V) | |
Voltage for MCU | 5V for power board MCU, 3.3V for other MCU | |
Current at 24VDC from PSE | <450mA standby current | |
Maximum current from PSE | 1.4A except batteries charge | |
Batteries current | 1.85A maximum, current limited | |
Auxiliary output | 24VDC, 200 mA max, current limited | |
Extinguishant release delay time | Adjustable 0 to 60seconds(5 second steps) | |
Imin, Imax.a and Imax.b according to EN54-4 | Imin=340mA, Imax.a=424mA, Imax.b=1.4A | |
Batteries | 2*12V/ 2.3Ah sealed lead acid gel, self-regulated | |
Battery replace Resistance | 1.6Ω±10% if needed | |
Battery low-voltage protection | 21V | |
The maximum and minimum electrical ratings for each input and output | Detectots / zone lines: 15.2V-28V Sounder lines:19-28V Fire protection/Fire routing lines:19-28V Fault routing lines:18-28V | |
Detectors wiring allowed each zone | 16 points | |
Max points (detector and MCP) per CIE | 32 points | |
Zone alarm current | 6mA minimum/ 27mA maximum | |
Sounder output | 200mA maximum | |
Fire routing/ Fault routing | 200mA maximum each terminal | |
Communication protocol | 2 wires RS485 bus system | |
EOL resistor for zone, inputs(Except for main power) and outputs | 6.8KΩ/1W | |
* The automatic extinguisher control panel AW-GEC2169 is designed execute European standards of EN54-2 and EN54-4 Fire Detection and Fire Alarm systems clause,and Control and Indicating Equipment EN12094-1 firefighting system standards
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range
1. Addressable fire alarm system(FP300 series,FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
1. OEM/ODM services.
2. Quality assurance and reliabilty.
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: Sample needs 1-3 days,mass product according to your quantity.
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
Packaging details:
1)PEE bag per unit
2)Outside Cartons
3)Strict&Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff,Asenware fire pump control equipment
