1. General description

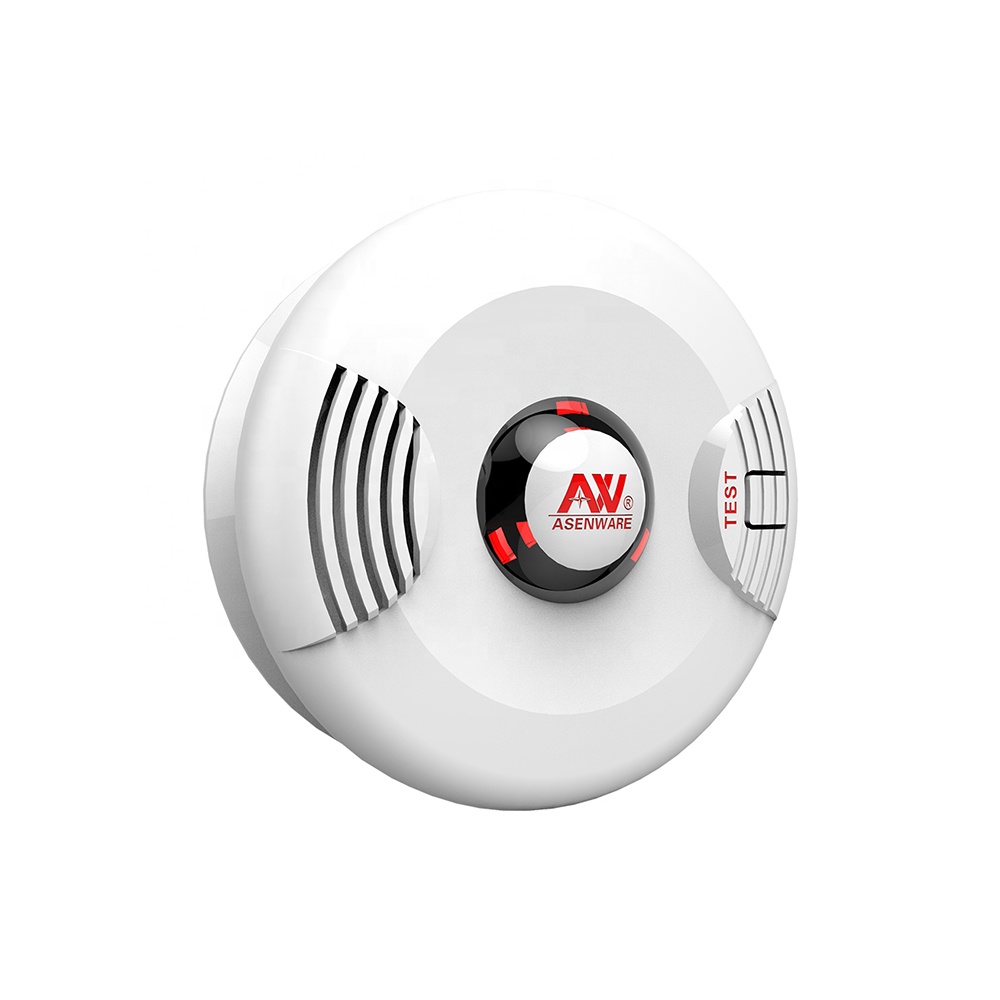

The detector is a photodetector that uses the most advanced optical sensing chamber. The detector is designed to provide open area protection without wiring, and is easy to install and construct;
The red LED on each detector provides a local 360° visible alarm indication. They flash once every minute, indicating that the power is on and the detector is working. When an alarm occurs, the red LED is on; When a fault condition indicates that the detector sensitivity exceeds the listed limit, a beep will occur in the middle of the two flashing times; when the battery is low, the red LED will flash and will beep.
The red LED will be on when the fire alarm is activated, until the smoke concentration is lower than the alarm threshold.
The test button is used to test whether the detector works normally; each time the buzzer is pressed, the buzzer emits a beep, the red LED flashes, and simulates a fire alarm; this button can be used for local mute during a fire;
2. Feature:
1.faster to test smoke
2.High DB can better inform people
3.High alarm sensitivity: test smoke within 10s
4.Design based on EN54 standards
5.Have test button: test and mute
6.Automatic reset
7.Protection without wiring, easy to install
8.maintenance once a year
9.optional :battery wireless 220VAC
3. Specification:
| Working power | 2* AA alkaline battery |
| Current | ≤10μA@3VDC |
| Maximum Alarm Current (LED on) | ≤20mA@3VDC |
| Operating Humidity Range | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Smoke Alarm Sensitivity | 0.18-0.26dBM |
| Alarm level | ≥85db /3m |
| Height | 54.5mm installed in Base |
| Diameter | 126.7 mm |
