- Place of Origin:
- Guangdong, China
- Brand Name:
- Asenware
- Model Number:
- AW-SSD606
- Battery life:
- 1~3 /5/10years
- Type:
- Stand-alone
- Item:
- Smoke Usage Fire Alarm Systems
- Product name:
- Heat Detector
- Color:
- White
- Sensor:
- Original Photoelectric Sensor
- Keyword:
- Smart Heat Sensor
- Feature:
- Individual
- Sound level:
- 85db
- Warranty:
- 1 Year
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- Carton box
- Port
- ZHONGSHAN
- Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 3 7 14 To be negotiated

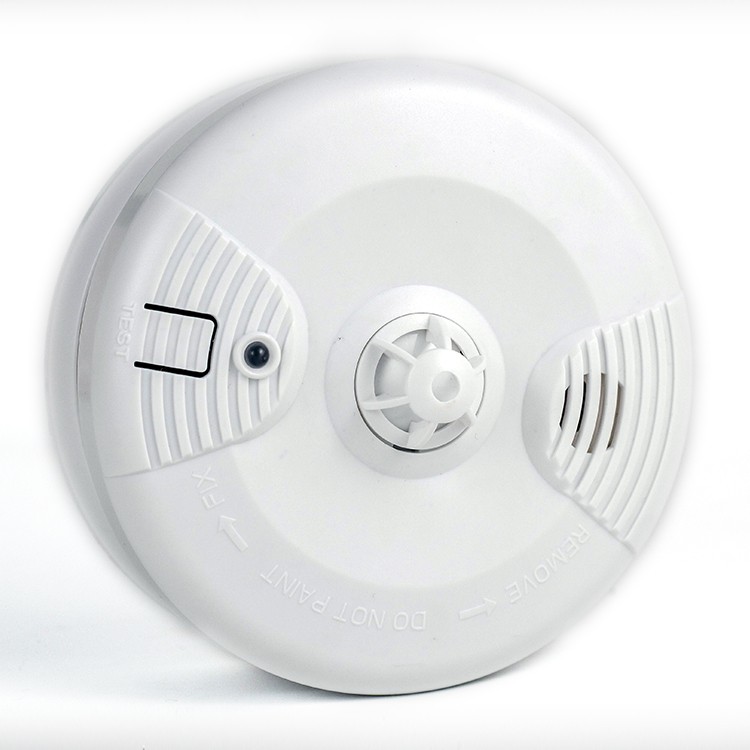

A bi-color LED on each detector provides a local 360° visible alarm indication. They flash once every minute to indicate that power is on and the detector is working properly. The red LED flashes when the alarm occurs. When there is a fault condition indicating that the detector sensitivity is outside the listed limits or the battery is low, the yellow LED will flash. The alarm can be reset by pressing the button or when the fire alarm is not collected for a long time.
The test button is used to test whether the detector works normally; each time the buzzer is pressed, the buzzer will respond with a drop, while the yellow LED flashes; This button can be used for local silence during fire alarms.
-High adaptability to the ambient,with dustproof,mothproof,moisture proof and anti-white light function
-Sound & Flash Alarm,low voltage indication,self-test Function
-Manual test,Auto reset Function.
Working power: | A CR17335/17450 lithium manganese batteryB 2* AA alkaline battery |
Current: | ≤8µA@3VDC |
Maximum Alarm Current (LED on): | ≤100mA@3VDC |
Operating Humidity Range: | ≤95%RH(40°C±2°C) |
Operating Temperature Range: | -10°C to 50°C (14°F to 122°F) |
Alarm level: | ≥85db /3m |
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: one week working day
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
1.Professional and experienced R&D team can offer free technical support and project support.
2.Prompt reply all-around and all-weather.
3.OEM/ODM services
4.One year warranty and technical maintenance.
