Home > Products > Ceiling Type Standalone Heat Temperature Detector

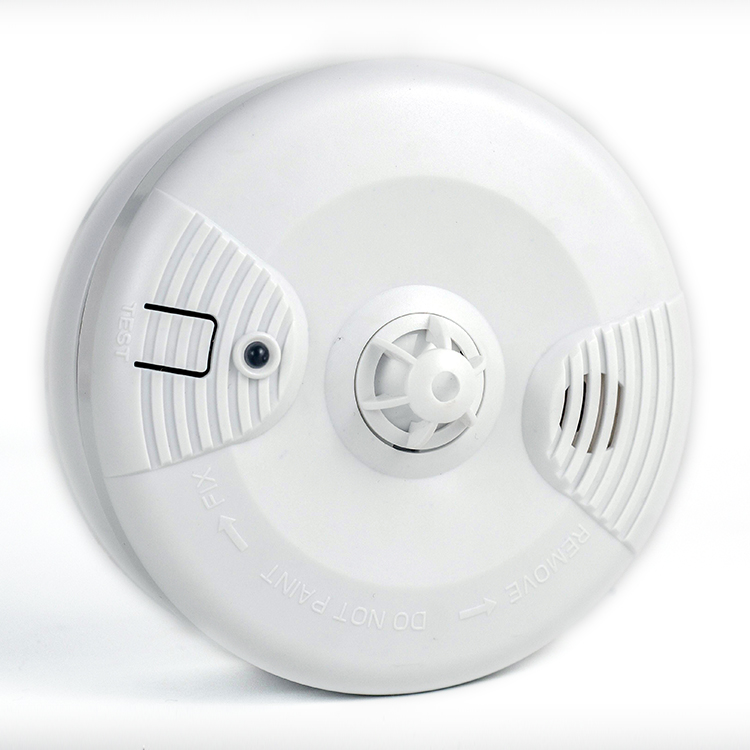

Ceiling Type Standalone Heat Temperature Detector
Click on the image to view the original image
Product： views：4Ceiling Type Standalone Heat Temperature Detector
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
China
Brand Name:
Asenware
Model Number:
AW-STD606D
Product name:
Standalone Heat Detector
Usage:
Fire Alarm System
Working Voltage:
3V Alkaline Battery
Standby Current:
≤10 uA@3VDC
Maximum Alarm Current (LED on):
≤20 mA@3VDC
Operating Humidity Range:
≤95%RH(40°C±2°C) Relative Humidity, Non-condensing
Operating Temperature Range:
-10°C to 50°C
Battery life:
1~3 /5/10years
Alarm level:
≥85db /3 m
Diameter:
126.7 mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton box
Port
Zhongshan Port
Product Description

85 db High Sounder Standalone Heat Sensor with Battery Powered

The detector is a Rate of Rise Temp that uses the most advanced optical sensing chamber. The detector is designed to provide open area protection without wiring, and is easy to install and construct;
Parameter detail:
Working power
2* AA alkaline battery
Current
≤10µA@3VDC
Maximum Alarm Current
≤20mA@3VDC
Operating Humidity Range
≤95%RH(40°C±2°C) Relative
Humidity, Non-condensing
Operating Temperature Range
-10°C to 50°C
Fix temperature Alarm
57°C (135°F) A1R
Rate of rise Alarm
7.1°C/5S A1R
Alarm level
≥85db /3  m
Height
54.5mm installed in Base
Diameter
126.7 mm

Product Feature
Company information


Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.

Product range:

1. Addressable fire alarm system(FP300 series,FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire telephone system

Packing & Delivery
Packaging Details:

1) PEE bag per unit

2) Outside Cartons

3)Strict & Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff, Asenware fire pump control equipment.
Our Service
1. OEM/ODM services.

2. Quality assurance and reliabilty.

3. Professional and experienced R&D center can offer free technical support.

4. One year warranty and technical maintenance.
FAQ

Q1:Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.

Q2:What is the lead time?
A:Sample needs 3-5 days, mass product according to your quantity.

Q3:How do you ship the goods and how long does it take arrive?
A:We usually ship by DHL,UPS,FedEX or by Air. 3-5 days after payment received.


Q4:Do you guarantee for the products?
A:Yes,we offer one year guarantee for the products.

Q5:Do you offer OEM service?
A:Yes,we can design the products according to your request.
