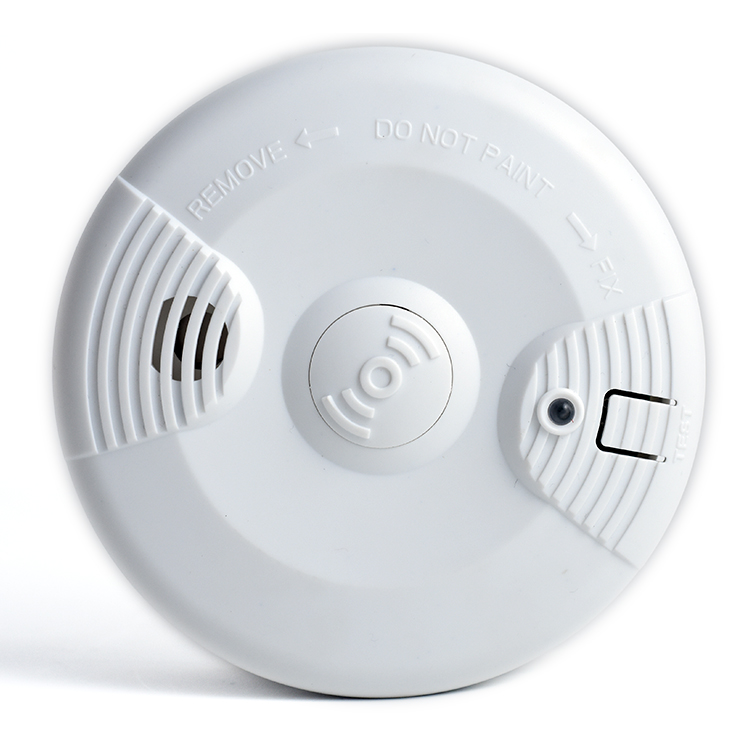

The detector is a photodetector that uses the most advanced optical sensing chamber.
The detector is designed to provide open area protection without wiring, and is easy to install and construct
How to install the standalone smoke detector
NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.

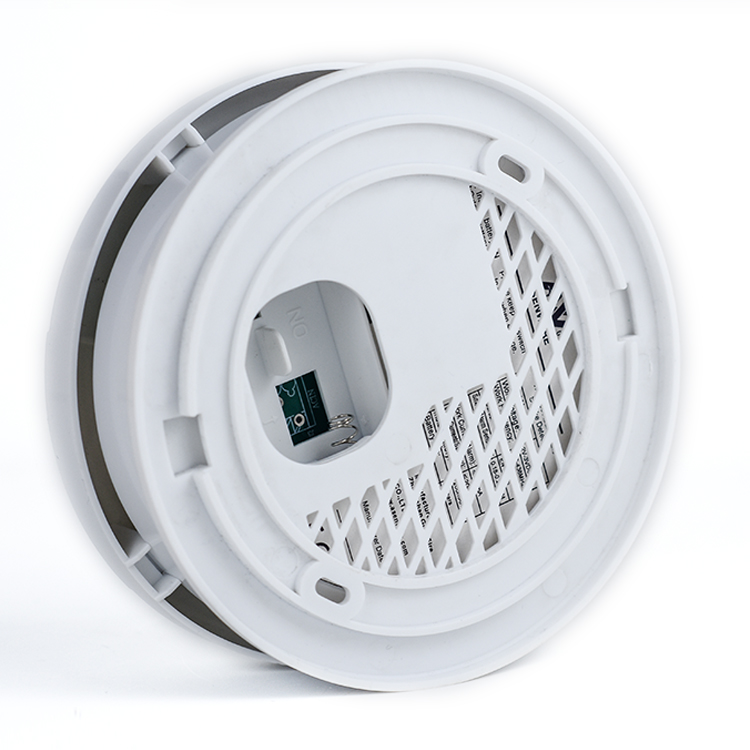

INSTALL THE DETECTOR BASE
A. Open area smoke or heat detectors are intended for mounting on a ceiling or a wall in accordance
C. Attach mounting base to ceiling or wall.
INSTALL THE DETECTOR HEAD
A. Align detector head alignment mark line with the base"s start alignment mark line as shown in Figure 2
B. Push the detector head into the base while turning it clockwise to secure it in place.
C. Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts,etc.
D. Test the detector(s) as described in the TESTING section of this manual.
