Home > Products > Asenware Standalone Smoke Detector with Battery AW-SSD606D

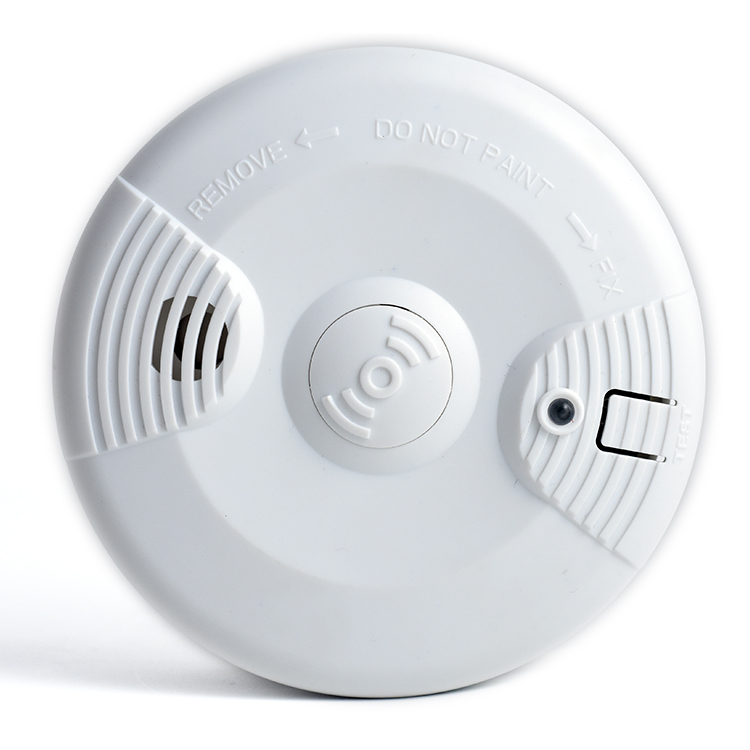

Asenware Standalone Smoke Detector with Battery AW-SSD606D
Click on the image to view the original image
Product: views:4Asenware Standalone Smoke Detector with Battery AW-SSD606D
Branch: Asenware
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
China
Brand Name:
Asenware
Model Number:
AW-SSD606D
Product name:
Standalone Smoke Detector
Working Voltage:
3V Alkaline Battery
Usage:
Fire Alarm System
Maximum Alarm Current (LED on):
≤20 mA@3VDC
Standby Current:
≤10 uA@3VDC
Operating Humidity Range:
≤95%RH(40°C±2°C) Relative Humidity, Non-condensing
Operating Temperature Range:
-10°C to 50°C
Smoke Alarm Sensitivity:
0.18-0.26dBM
Alarm level:
≥85db /3 m
Diameter:
126.7 mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton box
Port
Zhongshan Port
Product Description

Standalone Photoelectric 10 Years Fire Alarm Smoke Detector with battery

Product Parameter:

Working power:A CR17335/17450 lithium manganese battery  B 2* AA alkaline battery
Current:    ≤8µA@3VDC
Maximum Alarm Current (LED on): ≤100mA@3VDC
Operating Humidity Range:≤95%RH(40°C±2°C)
Operating Temperature Range:-10°C to 50°C (14°F to 122°F)
Smoke Alarm Sensitivity:    0.18-0.26dBM
Alarm level:     ≥85db /3 m


















The detector is a photodetector that uses the most advanced optical sensing chamber.
The detector is designed to provide open area protection without wiring, and is easy to install and construct;

How to install the standalone smoke detector
NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.
INSTALL THE DETECTOR BASE
A. Open area smoke or heat detectors are intended for mounting on a ceiling or a wall in accordance
C. Attach mounting base to ceiling or wall.
INSTALL THE DETECTOR HEAD
A. Align detector head alignment mark line with the base’s start alignment mark line as shown in Figure 2
B. Push the detector head into the base while turning it clockwise to secure it in place.
C. Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts,etc.
D. Test the detector(s) as described in the TESTING section of this manual.

Company Information

Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.

Product range
1. Addressable fire alarm system(FP300 series,FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet



Packaging & Shipping

Packaging details:

1)PEE bag per unit

2)Outside Cartons

3)Strict&Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff,Asenware fire pump control equipment



Certifications



Our Services

1. OEM/ODM services.

2. Quality assurance and reliabilty.

3. Professional and experienced R&D center can offer free technical support.

4. One year warranty and technical maintenance.



FAQ



Q1: Are you manufacturer?

A: (yes)
Q2: What is the lead time?
A: Sample needs 1-3 days,mass product according to your quantity.
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A:Yes,we can design the things according to your request
Contact us

If you have any questions,please do not hesitate to contact with us !



Asenware Ltd

Contact name: Sandy Huang

Email: sales05 at asenware.com

Mobile: +86 18938708030(whatsapp/wechat)

Factory AddR: 4F,10#,Xingye Rd.,Huoju District, Zhongshan City, Guangdong

Marketing Center AddR: 26H, Building D, Shihong Garden, Fanshen Rd,   Baoan,Shenzhen

Skype:asenware.sales.5

Company website:http://www.asenware.com
