Home > Products > Hot Sell High Sensitive 3V Battery Cigarette Smoke Alarm

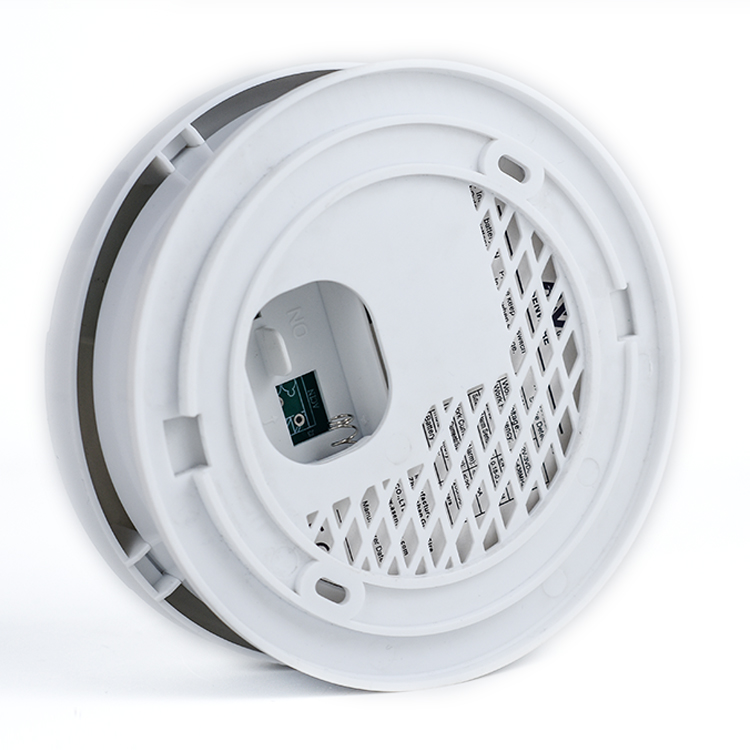

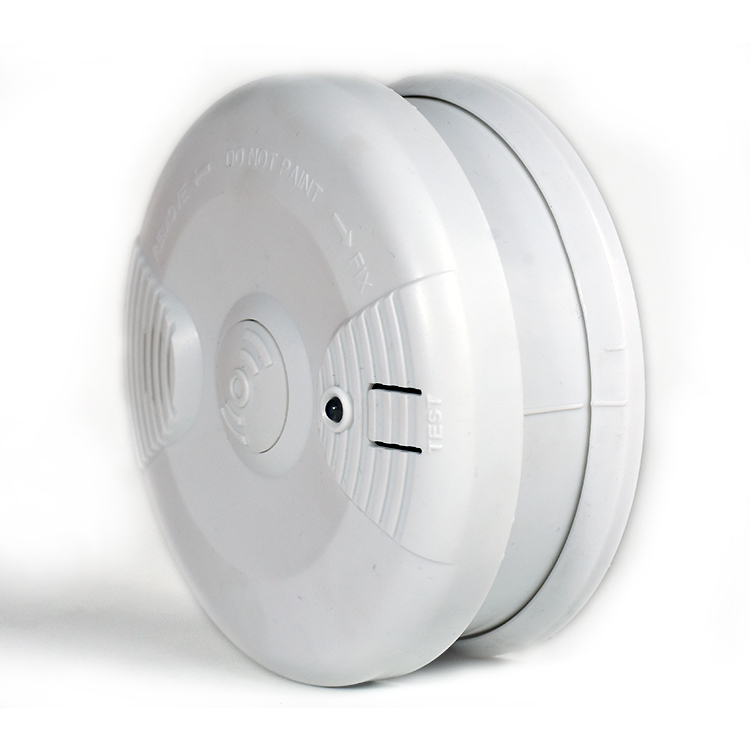

Hot Sell High Sensitive 3V Battery Cigarette Smoke Alarm
Click on the image to view the original image
Product： views：3Hot Sell High Sensitive 3V Battery Cigarette Smoke Alarm
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
China
Brand Name:
Asenware
Model Number:
AW-SSD606D
Product name:
Standalone Smoke Detector
Usage:
Fire Alarm System
Working Voltage:
3V Alkaline Battery
Standby Current:
≤10 uA@3VDC
Maximum Alarm Current (LED on):
≤20 mA@3VDC
Operating Humidity Range:
≤95%RH(40°C±2°C) Relative Humidity, Non-condensing
Operating Temperature Range:
-10°C to 50°C
Smoke Alarm Sensitivity:
0.18-0.26dBM
Alarm level:
≥85db /3 m
Diameter:
126.7 mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Carton box
Port
Zhongshan Port
Product Description

Standalone Photoelectric 10 Years Fire Alarm Smoke Detector with battery

Product Parameter:

Working power:A CR17335/17450 lithium manganese battery  B 2* AA alkaline battery
Current:    ≤8µA@3VDC
Maximum Alarm Current (LED on): ≤100mA@3VDC
Operating Humidity Range:≤95%RH(40°C±2°C)
Operating Temperature Range:-10°C to 50°C (14°F to 122°F)
Smoke Alarm Sensitivity:    0.18-0.26dBM
Alarm level:     ≥85db /3m


















The detector is a photodetector that uses the most advanced optical sensing chamber.
The detector is designed to provide open area protection without wiring, and is easy to install and construct;

How to install the standalone smoke detector
NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.
INSTALL THE DETECTOR BASE
A. Open area smoke or heat detectors are intended for mounting on a ceiling or a wall in accordance
C. Attach mounting base to ceiling or wall.
INSTALL THE DETECTOR HEAD
A. Align detector head alignment mark line with the base’s start alignment mark line as shown in Figure 2
B. Push the detector head into the base while turning it clockwise to secure it in place.
C. Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts,etc.
D. Test the detector(s) as described in the TESTING section of this manual.
