Home > Products > Asenware Fire Extinguisher Control Panel for fm200 Gas Alarm
Asenware Fire Extinguisher Control Panel for fm200 Gas Alarm
Click on the image to view the original image
Product： views：4Asenware Fire Extinguisher Control Panel for fm200 Gas Alarm
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-GEC2169
Product name:
Automatic Gas Extinguisher Control Panel
Model No:
AW-GEC2169
Batteries:
2*12V/ 2.3Ah sealed lead acid gel
Mains Supply:
90 to 270VAC. 50Hz/60Hz
Detection Circuit:
2 zones
Capacity each zone:
16 points
Extinguishant release delay time:
Adjustable 0 to 60seconds(5 second steps)
Sounder output:
200mA maximum
Size:
280mm *112.5mm *350mm
Weight:
5kg
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PP Bag per unit to protect/Carton Box outside
Port
Zhongshan
Product Description

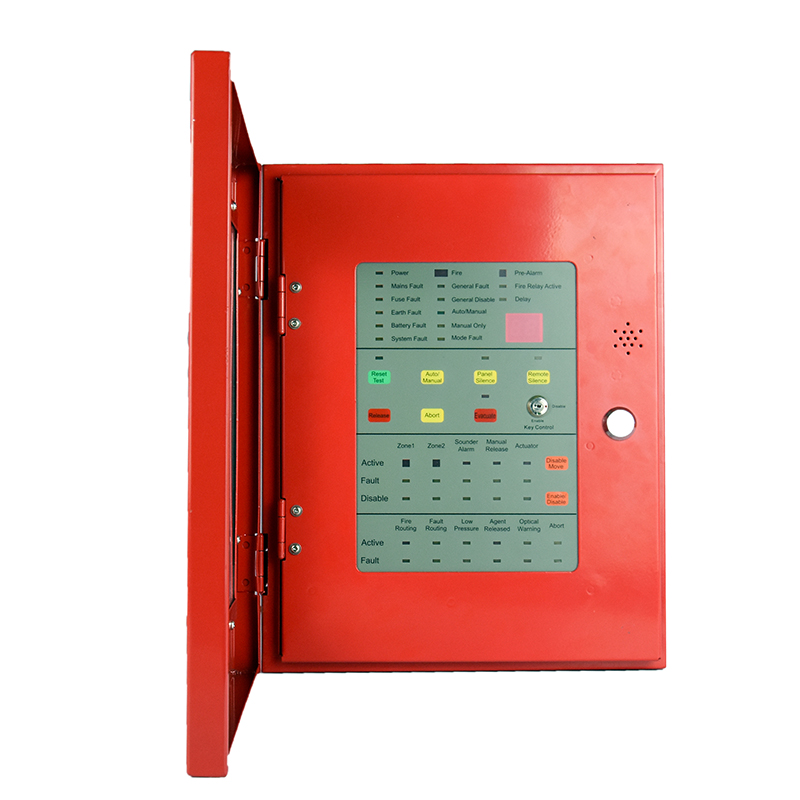

Automatic Gas Extinguisher Control Panel AW-GEC2169

The automatic extinguisher control panel AW-GEC2169 is designed execute European standards of EN54-2 and EN54-4 Fire Detection and Fire Alarm systems clause,and Control and Indicating Equipment EN12094-1 firefighting system standards.

AW-GEC2169 with a new design, easy to operate, metal box opening and closing door with visible glass window, make the Panel running more safe.

AC INPUT
220VAC 50HZ+10%-15%
DC OUTPUT at Power Board
24VDC (19V-28V) and 5VDC (4.9V-5.1V)
Current at 24VDC from PSE
450mA standby current
Maximum current from PSE
1.4A except batteries charge
Batteries
2*12V/ 2.3Ah sealed lead acid gel, self-regulated
Fire protection/Fire routing lines
19-28V
Detectors wiring allowed each zone
16 points
Max points (detector and MCP) per CIE
32 points
Sounder output
200mA maximum
EOL resistor for zone, inputs(Except for main power) and outputs
 6.8KΩ/1W
Detailed Images
Packing & Delivery

Packaging Details:

1) PEE bag per unit

2) Outside Cartons

3)Strict & Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff, Asenware fire pump control equipment.

Our Company

Company Information
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.

Product range:
1. Addressable fire alarm system(FP300 series,FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire telephone system
