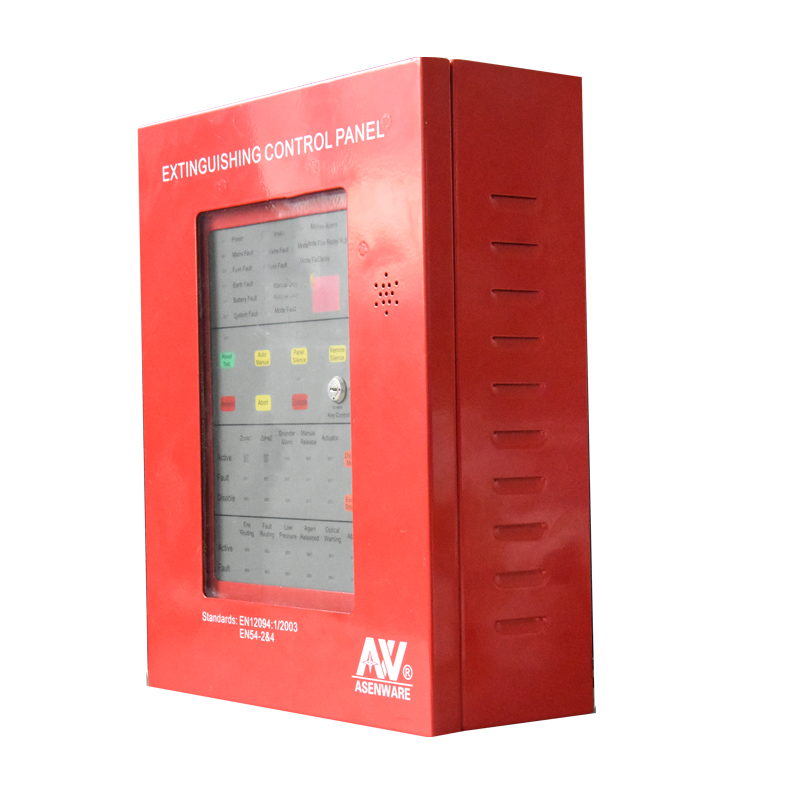

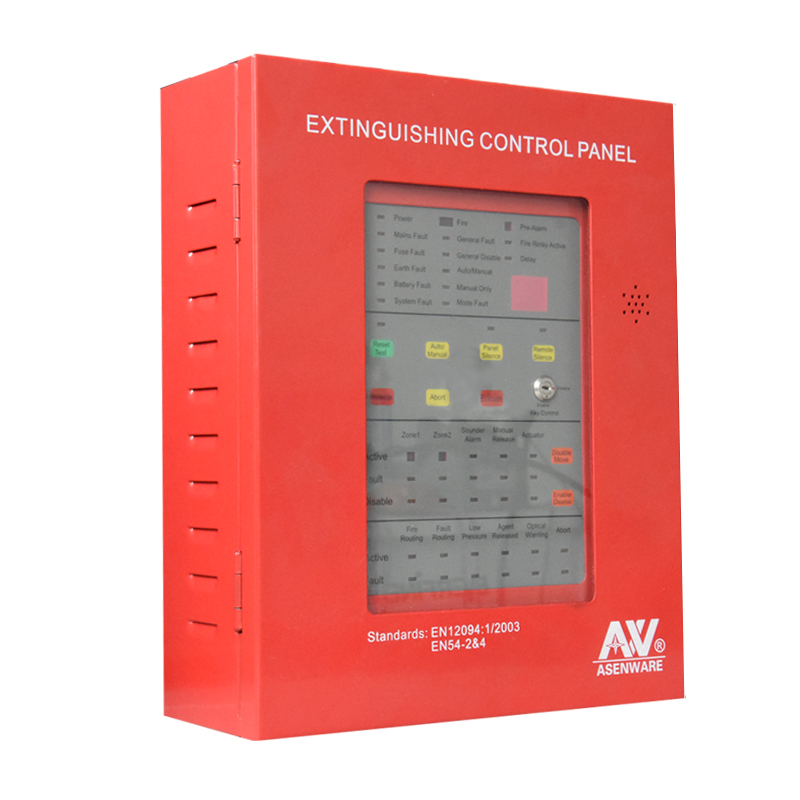

2 Zone Gas Release Control Panel AW-GEC2169 for Fire Fighting Equipment
Click on the image to view the original image
Product: views:1152 Zone Gas Release Control Panel AW-GEC2169 for Fire Fighting Equipment
Branch: Asenware
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-GEC2169
Name:
Fire Fighting System 2 Zone Conventional Fire Alarm Control Panel
Mains supply:
90 to 270VAC, 50Hz/60Hz
Mains supply fuse:
3 Amp ( F3A L250V)
Power supply rating:
3 Amps total including battery charge 28V
Maximum ripple voltage:
≤200 millivolts
Battery type:
Two 12 Volt sealed lead acid in series
Battery charge voltage:
27.6VDC nominal
Warranty:
2 Years
Weight:
5kg
Size:
280*112.5*350mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Carton Box
Port
Zhongshan

 2 Zone Gas Release Control Panel AW-GEC2169 for Fire Fighting Equipment



Product Description

The AW-GEC2169 automatic gas fire extinguisher panel has the following features:

Alarm input : two alarming zone signal input , 16 detectors could be connected to each zone
EM valve output : control the output of EM valve.
Panel output: line fault output / alarm output / fire extinguishing signal output/24VDC output
Power output: resettable 24VDC output, 200mA current limit protection
Automatic power switching: 220V AC power and standby battery power can be switched automatically.
Three levels of access control (view, operation, settings)
Fault detection with display: Real-time detect working condition of input, output, system, power, ground, fuse,and so on.
Manually disable function: Manually disable the Panel functions and zones devices.
Evacuation: Manually activate the fire alarm devices.
Silence operation: Manual silence the horns alarm and panel buzzer .
Delay time setting: You can manual set the Panel reseting time and Release delay time.
Panel Security Protection : outside cabinet with Visible glass window of opening and closing door .
Tability: long-term rigorous testing before leaving the factory, the Panel is stable, safe and reliable;







Technical specification

AC INPUT

220VAC 50HZ

+10%





-15%

DC OUTPUT at Power Board

24VDC (19V-28V) and 5VDC (4.9V-5.1V)

Voltage for MCU

5V for power board MCU, 3.3V for other MCU

Current at 24VDC from PSE

<450mA standby current

Maximum current from PSE

1.4A except batteries charge

Batteries current

1.85A maximum, current limited

Auxiliary output

24VDC, 200 mA max, current limited

Extinguishant release delay time

Adjustable 0 to 60seconds(5 second steps)

Imin, Imax.a and Imax.b according to EN54-4

Imin=340mA, Imax.a=424mA, Imax.b=1.4A

Batteries

2*12V/ 2.3Ah sealed lead acid gel, self-regulated

Battery replace Resistance

1.6Ω±10% if needed

Battery low-voltage protection

21V

The maximum and minimum electrical ratings for each input and output

Detectots / zone lines: 15.2V-28V     Sounder lines:19-28V

Fire protection/Fire routing lines:19-28V

Fault routing lines:18-28V

Detectors wiring allowed each zone

16 points

Max points (detector and MCP) per CIE

32 points

Zone alarm current

6mA minimum/ 27mA maximum

Sounder output

200mA maximum

Fire routing/ Fault routing

200mA maximum each terminal

Communication protocol

2 wires RS485 bus system

EOL resistor for zone, inputs(Except for main power) and outputs

6.8KΩ/1W



The automatic extinguisher control panel AW-GEC2169 is designed execute European standards of EN54-2 and EN54-4 Fire Detection and Fire Alarm systems clause,and Control and Indicating Equipment EN12094-1 firefighting system standards.
