LPCB Approval Fire Alarm Resettable Manual Call Point addressable pull station

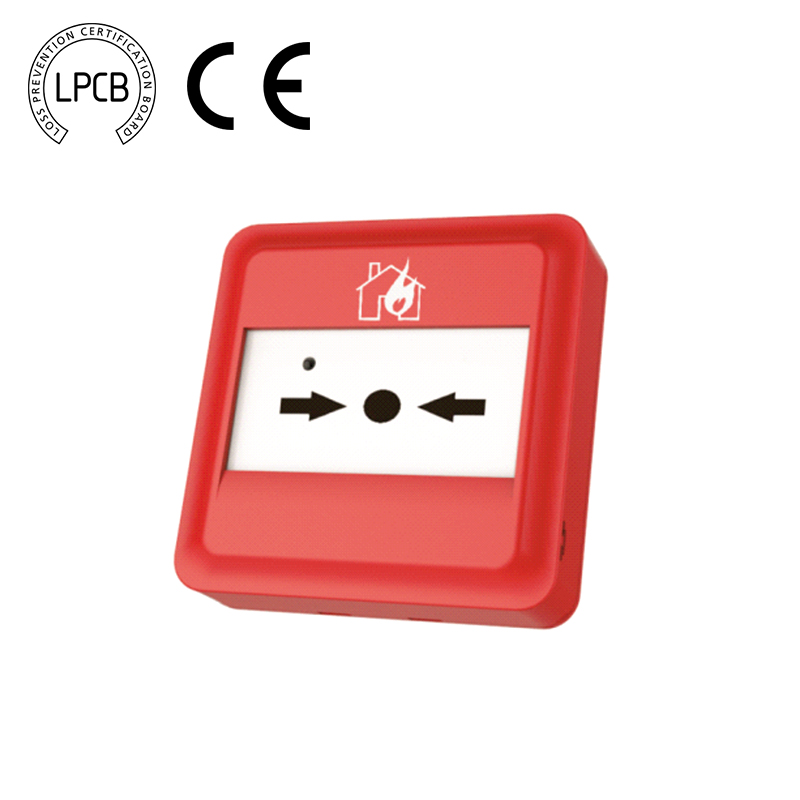

AW-D305 LPCB Addressable Manual Call Point Alarm System
The AW-D305 Addressable manual call point ( hereinafter referred to AW-D305 Addressable) is mainly designed to be used with an intelligent two-bus control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual fire call points.
When the manual fire call points is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit. The AW-D305 Addressable supports electronic coding, more suitable for engineering application convenient.
Product Feature:
| Operating Voltage | Signal Loop 24V(18V~28V) Power 24VDC(20V DC~28VDC) |
| Standby Current | Loop<0.8mA ; Power< 2mA |
| Action Current | Loop < 5 mA ;Power <15mA |
| Output Capacity | 1A@DC30V |
| Input model setting | NC or NO input mode can be set by the jumper JP4 |
| Programming Method | Electronically addressed |
| Code Range | One addressable within 1~324 |
| Operating Temperature | -10℃~+55℃ |
| Relative Humidity | ≤95℃,non condensing |
| Material of Enclosure | ABS |
| Dimension | 86mm*86mm*41mm with base |
| Weight | About 148g with base |
Addressable smoke detector/ addressable heat detector/ gas detector/ sounder beacon/manual call point /Loop Lsolator
