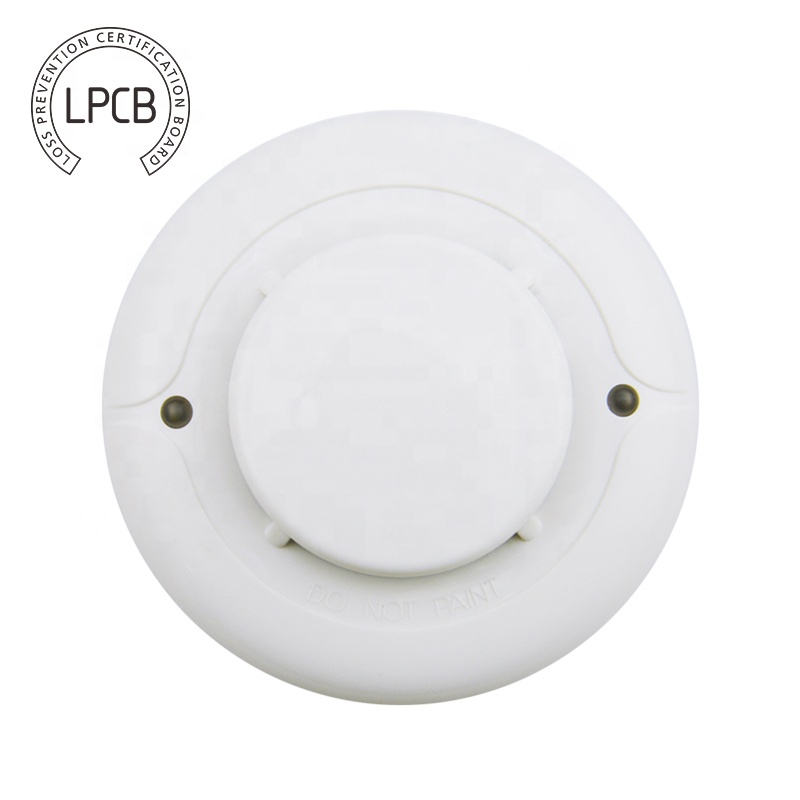

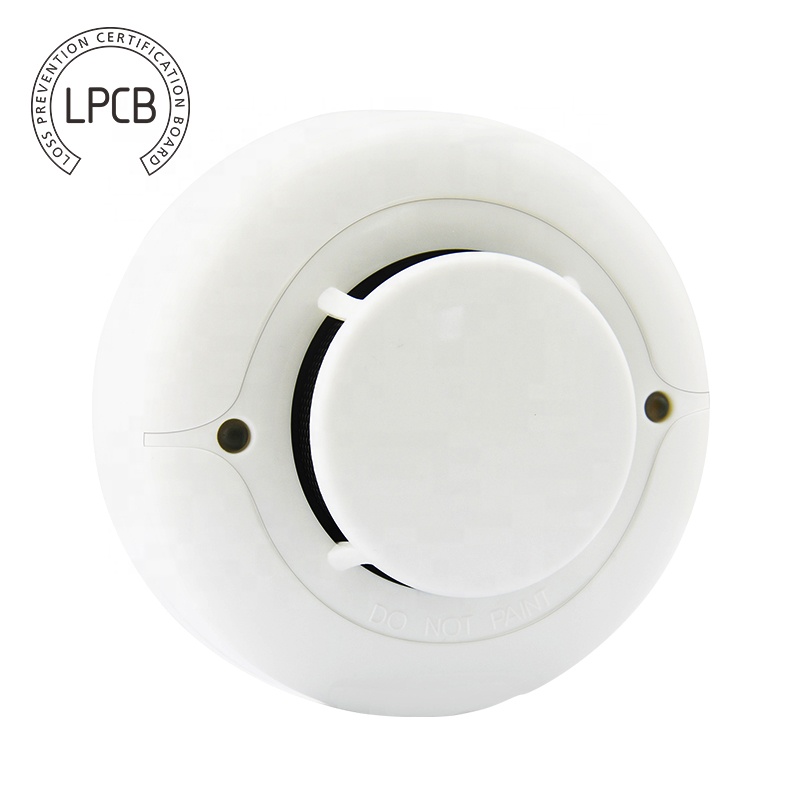

LPCB approval Photo-Electric Smoke Detector
Click on the image to view the original image
Product： views：3LPCB approval Photo-Electric Smoke Detector
Branch： Asenware
Type： 2 Wires
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
CHINA
Brand Name:
Asenware
Model Number:
AW-CSD381
Product name:
Smoke Detector
Usage:
Detect Smoke
Certificate:
LPCB
Color:
White
Type:
2 Wires
Operating voltage:
9V-28V DC
Installation:
Ceiling Mounted
Standby Current:
120uA
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton box
Port
ZHONGSHAN
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)5To be negotiated
Product Description

AW-CSD381 is conventional photo-electronic smoke detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

The conventional rate of rise of rise heat detector uses thermal component to detect the temperature changing in the environment. It can enable fire alam when the temperature difference achieved the setting rate of rise temperature value reach the setting fixed ualue. It has a stable and reliable working performance.

Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.

Product Feature
Operating Voltage Range:
9 to 28 VDC Non-polarized
Standby Current:
≤120uA@24VDC
Maximum Alarm Current(LED on):
≤15mA@24VDC  (1K Ohm current-limiting resistance)
Operating Humidity Range:
≤95%RH(40℃±2℃)RelativeHumidity,Non-condensing
Operating Temperature Range:
-10℃ to 50℃(14ºF to 122ºF)
Smoke Alarm Sensitivity:
0.1-0.15dB/m
Height:
48.2mm installed in Base
Diameter:
99.45mm
Standard Number ref:
EN 54-7:2000
EC certificate:
0832-CPR-F2071
Technical Parameter

AW-CSD381


Terminal 6: IN+(Zone Input+)
Terminal 5: IN-(Zone Input-)
Terminal 2: Out+(Zone Output+)
Terminal 5: Out-(Zone Output-)
Terminal 6: Remote Indicator+
Terminal 3: Remote Indicator-


FAQ

Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: one week working day
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.

Our Service

1.Professional and experienced R&D team can offer free technical support and project support.
2.Prompt reply all-around and all-weather.
3.OEM/ODM services
4.One year warranty and technical maintenance.
