Click on the image to view the original image
·Operating Voltage Range: 9 to 28 VDC Volts Non-polarized
·Standby Current: ≤120uA@24VDC
·Maximum Alarm Current(LED on): ≤15mA@24VDC(1K Ohm current-limiting resistance)
·Operating Humidity Range: ≤95%RH(40℃±2℃)RelativeHumidity,Non-condensing
·Operating Temperature Range: -10℃ to 50℃(14ºF to 122ºF)
·Fix Temperature Alarm: 57℃(135ºF)A2R
·Rate of rise Alarm: 7.1℃/5S A2R
·Height: 48.2mm installed in Base
·Diameter: 99.45mm
·Standard Number ref: EN 54-7:2000
AW-CTD382

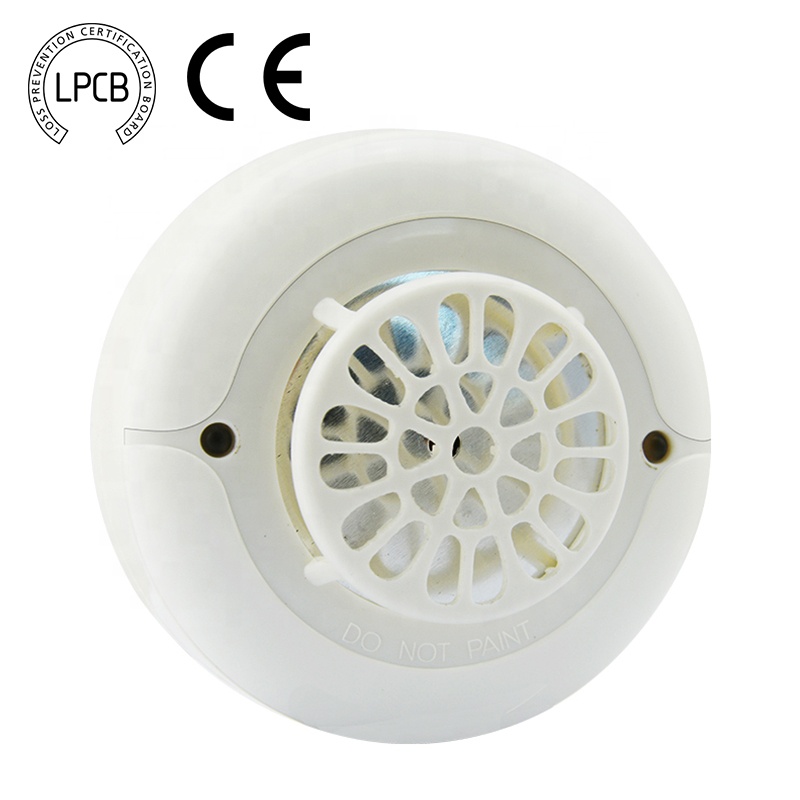

AW-CTD382 is conventional photo-electronic heat detector uses a stateof-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
The conventional rate of rise heat detector uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value. It can also enable fire alarm when the absolute temperature value reach the setting fixed value. It has a stable and reliable working performance.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until rest by panel

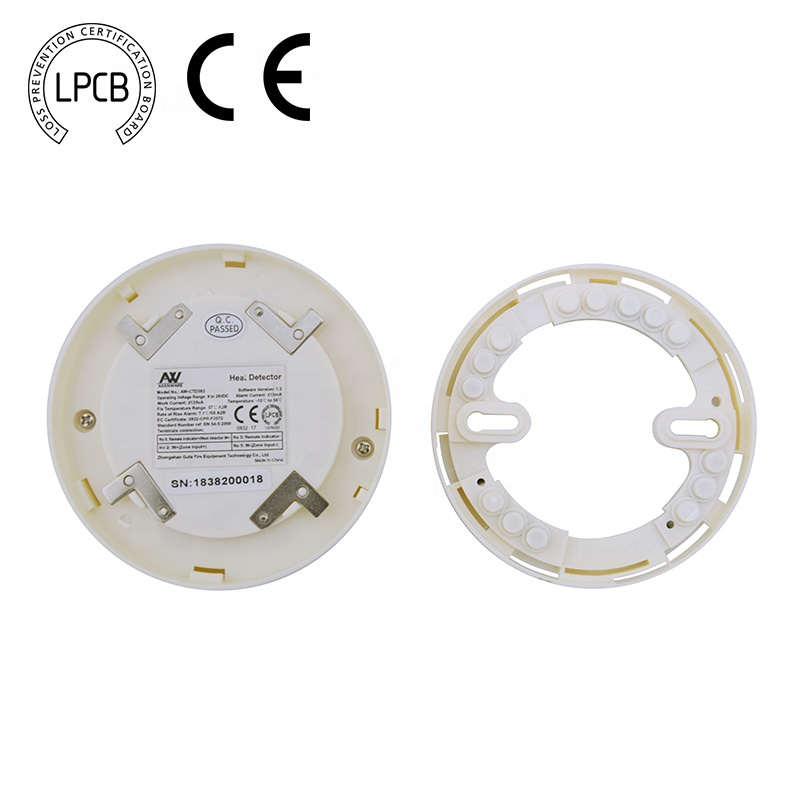

Terminal 6: IN+(Zone Input+)
Terminal 5: IN-(Zone Input-)
Terminal 2: Out+(Zone Output+)
Terminal 5: Out-(Zone Output-)
Terminal 6: Remote Indicator+
Terminal 3: Remote Indicator-
Company Information.
Asenware, professional manufacturer of fire alarm and fire suppression system since 2005.Our headquarter is in London,UK, with factory Shenzhen,China.
Our company"s products have passed CE certification, SASO certification, other international certification is also in the process. We keep our best service for our customers, and have 12 years of export experience with a technologically advanced team of engineers to design and install for overseas project.
1.OEM/ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need.
4.Two year warranty and technical maintenance
Q1:Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q2:What is the lead time?
A:Sample needs 1-3 days, mass product according to your quantity.
Q3:How do you ship the goods and how long does it take arrive?
A:We usually ship by DHL,UPS,FedEX or by Air. 3-5 days after payment received.
Q4:Do you guarantee for the products?
A:Yes,we offer one year guarantee for the products.
Q5:Do you offer OEM service?
A:Yes,we can design the products according to your request.
