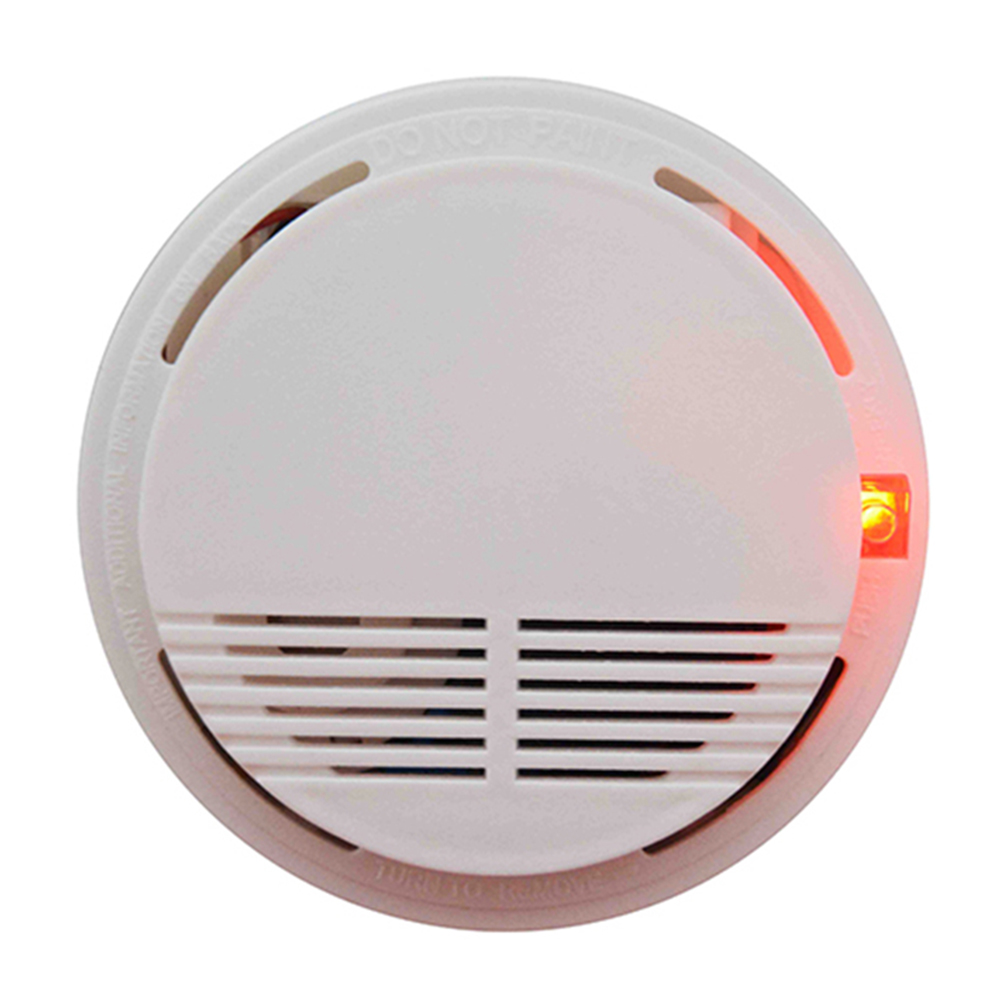

220VAC And Battery Operated Smoke Detector
Model: AW-SSD701-AB
Fire sensor :Photoelectric smoke chamber
Sensitivity: 1-2.5% /FT
Control mode :Software control
Connection :NO/NC relay
Operating voltage :220VAC+9V battery
Standby current :<25mA @AC220V, 10μA@DC9V
Alarm current :NO:<25mA@AC220V, <20mA@DC9V
Sounder level :>85dB/m at 10 feet far
Material :ABS
Work humidity :≤95% Relative humidity, non-condensing
Standalone Smoke Detector detector description.
AW-SSD601, AW-SSD602, AW-SSD603 and AW-SSD701 are photoelectric type, 9V battery operated, with sounder output. AW-SSD701-AB is dual power supply, 220VAC + 9V battery, and with a relay output.
1. This independent smoke detector not need to be connected to fire alarm panel. When it detect smoke in some range of concentration, it will send alarm signal by its buzzer.
2. Work performance is stable and reliable.
3. Easy to install and maintain.
4. 12 V Network or 9V Battery Independent / wireless three types (optional)
Diameter: 107 mm, height:35mm with base
Carton quantity1PCS/carton, 100pcs/box
Carton: 11×6×12cm,
Box: 67×41×23cm
Carton/Box weight
0.1 kg/Carton
14.3kg/Box
AW-FD602-UV
UV Flame Detector
AW-SSD701
Independent Smoke Detector
