Asenware AW-D316 LPCB approval conventional fire alarm strobe siren / Sounder Beacon
AW-D316 Conventional Sounder Beacon can give audible and visual alarms after being connected to a DC24V power supply and a bus loop. It can be used with a bus-type fire alarm control panel. After receiving a start command given by the fire alarm control panel following an accident, the Sounder Beacon will begin to work. At this moment, the Sounder Beacon will give a dazzling visual alarm signal and a harsh audible alarm signal ,to remind the persons on the scene of the accident , the fact that a fire has occurred on the
site ,quickly and necessity to take related evacuation measures, thus preventing the fire accident from becoming a major one.
The Sounder Beacon may be used to give audible alarms and visual alarms at the scenes of accidents.It is applicable to places like high-rise residential buildings, public places, hotels, amusement buildings,factories, shopping centers, hospitals, schools, office buildings and stock exchanges, and particularly to the places with a low visibility or the possibility of generation of smoke.
Product features:
Meet both EN54-3 and EN54-23
Designed with an upper cover and a lower cover and installed on an independent base, it can be installed,debugged and maintained conveniently.
uitable for wall and ceiling mount application
Providing 16 tones.
Highly efficient LED technology and specially designed lens
Light output synchronization.
Parameters:
Loop input | DC24V(18-28V),≤1mA(monitoring status),≤3mA(alarm status) | |
|
| |
Power input | DC24V(20-28V),≤4mA(monitoring status),≤130mA(alarm status) | |
|
| |
Power consumption | ≤3.2W@DC24V | |
|
| |
EN54-23 Coverage | C-3-8/W-2.4-6(coverage volume see the following figures) | |
|
| |
Flash Color and | White, 0.5Hz | |
Frequency | ||
| ||
|
| |
Light Output | Meets EN54-23 | |
Synchronization | ||
| ||
|
| |
Sound Level | See the following table”Sound Level Data” | |
|
| |
Ingress Protection | IP21C | |
Rating | ||
| ||
|
| |
Operating Temperature | -10℃ ~ +50℃ | |
|
| |
Relative Humidity | ≤95%, non condensing | |
|
| |
Material of Lens/Body | Flame retardant PC/ABS | |
|
| |
Dimension | 100mm×100.5mm( with the base) | |
|
| |
Mounting Hole Spacing | 45mm ~ 70mm | |
|
| |
Weight | About 270g (with the base) | |
|
| |
Loop input | DC24V(18-28V),≤1mA(monitoring status),≤3mA(alarm status) |
Related products:
1. OEM/ODM services.
2. Quality assurance and reliabilty.
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:

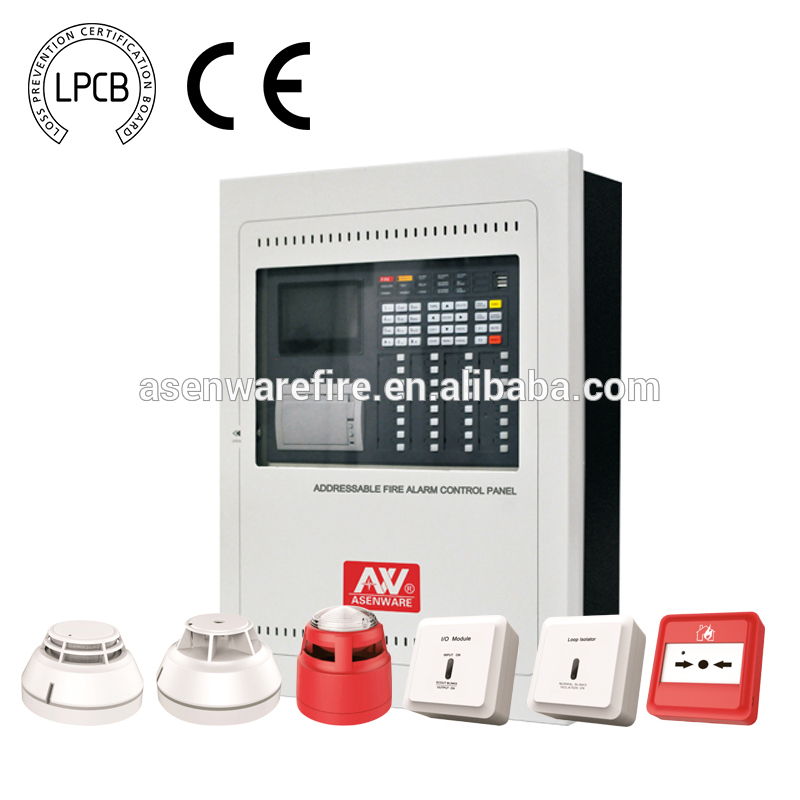

1. Addressable fire alarm system(FP100 series,2189,2100 series)
