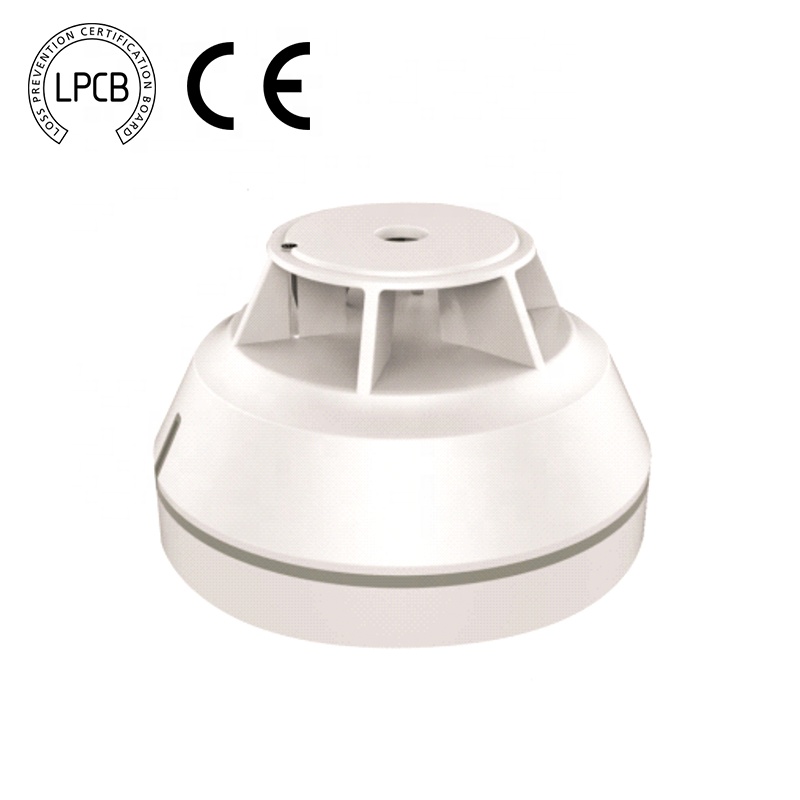

Addressable cigarette smoke detector control panel for fire alarm system
ASENWARE LPCB Approved Addressable fire alarm system 32 zone control panel
Introduction:

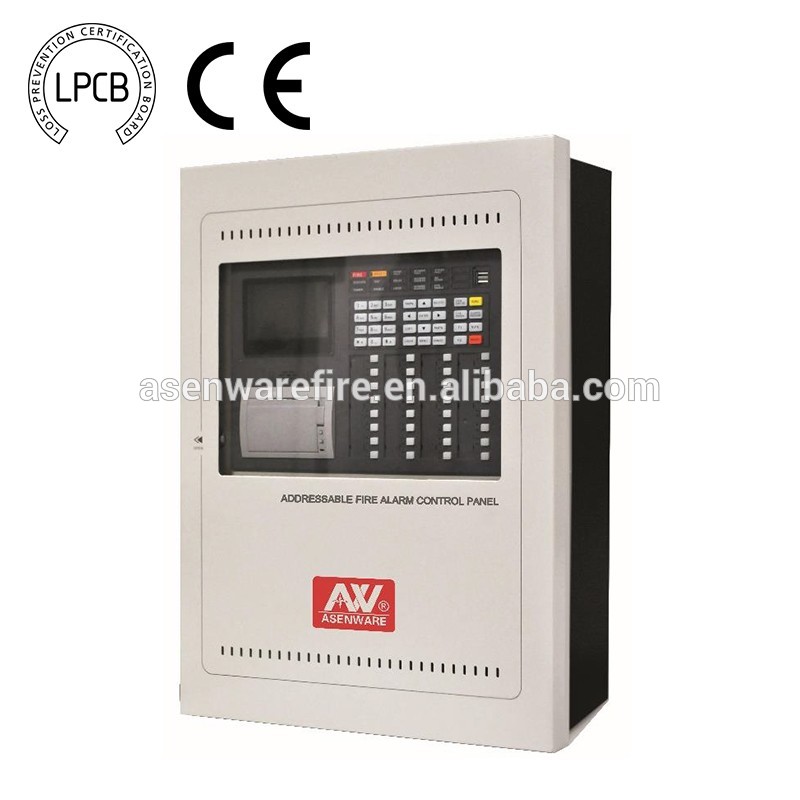

The purpose of the AW-FP300 Fire Alarm Control Panel (FACP) is to monitor input signals,
give indications and possibly activate outputs as programmed. It is designed to comply with
EN 54-2 with qualities of simple installation, operation and easy maintenance.
The AW-FP300 panel is an addressable fire detection panel with 1 loop of 324 addressable
points and expansion capabilities. It is compatible with other peripherals made by ASENWARE
with its own protocol.
Date Sheet
| Power supply | |
| Mains supply | 230VAC (-15%, +10%). 47 ~ 63Hz. Max current 0.8A |
| Mains fuse | T3.15AL250V |
| Operating voltage | 18.5 ~ 30VDC |
| Recommended mains cable | Screened or standard/black mains cable, cable size 0.75mm2 |
| Power rating | Imax.a=1.2A; Imax.b=2.6A; Imin=0.65A |
| Max. charging current | 1.2A |
| Max. battery supply current | 4A (when the Mains is disconnected) |
| Battery capacity, type and recommended model | Max. capacity 2×12V/17Ah; Min. capacity 2×12V/12Ah VRLA. PS-12170 for 17Ah (Power-sonic), PS12120 for 12Ah (Power-sonic) |
| Max. internal resistance of battery | 1.5Ω |
| Battery fuse | F8AL250V |
| Recommended battery cable | 14AWG |
| Quiescent current (full loaded) | < 0.4A |
1.OEM / ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical maintenance
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:
1. Addressable fire alarm system(FP100 series,2189,2100 series, LPCB FP300 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
7. Voice evacuation system
Packaging details:
1)PEE bag per unit
2)Outside Cartons
3)Strict&Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff,Asenware fire pump control equipment
