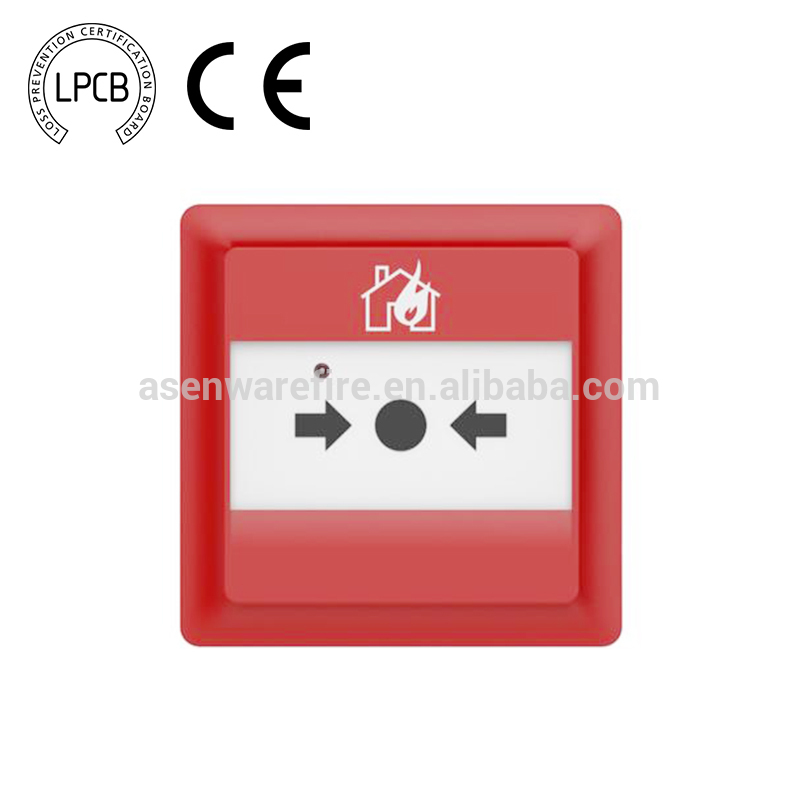

Asenware LPCB approval resettable addressable fire alarm manual call point
Introduction:
The AW-D305 Addressable manual call point ( hereinafter referred to AW-D305 Addressable) is mainly designed to be used with an intelligent two-bus control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual fire call points. When the manual fire call points is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit. The AW-D305 Addressable supports electronic coding, more suitable for engineering application convenient.
Features:
1. Semi-flush or surface mounting
2. Compatible with the latest EN standards
3. Lever reusable ( non-glass break )
4. LED indicator
5. Full electronic coding, through CODER-9001 encoder scene rewrite
| Addressable Manual Call Point | |
| AW-D305 | |
| Date Sheet | |
|
| |
Operating Voltage | Signal Loop 24V(18V~28V) | |
Power 24VDC(20VDC~28VDC) | ||
| ||
|
| |
Standby Current | Loop<0.8mA ; Power<2mA | |
|
| |
Action Current | Loop<5mA ; Power<15mA | |
|
| |
Output Capacity | 1A@DC30V | |
|
| |
Input Mode Setting | NC or NO input mode can be set by the jumper JP4. | |
|
| |
Programming Method | Electronically addressed | |
|
| |
Code Range | One address within 1~324. | |
|
| |
| Inspection indicator: l blink once about every 12 seconds in the inspection | |
Indicators | status or remain lit in the output status; | |
| Input indicator : remain lit in the feedback status. | |
|
| |
Operating Temperature | -10℃~+55℃ | |
|
| |
Relative Humidity | ≤95% , non-condensing | |
|
| |
Material of Enclosure | ABS | |
|
| |
Dimension (L×W×H) | 86mm×86mm×41mm | |
(with base) | ||
| ||
|
| |
Mounting Hole Distance | 60.5mm | |
|
| |
Weight | About 148g (with base) | |
|
| |
Operating Voltage | Signal Loop 24V(18V~28V) | |
Power 24VDC(20VDC~28VDC) | ||
| ||
|
| |
Certificate |
| |
|
|
Related products:
1. OEM/ODM services.
2. Quality assurance and reliabilty.
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:

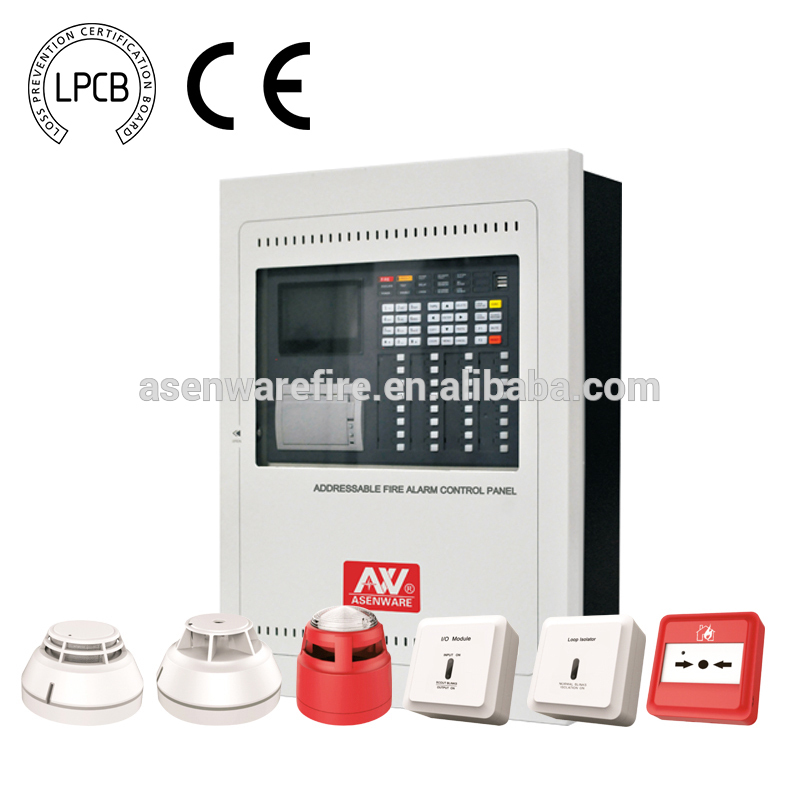

1. Addressable fire alarm system(FP100 series,2189,2100 series)
