Factory price LPCB 24V fire alarm system addressable heat detector
Introduction:
AW-D302 Addressable Heat Detector (Detector hereunder) is a mated product of the AW-FP300 fire alarm control panel. It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding. The detector realizes real-time acquisition of the in situ temperature data and sends back the data to a fire alarm control panel. It can also receive and execute the control commands given by a fire alarm control panel. When in a routing inspection, the detector indicator will blink. When there is a fire in the monitored area and the temperature has reached the alarm threshold, the fire alarm control panel will confirm a fire
alarm according to the received message sent from the detector, and the detector indicator will light at the same time to indicate a fire alarm.
The detector is suitable for such industrial and civil buildings that have a great deal of heat when fire takes place, such as kitchens, boiler rooms, generator rooms, drying workshops and smoking rooms and is not suitable for places with a great deal of smoke but little heat
Features:
1) It can realize electronic coding and rewrite the address via coder in situ.
2) Within a single-chip microcomputer, it can realize real-time data acquisition and processing, realize a curve tracing for the field situation.
3) It has a temperature compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
4) Non-polarity, two-bus connection that ensures convenient installation and maintenance.
5)Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
6)Built-in remote indicator output terminal, drive remote indicator lit when fire alarm
Parameters:
Operating Voltage | Loop 24V(18V~28V) |
|
|
Standby Current | <0.3mA |
|
|
Alarm Current | <1.5mA (without remote indicator) |
| <3.5mA (with remote indicator) |
|
|
Class | A2 |
|
|
Fire LED | Red, Flash in polling, and illuminate in alarming. |
|
|
Remote indicator output | Polarity-sensitive output, directly connect to remote indicator (built in 10k |
| resistor in series, max. output current is 2mA); The red indicator will blink in |
| the monitoring status or remain lit in the alarm status. |
|
|
Programming | Electronically addressed. |
|
|
Programming Range | Occupying one address within 1~324. |
|
|
Wiring | Loop: two wire, polarity-insensitive |
|
|
Environmental Temperature | -10℃~+50℃ |
|
|
Relative Humidity | ≤95%, non-condensing |
|
|
Material of Enclosure | ABS |
|
|
Dimension | Diameter: 100mm |
| Height: 60mm(with the base) |
|
|
Mounting Hole Distance | 44.5mm~64.3mm |
|
|
Weight | About 115g(with the base) |

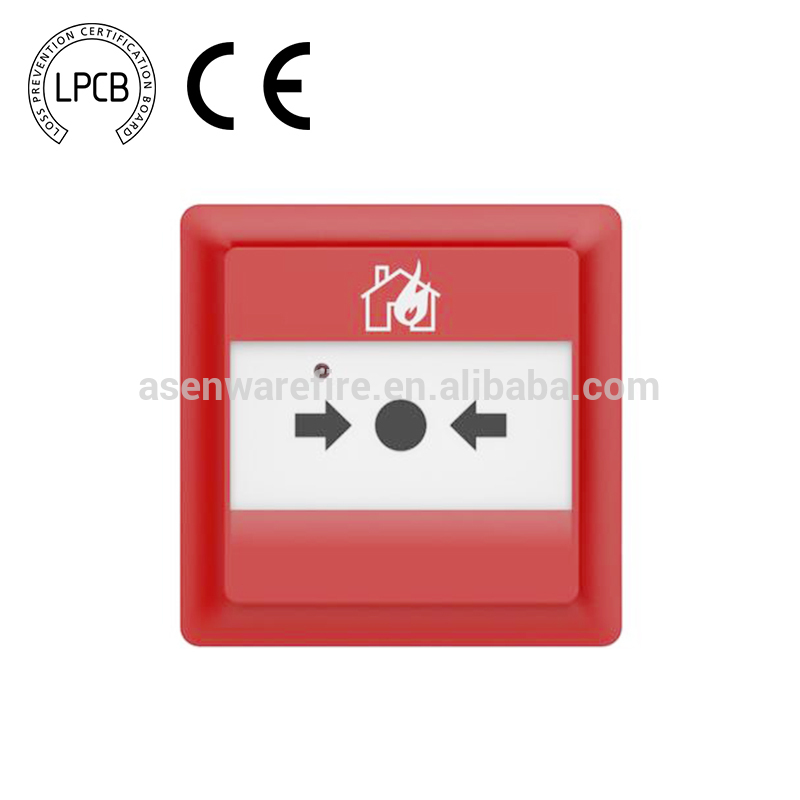

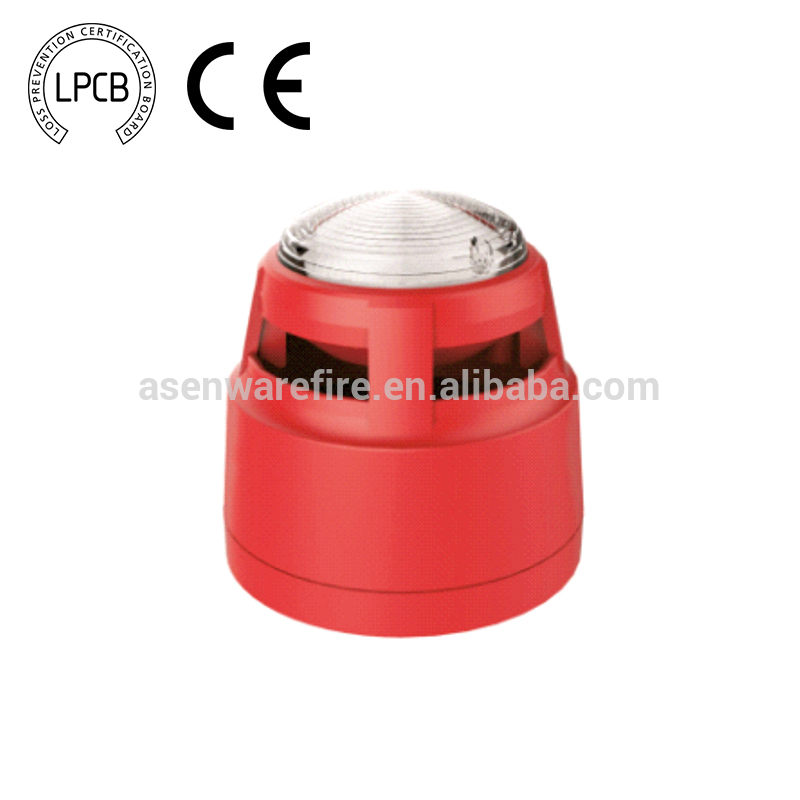

Related products:
1. OEM/ODM services.
2. Quality assurance and reliabilty.
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
