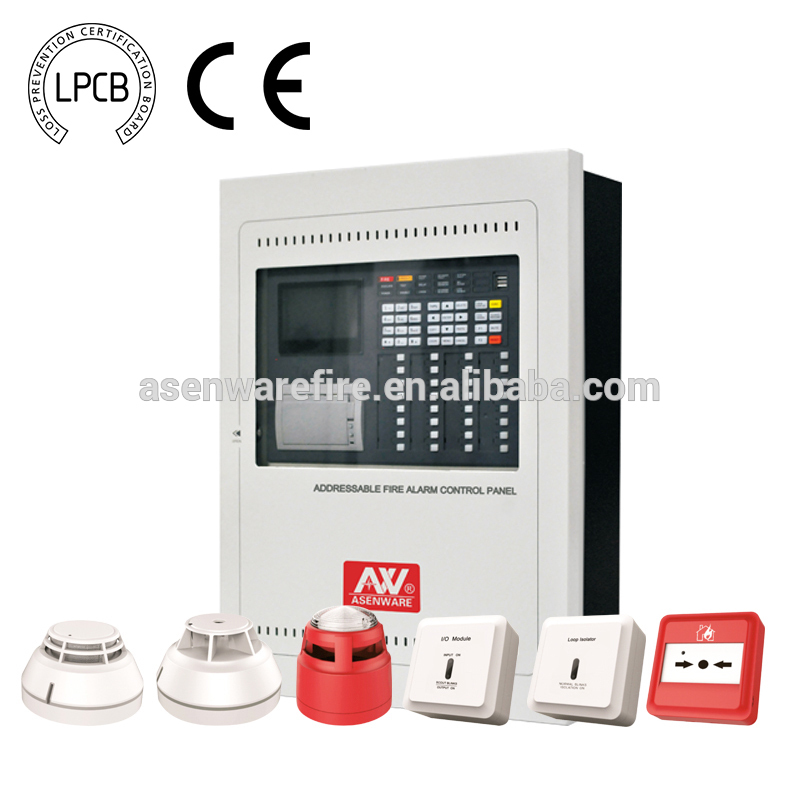

Friendly use analog LPCB approved 1 loop intelligent fire alarm panel
Introduction:
The purpose of the AW-FP300 Fire Alarm Control Panel (FACP) is to monitor input signals,
give indications and possibly activate outputs as programmed. It is designed to comply with
EN 54-2 with qualities of simple installation, operation and easy maintenance.
The AW-FP300 panel is an addressable fire detection panel with 1 loop of 324 addressable
points and expansion capabilities. It is compatible with other peripherals made by ASENWARE
with its own protocol.
Date Sheet
| Power supply | |
| Mains supply | 230VAC (-15%, +10%). 47 ~ 63Hz. Max current 0.8A |
| Mains fuse | T3.15AL250V |
| Operating voltage | 18.5 ~ 30VDC |
| Recommended mains cable | Screened or standard/black mains cable, cable size 0.75mm2 |
| Power rating | Imax.a=1.2A; Imax.b=2.6A; Imin=0.65A |
| Max. charging current | 1.2A |
| Max. battery supply current | 4A (when the Mains is disconnected) |
| Battery capacity, type and recommended model | Max. capacity 2×12V/17Ah; Min. capacity 2×12V/12Ah VRLA. PS-12170 for 17Ah (Power-sonic), PS12120 for 12Ah (Power-sonic) |
| Max. internal resistance of battery | 1.5Ω |
| Battery fuse | F8AL250V |
| Recommended battery cable | 14AWG |
| Quiescent current (full loaded) | < 0.4A |
1. OEM/ODM services.
2. Quality assurance and reliabilty.
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
addressable fire alarm panel,fire alarm addressable panel,addressable fire alarm
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day
bulk quality: four weeks
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
