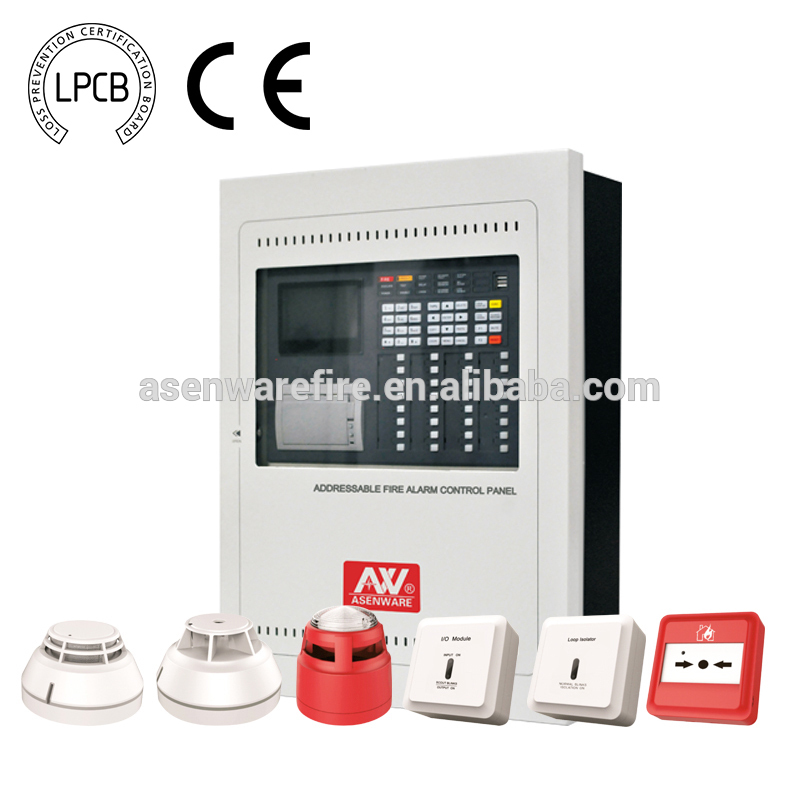

Asenware LPCB approval 24V Addressable fire alarm system input output module
Click on the image to view the original image
Product: views:3Asenware LPCB approval 24V Addressable fire alarm system input output module
Branch: ASENWARE
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ASENWARE
Model Number:
AW-D319
Operating Voltage:
Signal Loop 24V(18V~28V) Power 24VDC(20VDC~28VDC)
Standby Current:
Loop<0.8mA ; Power<2mA
Action Current:
Loop<5mA ; Power<15mA
Input Mode Setting:
NC or NO input mode can be set by the jumper JP4.
Programming Method:
Electronically addressed
Certificate:
LPCB EN54
Warranty:
1year
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Safety Export Package / Carton (Box + Foam)
Port
Zhongshan, Shenzhen, HK
Product Description

 LPCB Certification Addressable Fire Alarm System Input Output Modul

Introduction:
The AW-D319 Addressable I/O Module (AW-D319 for short) is used with AW-FP300 fire alarm control panel. It is mainly used to realize an output control for fire linkage equipment (such as smoke dampers, blow valves and fire dampers) and receive the feedback signals of the fire linkage equipment so that a judgment on whether or not the fire linkage equipment is operating normally can be done.

Features:

1. Executive standard: EN54-18
2. Operation voltage: loop DC24V (polarity-insensitive);power DC24V(polarity-insensitive)
3. Quiescent current: loop current<0.8mA; power current<2mA
4. Action current: loop current<5mA; power current<15mA
5. Capacity of the output control contact: 1A@DC30V
6. Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in
the output status; the input indicator will remain lit in the feedback status.
7. Operating environment: Temperature: -10ºC ~ 55ºC; RH: ≤95% (40 ºC±2ºC, without condensation)
8. External dimensions: 86×86×41(mm,With base)
9. Weight: about 148g(With base)

Parameters:

Operating Voltage

Signal Loop 24V(18V~28V)



Power 24VDC(20VDC~28VDC)













Standby Current

Loop<0.8mA ; Power<2mA









Action Current

Loop<5mA ; Power<15mA









Output Capacity

1A@DC30V









Input Mode Setting

NC or NO input mode can be set by the jumper JP4.









Programming Method

Electronically addressed









Code Range

One address within 1~324.











Inspection indicator: l blink once about every 12 seconds in the inspection status or remain lit



Indicators

in the output status;





Input indicator : remain lit in the feedback status.









Operating Temperature

-10~+55









Relative Humidity

95% , non-condensing









Material of Enclosure

ABS









Dimension (L×W×H)

86mm×86mm×41mm



(with base)













Mounting Hole Distance

60.5mm









Weight

About 148g (with base)
